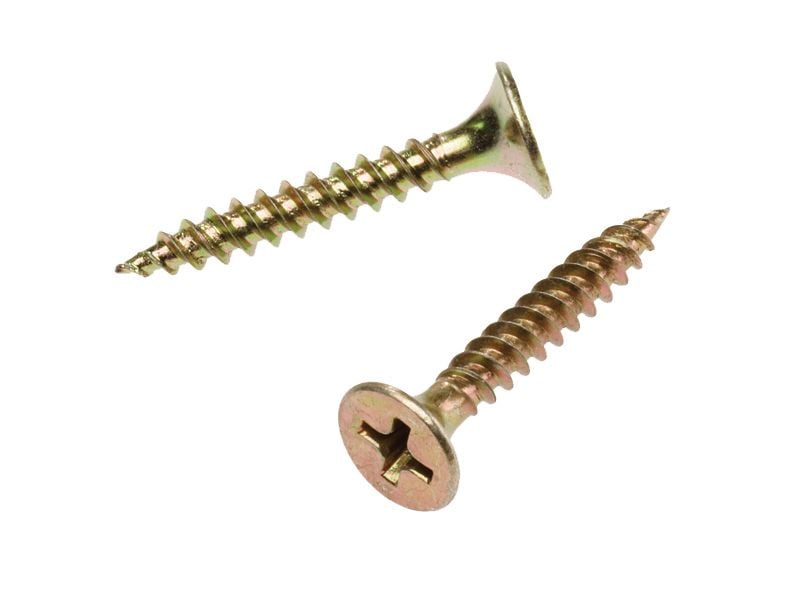

Bugle Hd Fine Thread Needle Point Screws

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Bugle Hd Fine Thread Needle Point Screws

SKU 3A.007

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
6-18 x 20mm Needle Point Fine Thread Screws Bugle Head ZY From $16.10
6-18 x 25mm Needle Point Fine Thread Screws Bugle Head ZY From $16.50
6-18 x 30mm Needle Point Fine Thread Screws Bugle Head ZY From $22.15
6-18 x 35mm Needle Point Fine Thread Screws Bugle Head ZY From $31.65
6-18 x 40mm Needle Point Fine Thread Screws Bugle Head ZY From $35.25
7-16 x 20mm Needle Point Fine Thread Screws Bugle Head ZY From $24.10
7-15 x 25mm Needle Point Fine Thread Screws Bugle Head ZY From $24.95
7-15 x 30mm Needle Point Fine Thread Screws Bugle Head ZY From $25.45
7-16 x 40mm Needle Point Fine Thread Screws Bugle Head ZY From $33.25
7-15 x 45mm Needle Point Fine Thread Screws Bugle Head ZY From $37.30
7-15 x 50mm Needle Point Fine Thread Screws Bugle Head ZY From $48.70
8-15 x 50mm Needle Point Fine Thread Screws Bugle Head ZY From $69.05
8-15 x 65mm Needle Point Fine Thread Screws Bugle Head ZY From $37.20
8-15 x 75mm Needle Point Fine Thread Screws Bugle Head ZY From $46.28
10-15 x 100mm Needle Point Fine Thread Screws Bugle Head ZY From $84.83

Build A Quote?

Store Item

SKU:

Description

INSTALLATION

Drill Capacity: Suitable for use without pre-drilling in light gauge steel up to 0.6mm, timber and plasterboard. Pre-drilling may be necessary in Hardwood.
Driver Type: Philips P2
Installation Speed: 2300 – 2500 RPM Max Drill Speed

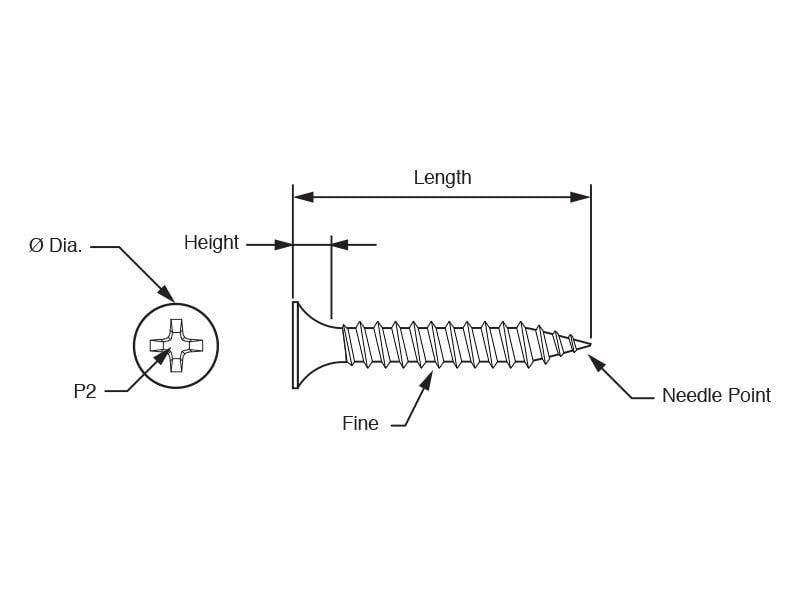

PHYSICAL CHARACTERISTICS

Head Type: Bugle Head
Point Type: Needle
Material: Carbon Steel
Finish: Zinc - Yellow
Head Dia: 6g - 8.2mm, 7g, 8g &10g - 8.4mm
Head Height: 4.5mm

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	SHIPS IN 1 - 2 DAYS
Coating & Plating	Zinc Yellow
Material Grade	Carbon Steel
Head Type	Bugle
Driver Type	Philips
Diameter / Gauge	6g, 7g, 8g, 10g
Point Type	Needle Point
Thread Type	Fine

Technical Information

SKU	Gauge x Length	Coating	Driver Bit	Gauge x Length
3NBFY06020	6-18 x 20mm	Zinc Yellow	Ph2	6-18 x 20mm
3NBFY06025	6-18 x 25mm	Zinc Yellow	Ph2	6-18 x 25mm
3NBFY06030	6-18 x 30mm	Zinc Yellow	Ph2	6-18 x 30mm
3NBFY06035	6-18 x 35mm	Zinc Yellow	Ph2	6-18 x 35mm
3NBFY06040	6-18 x 40mm	Zinc Yellow	Ph2	6-18 x 40mm
3NBFY07020	7-16 x 20mm	Zinc Yellow	Ph2	7-16 x 20mm
3NBFY07025	7-15 x 25mm	Zinc Yellow	Ph2	7-15 x 25mm
3NBFY07030	7-15 x 30mm	Zinc Yellow	Ph2	7-15 x 30mm
3NBFY07040	7-16 x 40mm	Zinc Yellow	Ph2	7-16 x 40mm
3NBFY07045	7-15 x 45mm	Zinc Yellow	Ph2	7-15 x 45mm
3NBFY07050	7-15 x 50mm	Zinc Yellow	Ph2	7-15 x 50mm
3NBFY08050	8-15 x 50mm	Zinc Yellow	Ph2	8-15 x 50mm
3NBFY08065	8-15 x 65mm	Zinc Yellow	Ph2	8-15 x 65mm
3NBFY08075	8-15 x 75mm	Zinc Yellow	Ph2	8-15 x 75mm
3NBFY10100	10-15 x 100mm	Zinc Yellow	Ph2	10-15 x 100mm
