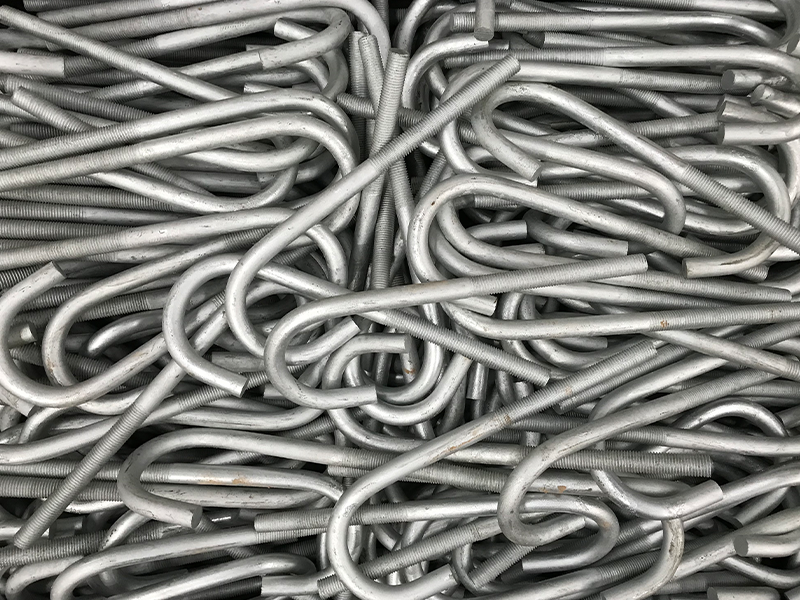

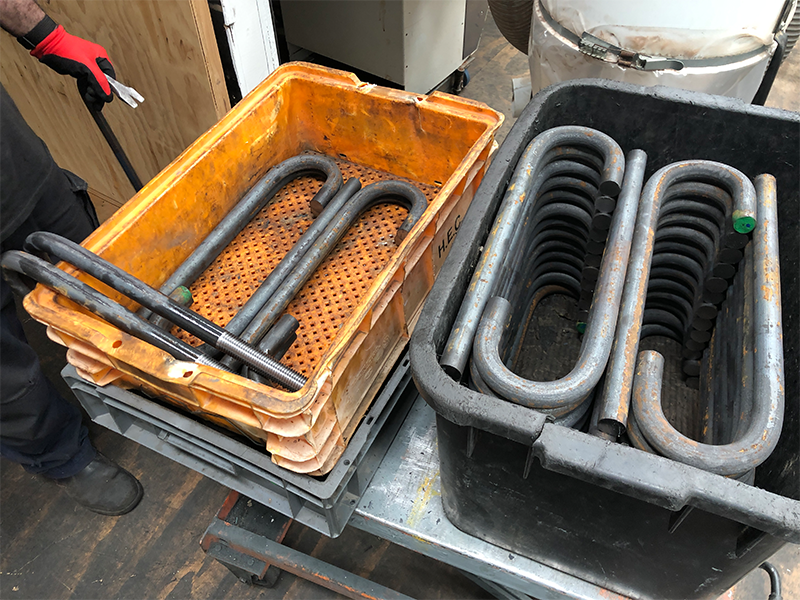

Bent Anchor J Bolts – Round Hook

J-bolts or round hook have a round bend commonly used in concrete as a hold bolt anchor or as part of hold down bolt cage configuration.

Round u-bolts custom manufactured from M12 to M36 in diameter to any specification. Provided usually in hot dipped galvanised finish but also can be supplied in plain steel or made from 304 and 316 stainless steel upon request.

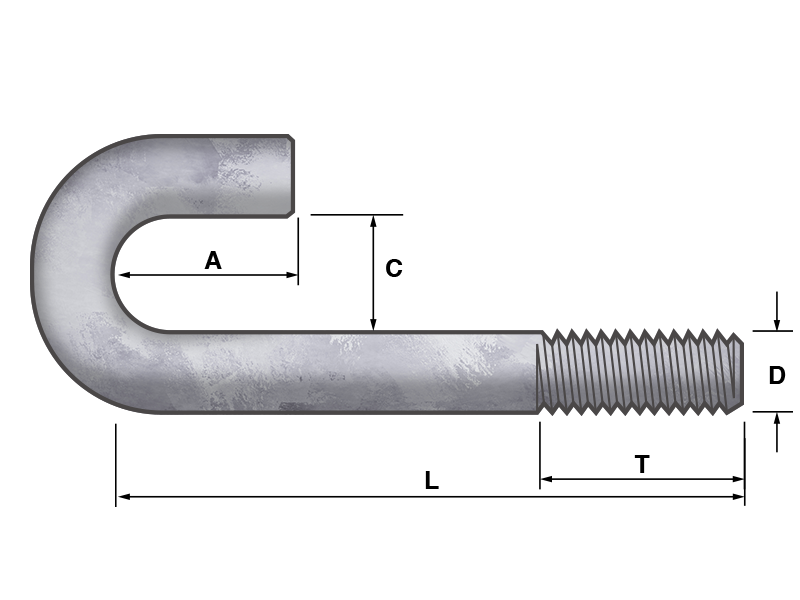

Typical dimension: Diameter (D) x Length (L) x Hook Width (C) x Hook Length (A) x Thread (T)

Compatible nuts and washers can also be specified.

Send us your specs download the RFQ sheet from the tab below.
