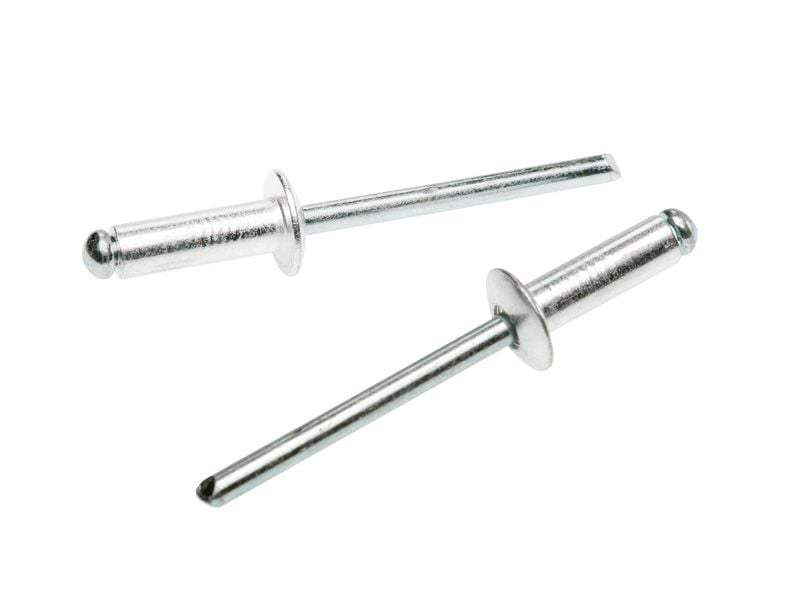

Aluminium Dome Head Rivet A-S
Aluminium Dome Head Rivet A-S

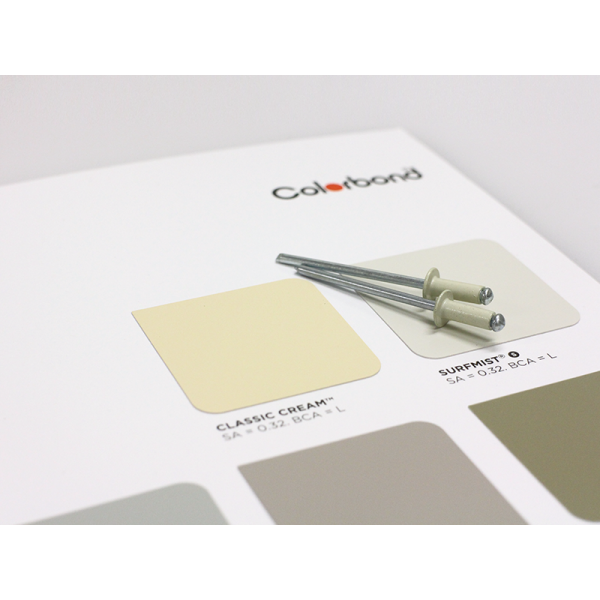

These general purpose are a 5050 Aluminium grade alloy rivet, with a zinc plated steel mandrel, to suit those applications where a higher tensile product is not required. This range is also available in the full Colorbond colour range in sizes 4-3 and 4-4.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Aluminium |
| Head Type | Dome |
Technical Information
| SKU | Dia x Length | Material | Grip Range (mm) | Drill Dia. | Dia x Length |
|---|---|---|---|---|---|
| 1080.4010000 | (4-1) 3.2mm (1/8”) x 4.8mm | A-S | 0.5-1.6mm | 3.3mm (no.30) | (4-1) 3.2mm (1/8") x 4.8mm |
| 1080.4020000 | (4-2) 3.2mm (1/8”) x 6.4mm | A-S | 1.6-3.2mm | 3.3mm (no.30) | (4-2) 3.2mm (1/8”) x 6.4mm |
| 1080.4030000 | (4-3) 3.2mm (1/8”) x 8.0mm | A-S | 3.2-4.8mm | 3.3mm (no.30) | (4-3) 3.2mm (1/8”) x 8.0mm |
| 1080.4040000 | (4-4) 3.2mm (1/8”) x 9.6mm | A-S | 4.8-6.4mm | 3.3mm (no.30) | (4-4) 3.2mm (1/8”) x 9.6mm |
| 1080.4060000 | (4-6) 3.2mm (1/8”) x 12.7mm | A-S | 7.9-9.5mm | 3.3mm (no.30) | (4-6) 3.2mm (1/8”) x 12.7mm |
| 1080.4080000 | (4-8) 3.2mm (1/8”) x 16.1mm | A-S | 9.5-12.7mm | 3.3mm (no.30) | (4-8) 3.2mm (1/8”) x 16.1mm |
| 1080.4100000 | (4-10) 3.2mm (1/8”) x 19.1mm | A-S | 12.7-15.9mm | 3.3mm (no.30) | (4-10) 3.2mm (1/8”) x 19.1mm |
| 1080.4120000 | (4-12) 3.2mm (1/8”) x 25.0mm | A-S | 15.9-19.1mm | 3.3mm (no.30) | (4-12) 3.2mm (1/8”) x 25.0mm |
| 1080.5020000 | (5-2) 4.0mm (5/32”) x 7.0mm | A-S | 1.6-3.2mm | 4.1mm (no.20) | (5-2) 4.0mm (5/32”) x 7.0mm |
| 1080.5040000 | (5-4) 4.0mm (5/32”) x 10.0mm | A-S | 4.8-6.4mm | 4.1mm (no.20) | (5-4) 4.0mm (5/32”) x 10.0mm |
| 1080.5050000 | (5-5) 4.0mm (5/32”) x 11.4mm | A-S | 6.4-7.9mm | 4.1mm (no.20) | (5-5) 4.0mm (5/32”) x 11.4mm |
| 1080.5060000 | (5-6) 4.0mm (5/32”) x 13.0mm | A-S | 7.9-9.5mm | 4.1mm (no.20) | (5-6) 4.0mm (5/32”) x 13.0mm |
| 1080.5080000 | (5-8) 4.0mm (5/32”) x 16.5mm | A-S | 9.5-12.7mm | 4.1mm (no.20) | (5-8) 4.0mm (5/32”) x 16.5mm |
| 1080.5100000 | (5-10) 4.0mm (5/32”) x 19.5mm | A-S | 12.7-15.9mm | 4.1mm (no.20) | (5-10) 4.0mm (5/32”) x 19.5mm |
| 1080.5120000 | (5-12) 4.0mm (5/32”) x 24.0mm | A-S | 15.9-19.1mm | 4.1mm (no.20) | (5-12) 4.0mm (5/32”) x 24.0mm |
| 1080.6020000 | (6-2) 4.8mm (3/16”) x 7.5mm | A-S | 1.6-3.2mm | 4.9mm (no.11) | (6-2) 4.8mm (3/16”) x 7.5mm |
| 1080.6030000 | (6-3) 4.8mm (3/16”) x 9.6mm | A-S | 3.2-4.8mm | 4.9mm (no.11) | (6-3) 4.8mm (3/16”) x 9.6mm |
| 1080.6040000 | (6-4) 4.8mm (3/16”) x 11.0mm | A-S | 4.8-6.4mm | 4.9mm (no.11) | (6-4) 4.8mm (3/16”) x 11.0mm |
| 1080.6050000 | (6-5) 4.8mm (3/16”) x 12.7mm | A-S | 6.4-7.9mm | 4.9mm (no.11) | (6-5) 4.8mm (3/16”) x 12.7mm |
| 1080.6060000 | (6-6) 4.8mm (3/16”) x 14.5mm | A-S | 7.9-9.5mm | 4.9mm (no.11) | (6-6) 4.8mm (3/16”) x 14.5mm |
| 1080.6080000 | (6-8) 4.8mm (3/16”) x 17.5mm | A-S | 9.5-12.7mm | 4.9mm (no.11) | (6-8) 4.8mm (3/16”) x 17.5mm |
| 1080.6100000 | (6-10) 4.8mm (3/16”) x 20.4mm | A-S | 12.7-15.9mm | 4.9mm (no.11) | (6-10) 4.8mm (3/16”) x 20.4mm |
| 1080.6120000 | (6-12) 4.8mm (3/16”) x 24.9mm | A-S | 15.9-19.1mm | 4.9mm (no.11) | (6-12) 4.8mm (3/16”) x 24.9mm |
| 1080.6140000 | (6-14) 4.8mm (3/16”) x 27.4mm | A-S | 19.1-22.2mm | 4.9mm (no.11) | (6-14) 4.8mm (3/16”) x 27.4mm |
| 1080.6160000 | (6-16) 4.8mm (3/16”) x 31.0mm | A-S | 22.2-25.4mm | 4.9mm (no.11) | (6-16) 4.8mm (3/16”) x 31.0mm |
| 1080.6200000 | (6-20) 4.8mm (3/16”) x 38.0mm | A-S | 25.4-31.8mm | 4.9mm (no.11) | (6-20) 4.8mm (3/16”) x 38.0mm |
