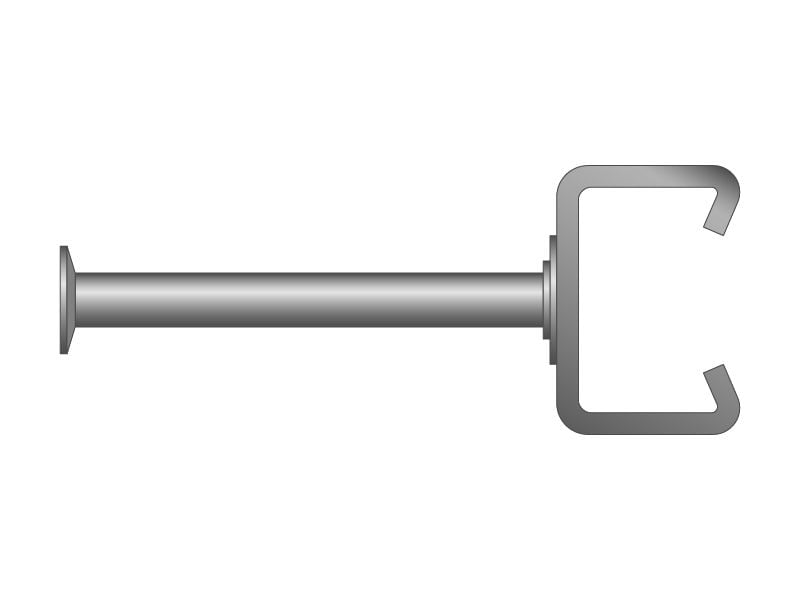

NexCast™ AC-S 72/49 Cast-In Anchor Channel

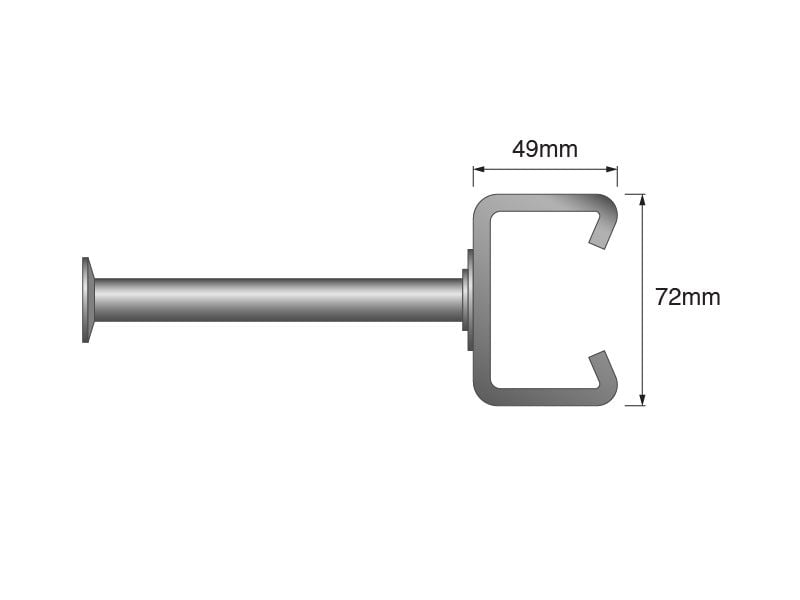

AC-S 72/49 Cold-Rolled Cast-In Anchor Channel, 316 Stainless
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2021, Cyclic Loads |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information

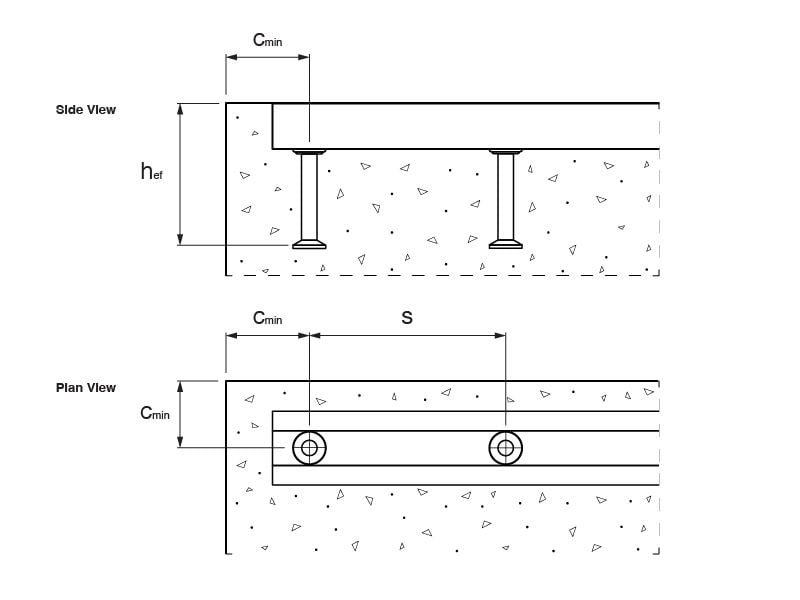

| SKU | Profile, Length, Anchors | Effective Depth, href | Anchor Spacing, S | Edge Distance, Cmin |
|---|---|---|---|---|
| 2844.7202020 | AC-S 72/49 200mm, 2 Anchors | 179mm | 130mm | 150mm |
| 2844.7202025 | AC-S 72/49 250mm, 2 Anchors | 179mm | 180mm | 150mm |
| 2844.7202030 | AC-S 72/49 300mm, 2 Anchors | 179mm | 230mm | 150mm |
| 2844.7202035 | AC-S 72/49 350mm, 2 Anchors | 179mm | 280mm | 150mm |
| 2844.7203045 | AC-S 72/49 450mm, 3 Anchors | 179mm | 190mm | 150mm |
| 2844.7203065 | AC-S 72/49 650mm, 3 Anchors | 179mm | 290mm | 150mm |
| 2844.7204097 | AC-S 72/49 970mm, 4 Anchors | 179mm | 300mm | 150mm |
