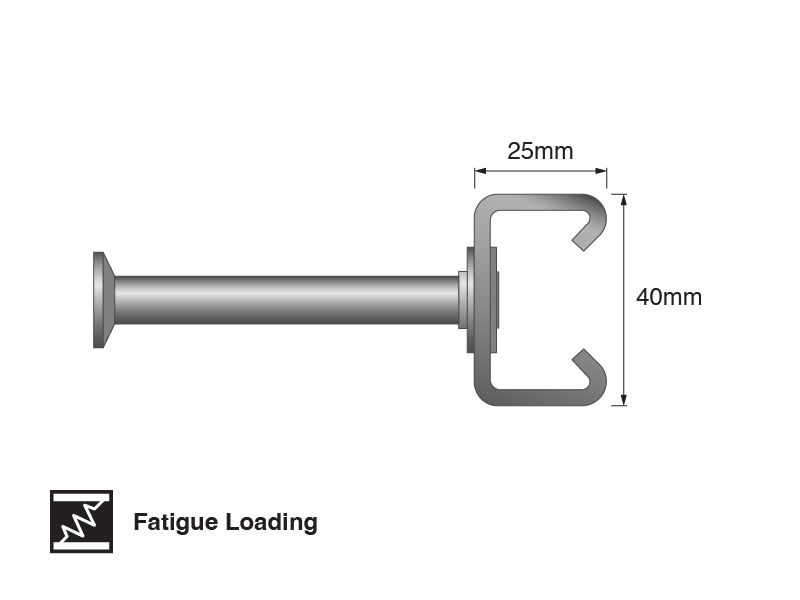

NexCast™ AC-S 40/26P Powered Cast-In Anchor Channel 316 Stainless Steel
AC-S 40/26P Powered Cast-In Anchor Channel, 316 Stainless
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2021, Cyclic Loads, Dynamic Loads |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information

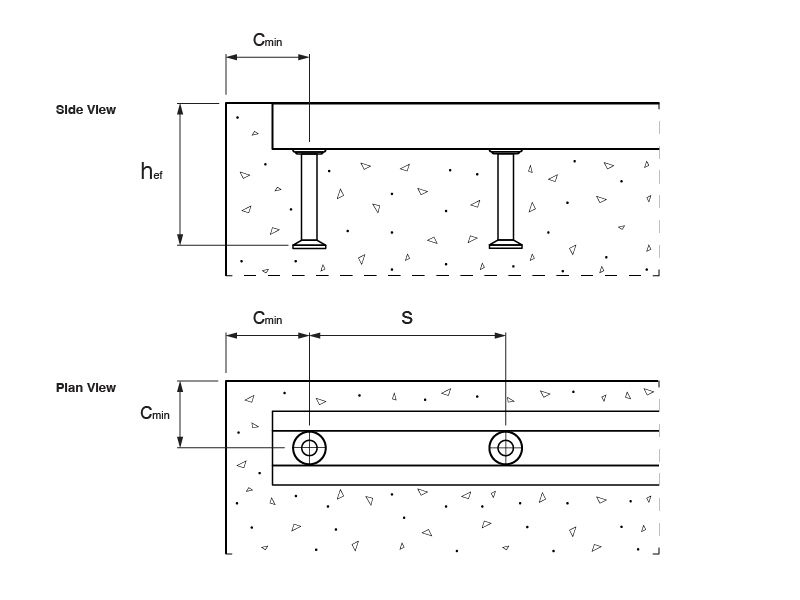

| SKU | Profile, Length, Anchors | Effective Depth, href | Anchor Spacing, S | Edge Distance, Cmin |
|---|---|---|---|---|
| 2845.4002015 | AC-S 40/26P 150mm, 2 Anchors | 94mm | 100mm | 50mm |
| 2845.4002020 | AC-S 40/26P 200mm, 2 Anchors | 94mm | 150mm | 50mm |
| 2845.4002025 | AC-S 40/26P 250mm, 2 Anchors | 94mm | 200mm | 50mm |
| 2845.4002030 | AC-S 40/26P 300mm, 2 Anchors | 94mm | 250mm | 50mm |
| 2845.4003035 | AC-S 40/26P 350mm, 3 Anchors | 94mm | 150mm | 50mm |
| 2845.4003040 | AC-S 40/26P 400mm, 3 Anchors | 94mm | 175mm | 50mm |
| 2845.4003055 | AC-S 40/26P 550mm, 3 Anchors | 94mm | 250mm | 50mm |
| 2845.4004080 | AC-S 40/26P 800mm, 4 Anchors | 94mm | 250mm | 50mm |
| 2845.4005105 | AC-S 40/26P 1050mm, 5 Anchors | 94mm | 250mm | 50mm |
| 2845.4013305 | AC-S 40/26P 3050mm, 13 Anchors | 94mm | 250mm | 50mm |
| 2845.4025605 | AC-S 40/26P 6050mm, 25 Anchors | 94mm | 250mm | 50mm |
