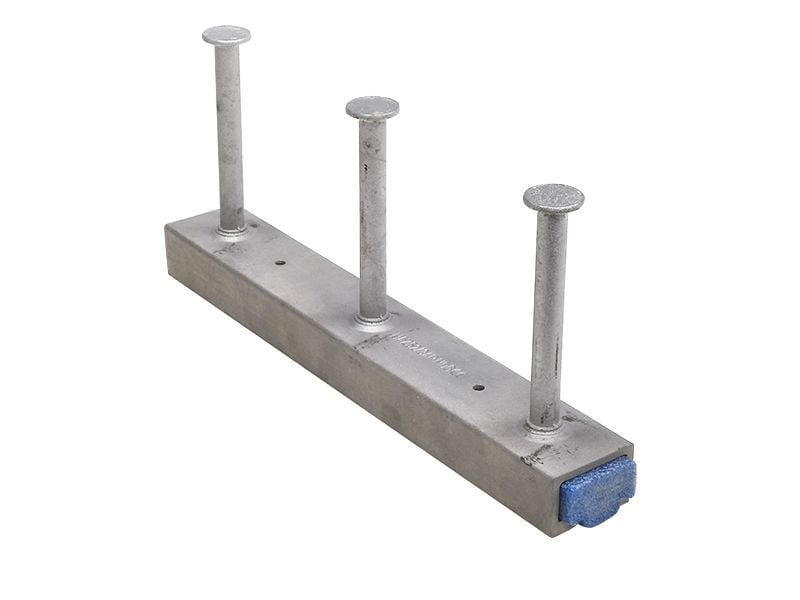

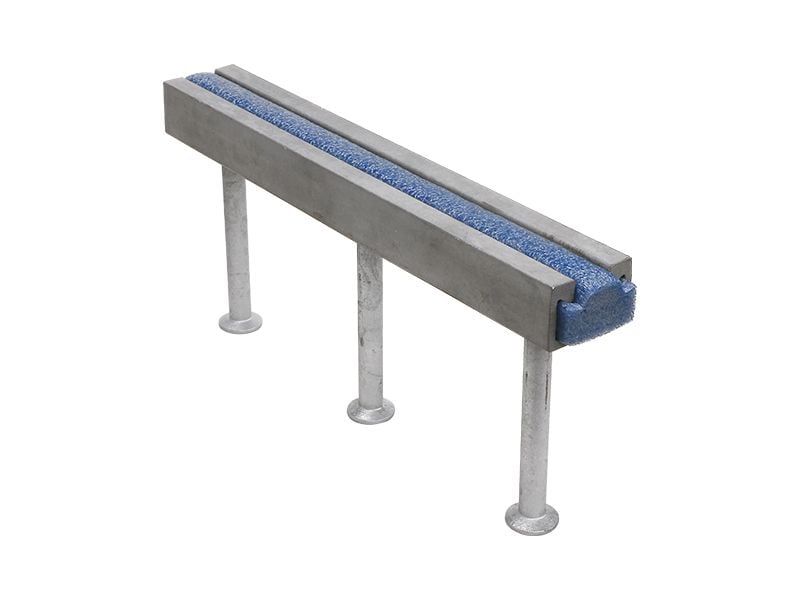

NexCast™ AC-G 52/34P Powered Cast-In Anchor Channel | HDG
AC-G 52/34P Powered Cast-In Anchor Channel, HDG
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Approvals & Documents | ETA Certification |

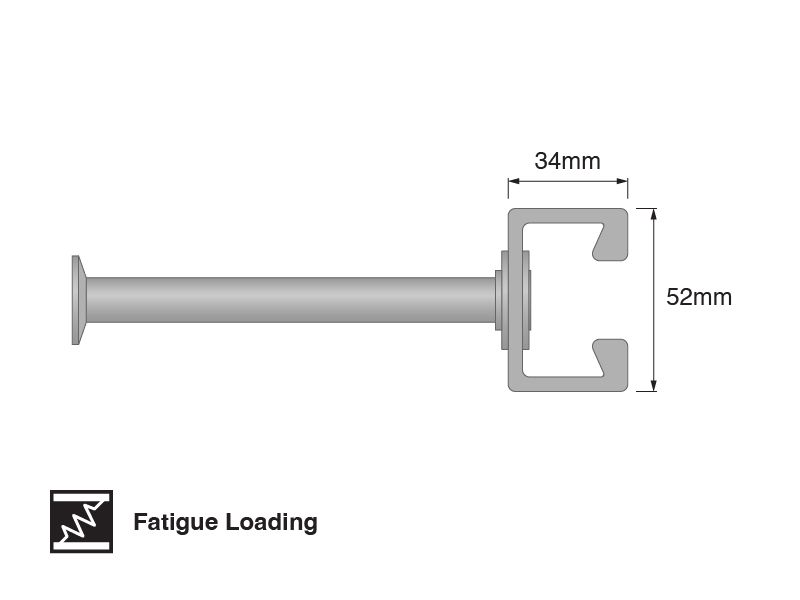

| Compliance | AS 5216:2021, Cyclic Loads, Dynamic Loads |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information

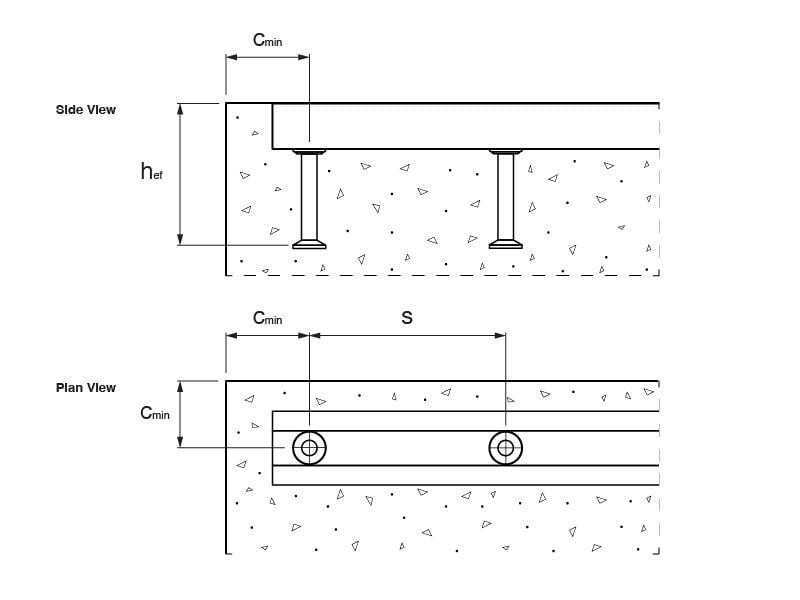

| SKU | Profile, Length, Anchors | Effective Depth, href | Anchor Spacing, S | Edge Distance, Cmin |
|---|---|---|---|---|
| 2843.5202017 | AC-G 52/34P 170mm, 2 Anchors | 156mm | 100mm | 100mm |
| 2843.5202020 | AC-G 52/34P 200mm, 2 Anchors | 156mm | 130mm | 100mm |
| 2843.5202025 | AC-G 52/34P 250mm, 2 Anchors | 156mm | 180mm | 100mm |
| 2843.5202030 | AC-G 52/34P 300mm, 2 Anchors | 156mm | 230mm | 100mm |
| 2843.5203035 | AC-G 52/34P 350mm, 3 Anchors | 156mm | 140mm | 100mm |
| 2843.5203040 | AC-G 52/34P 400mm, 3 Anchors | 156mm | 165mm | 100mm |
| 2843.5203055 | AC-G 52/34P 550mm, 3 Anchors | 156mm | 240mm | 100mm |
| 2843.5204082 | AC-G 52/34P 820mm, 4 Anchors | 156mm | 250mm | 100mm |
| 2843.5205107 | AC-G 52/34P 1070mm, 5 Anchors | 156mm | 250mm | 100mm |
| 2843.5213307 | AC-G 52/34P 3070mm, 13 Anchors | 156mm | 250mm | 100mm |
| 2843.5225607 | AC-G 52/34P 6070mm, 25 Anchors | 156mm | 250mm | 100mm |
