NexCast™ AC-G 50/30P Powered Cast-In Anchor Channel | HDG

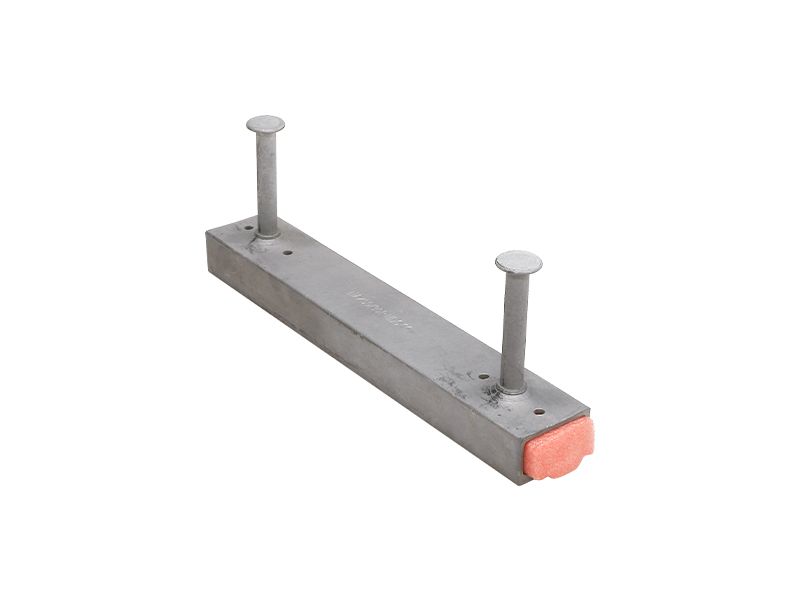

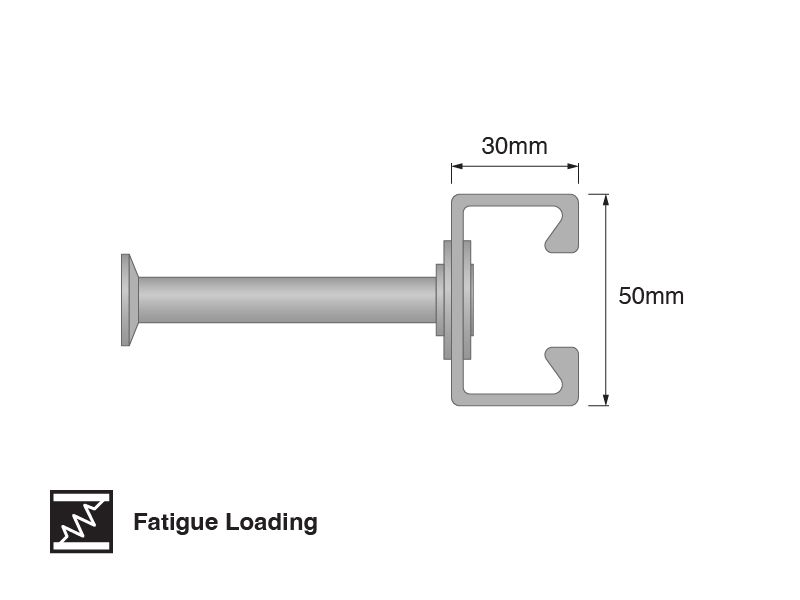

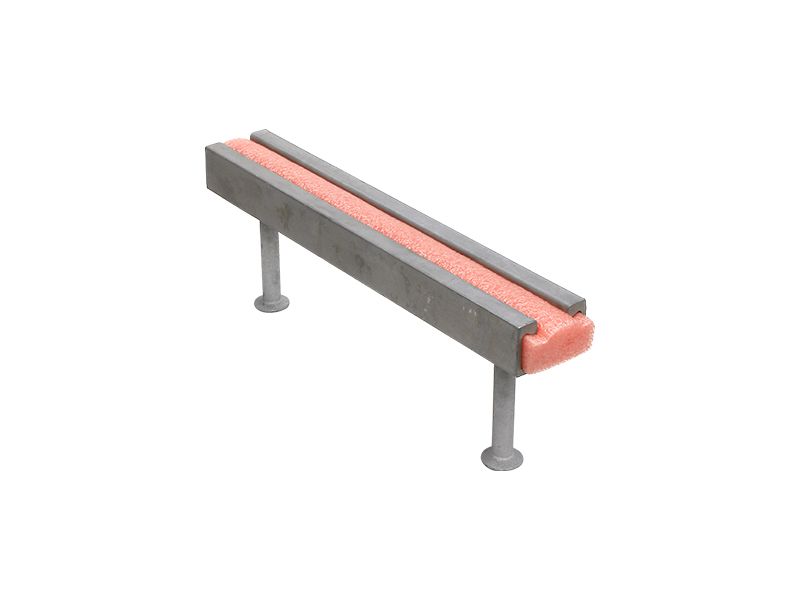

AC-G 50/30P Powered Cast-In Anchor Channel, HDG
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2021, Cyclic Loads, Dynamic Loads |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information

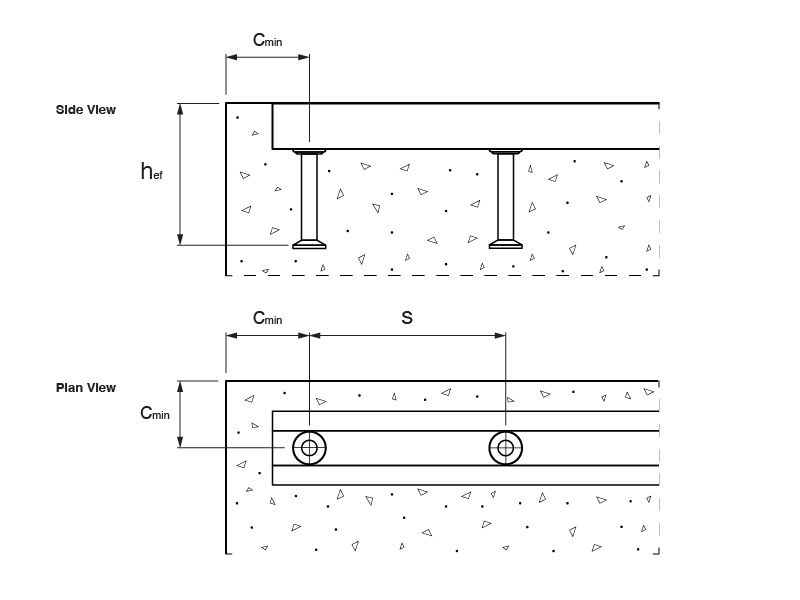

| SKU | Profile, Length, Anchors | Effective Depth, href | Anchor Spacing, S | Edge Distance, Cmin |
|---|---|---|---|---|
| 2843.5002017 | AC-G 50/30P 170mm, 2 Anchors | 106mm | 100mm | 75mm |
| 2843.5002020 | AC-G 50/30P 200mm, 2 Anchors | 106mm | 130mm | 75mm |
| 2843.5002025 | AC-G 50/30P 250mm, 2 Anchors | 106mm | 180mm | 75mm |
| 2843.5002030 | AC-G 50/30P 300mm, 2 Anchors | 106mm | 230mm | 75mm |
| 2843.5003035 | AC-G 50/30P 350mm, 3 Anchors | 106mm | 140mm | 75mm |
| 2843.5003040 | AC-G 50/30P 400mm, 3 Anchors | 106mm | 165mm | 75mm |
| 2843.5003055 | AC-G 50/30P 550mm, 3 Anchors | 106mm | 240mm | 75mm |
| 2843.5004080 | AC-G 50/30P 800mm, 4 Anchors | 106mm | 243mm | 75mm |
| 2843.5005105 | AC-G 50/30P 1050mm, 5 Anchors | 106mm | 245mm | 75mm |
| 2843.5013305 | AC-G 50/30P 3050mm, 13 Anchors | 106mm | 248mm | 75mm |
| 2843.5025605 | AC-G 50/30P 6050mm, 25 Anchors | 106mm | 249mm | 75mm |
