NexCast™ AC-G 40/22P Powered Cast-In Anchor Channel | HDG

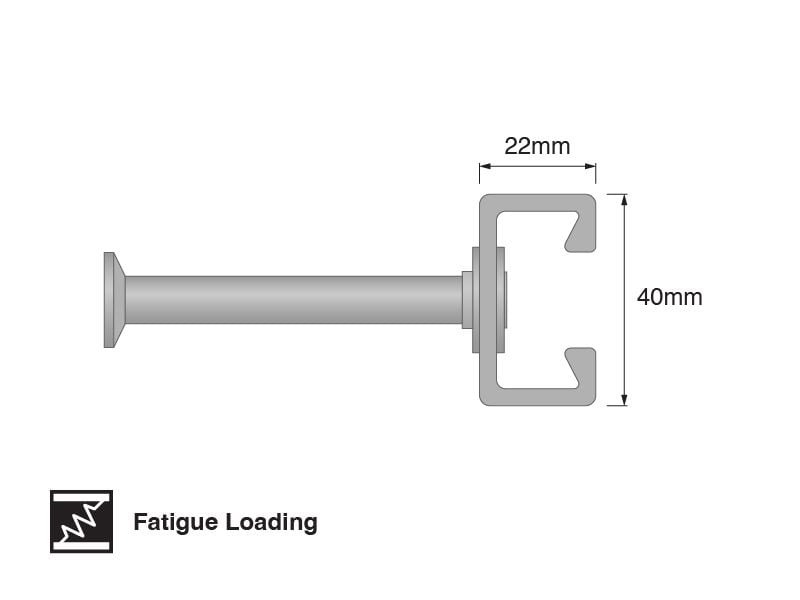

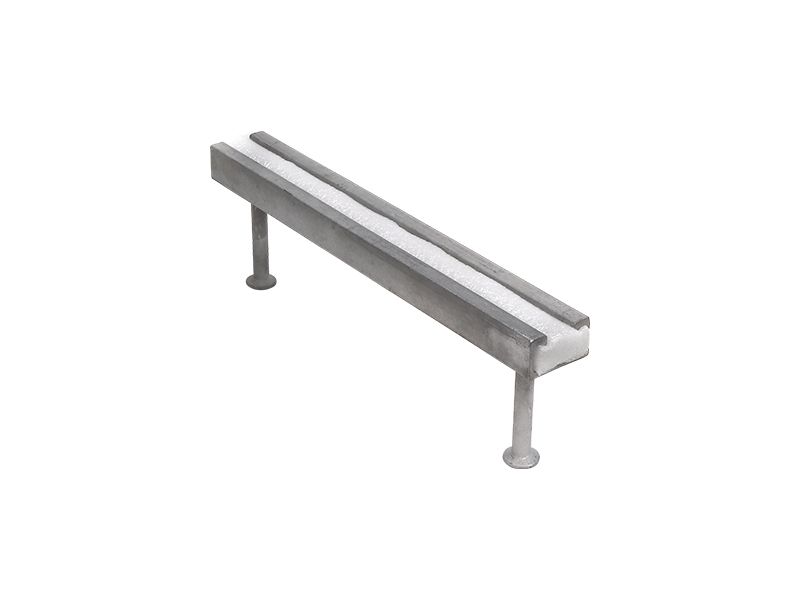

AC-G 40/22P Powered Cast-In Anchor Channel, HDG
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2021, Cyclic Loads, Dynamic Loads |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information

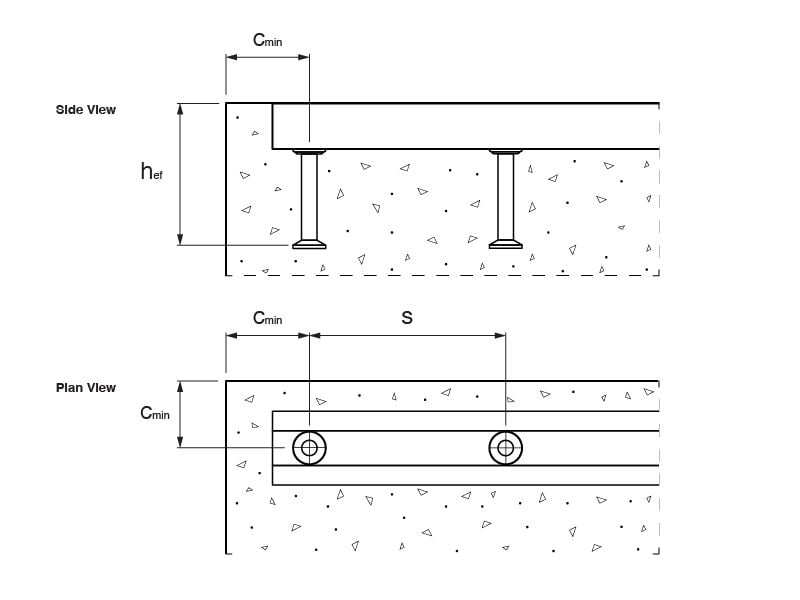

| SKU | Profile, Length, Anchors | Effective Depth, href | Anchor Spacing, S | Edge Distance, Cmin |
|---|---|---|---|---|
| 2843.4002015 | AC-G 40/22P 150mm, 2 Anchors | 91mm | 100mm | 50mm |
| 2843.4002020 | AC-G 40/22P 200mm, 2 Anchors | 91mm | 150mm | 50mm |
| 2843.4002025 | AC-G 40/22P 250mm, 2 Anchors | 91mm | 200mm | 50mm |
| 2843.4002030 | AC-G 40/22P 300mm, 2 Anchors | 91mm | 250mm | 50mm |
| 2843.4003035 | AC-G 40/22P 350mm, 3 Anchors | 91mm | 150mm | 50mm |
| 2843.4003040 | AC-G 40/22P 400mm, 3 Anchors | 91mm | 175mm | 50mm |
| 2843.4003055 | AC-G 40/22P 550mm, 3 Anchors | 91mm | 250mm | 50mm |
| 2843.4004080 | AC-G 40/22P 800mm, 4 Anchors | 91mm | 250mm | 50mm |
| 2843.4005105 | AC-G 40/22P 1050mm, 5 Anchors | 91mm | 250mm | 50mm |
| 2843.4013305 | AC-G 40/22P 3050mm, 13 Anchors | 91mm | 250mm | 50mm |
| 2843.4025605 | AC-G 40/22P 6050mm, 25 Anchors | 91mm | 250mm | 50mm |
