A4-80 (316) Stianless Threaded Rod DIN976

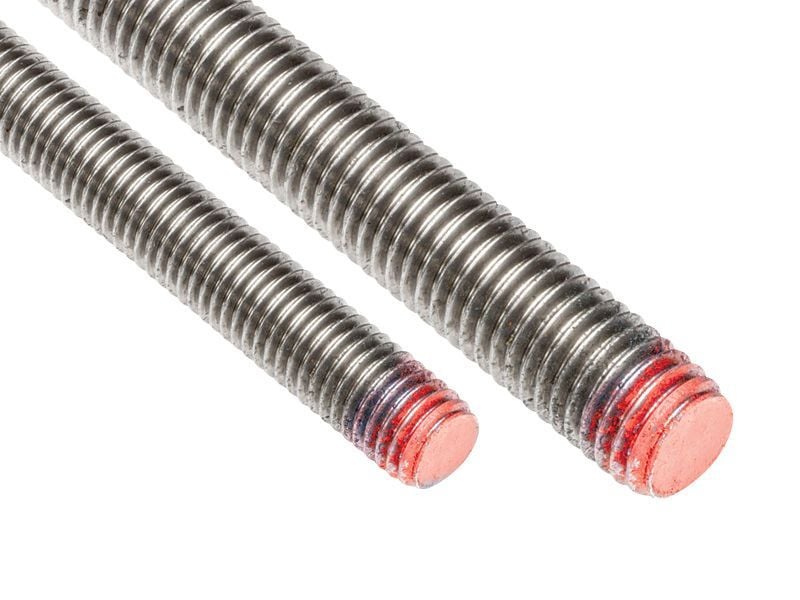

A4-80 High-Tensile 316 Stainless Steel Threaded Rod
High-tensile stainless steel achieves higher mechanical strength over comparable 316 stainless steel grade fasteners. The A4-80 provides a minimum ultimate tensile strength of 800MPa that is achieved through the cold drawing process.
Resistance to corrosion is uncompromised in the high-tensile A4-80 stainless steel range, a premium product that is commonly used in the petrochemical, oil & gas and offshore industries.
If you have any questions with regard to A4-80 steel, please contact us.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Mechanical Properties
- Ultimate Tensile Strength (min): 800 MPa
- Yield Strength (min): 600 MPa
- Elongation: 30
Chemical Properties
- Chromium (min–max): 16.0% – 18.5%
- Nickel (min–max): 10.5% – 14.0%
- Molybdenum (min–max): 2.0% – 3.0%
The information provided above is for reference only. Please contact us for further information.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS. Delivery fees apply, see here. |
|---|---|
| Material Grade | 316 (A4-80) Stainless Steel |
| Coating & Plating | Plain / Unplated |
| Diameter / Gauge | M12, M16, M20, M24, M30 |
| Thread Type | Metric |
Technical Information
| SKU | Dia. x Length | Thread | Material |
|---|---|---|---|
| 1542.0123000 | M12 x 3000mm A4-80 | M12–1.75 | 316 (A4-80) |
| 1542.0161000 | M16 x 1000mm A4-80 | M16–2.00 | 316 (A4-80) |
| 1542.0163000 | M16 x 3000mm A4-80 | M16–2.00 | 316 (A4-80) |
| 1542.0201000 | M20 x 1000mm A4-80 | M20–2.75 | 316 (A4-80) |
| 1542.0203000 | M20 x 3000mm A4-80 | M20–2.75 | 316 (A4-80) |
| 1542.0241000 | M24 x 1000mm A4-80 | M24–3.00 | 316 (A4-80) |
| 1542.0243000 | M24 x 3000mm A4-80 | M24–3.00 | 316 (A4-80) |
| 1542.0303000 | M30 x 3000mm A4-80 | M30–3.50 | 316 (A4-80) |
