8M Class 2 AISI 316 Stainless Hex Nuts

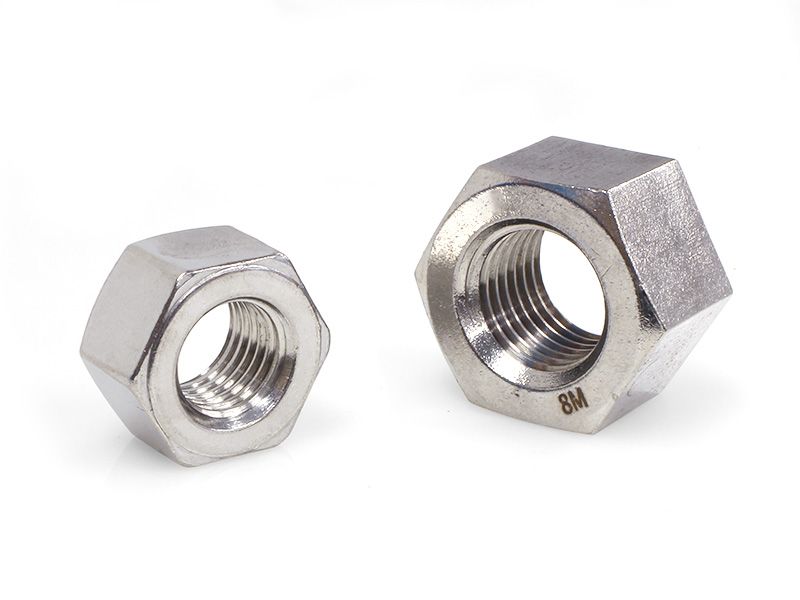

8M A194 Heavy Hex Nuts 316 Stainless
Stainless steel heavy hex nuts compatible with A193 bolts, the appropriate grade for the A194 Grade 8M hex nut are B8M bolts.
These nuts do not require coating and are include with our B8M stud bolt kits available online.
Heavy hex nuts pattern match the width across the flats with the flats of the bolt head. For full dimension of heavy A193 nuts click here.
- ASTM A194 heavy hex nuts come standard with EN 3.1 certification.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Diameter / Gauge | 1/2", 5/8", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", 1-7/8", 2", 2-1/4", 2-1/2" |
|---|---|
| Thread Type | Imperial |
| Nut Properties | ASTM A194 Gr 8M |
| Material / Finish | Stainless AISI 316 Steel |
| Use for | Petrochemical |
Technical Information
| SKU | Size | Finish | AF [ mm ] | H [ mm ] | Weight [ kg ] |
|---|---|---|---|---|---|
| 1500.0120000 | 1/2” UNC Gr8M | Stainless AISI 316 | 22.23 | 12.80 | 0.03 |
| 1500.0160000 | 5/8” UNC Gr8M | Stainless AISI 316 | 26.97 | 16.03 | 0.05 |
| 1500.0200000 | 3/4” UNC Gr8M | Stainless AISI 316 | 31.75 | 19.25 | 0.09 |
| 1500.0220000 | 7/8” UNC Gr8M | Stainless AISI 316 | 36.53 | 22.48 | 0.13 |
| 1500.0250000 | 1” UNC Gr8M | Stainless AISI 316 | 41.28 | 25.70 | 0.19 |
| 1500.0280000 | 1-1/8” UN8 Gr8M | Stainless AISI 316 | 46.02 | 28.93 | 0.26 |
| 1500.0320000 | 1-1/4” UN8 Gr8M | Stainless AISI 316 | 50.80 | 31.78 | 0.37 |
| 1500.0350000 | 1-3/8” UN8 Gr8M | Stainless AISI 316 | 55.58 | 35.00 | 0.48 |
| 1500.0380000 | 1-1/2” UN8 Gr8M | Stainless AISI 316 | 60.33 | 38.23 | 0.58 |
| 1500.0410000 | 1-5/8” UN8 Gr8M | Stainless AISI 316 | 65.07 | 41.45 | 0.78 |
| 1500.0450000 | 1-3/4” UN8 Gr8M | Stainless AISI 316 | 69.85 | 44.68 | 0.96 |
| 1500.0480000 | 1-7/8” UN8 Gr8M | Stainless AISI 316 | 74.63 | 47.40 | 1.16 |
| 1500.0500000 | 2” UN8 Gr8M | Stainless AISI 316 | 79.38 | 51.13 | 1.40 |
| 1500.0570000 | 2-1/4” UN8 Gr8M | Stainless AISI 316 | 88.90 | 57.18 | 1.90 |
| 1500.0650000 | 2-1/2” UN8 Gr8M | Stainless AISI 316 | 98.43 | 63.63 | 2.56 |
