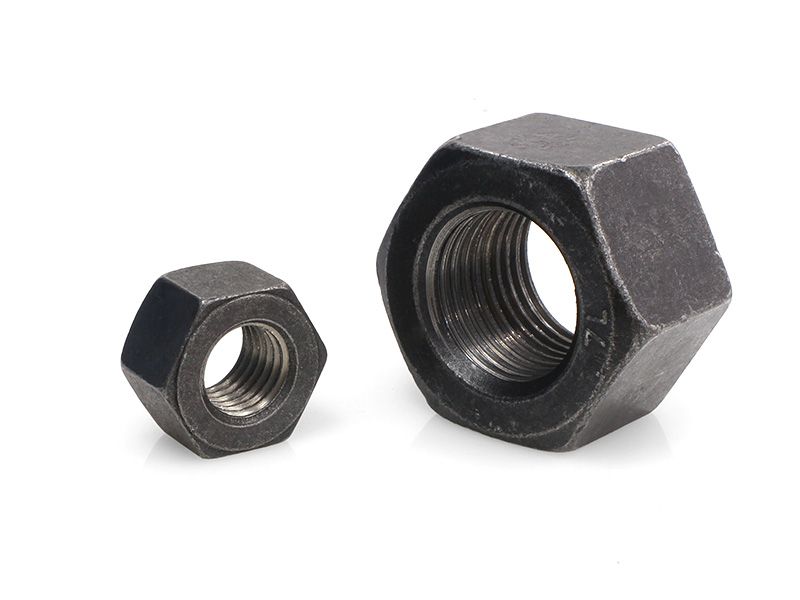

7L A194 Heavy Hex Nuts

The compatible grade of heavy hex nuts for A193 bolts are determined by the chemistry, strength and grade of the material. The the appropriate bolt grade for the A194 Grade 7 hex nuts are B16 bolts.

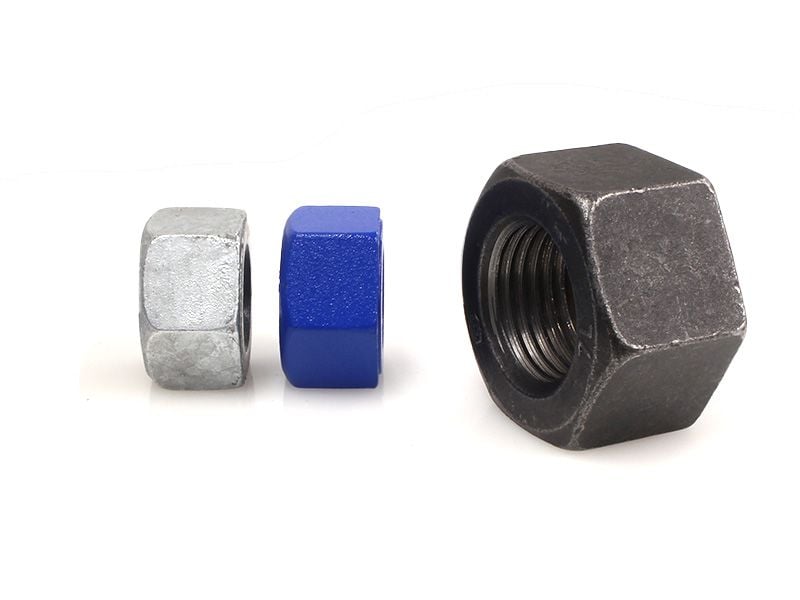

These nuts can be supplied plain or can be coated to specification according to the corresponding bolt. 7L grade nuts are include with our B16 stud bolt kits available online.

Heavy hex nuts pattern match the width across the flats with the flats of the bolt head. For full dimension of heavy A193 nuts click here.

ASTM A194 heavy hex nuts come standard with EN 3.1 certification.

SKU 6NH7U

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1/2” UNC Gr7L Heavy Hex Nut A194 Plain From $9.91
5/8” UNC Gr7L Heavy Hex Nut A194 Plain From $11.89
3/4” UNC Gr7L Heavy Hex Nut A194 Plain From $11.89
7/8” UNC Gr7L Heavy Hex Nut A194 Plain From $25.60
1” UNC Gr7L Heavy Hex Nut A194 Plain From $25.60
1-1/8” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
1-1/4” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
1-3/8” UN8 Gr7L Heavy Hex Nut A194 Plain From $535.18
1-1/2” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
1-5/8” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
1-3/4” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
1-7/8” UN8 Gr7L Heavy Hex Nut A194 Plain From $11.89
2” UN8 Gr7L Heavy Hex Nut A194 Plain From $144.27
2-1/4” UN8 Gr7L Heavy Hex Nut A194 Plain From $0.00
2-1/2” UN8 Gr7L Heavy Hex Nut A194 Plain From $245.27
1/2” UNC Gr7L Heavy Hex Nut A194 Galvanised From $23.82
5/8” UNC Gr7L Heavy Hex Nut A194 Galvanised From $23.82
3/4” UNC Gr7L Heavy Hex Nut A194 Galvanised From $41.68
7/8” UNC Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1” UNC Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1-1/8” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1-1/4” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1-3/8” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1-1/2” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
1-5/8” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $42.99
1-3/4” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $0.00
1-7/8” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
2” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $41.68
2-1/4” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $0.00
2-1/2” UN8 Gr7L Heavy Hex Nut A194 Galvanised From $0.00
1/2” UNC Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
5/8” UNC Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
3/4” UNC Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
7/8” UNC Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
1” UNC Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
1-1/8” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
1-1/4” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
1-3/8“ UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $74.33
1-1/2” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
1-5/8” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
1-3/4” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
1-7/8” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
2” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
2-1/4” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00
2-1/2” UN8 Gr7L Heavy Hex Nut A194 Xylan Blue From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Diameter / Gauge	3/4", 1/2", 5/8", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", 1-7/8", 2", 2-1/4", 2-1/2"
Thread Type	Imperial
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Plain (Unplated), Xylan Blue (PTFE), Hot-dipped Galvanised (HDG)
Use for	Petrochemical

Technical Information

SKU	Size	Finish	AF [ mm ]	H [ mm ]	Weight [ kg ]
1502.0120000	1/2” UNC Gr7L	Plain	22.23	12.80	0.03
1502.0160000	5/8” UNC Gr7L	Plain	26.97	16.03	0.05
1502.0200000	3/4” UNC Gr7L	Plain	31.75	19.25	0.09
1502.0220000	7/8” UNC Gr7L	Plain	36.53	22.48	0.13
1502.0250000	1” UNC Gr7L	Plain	41.28	25.70	0.19
1502.0280000	1-1/8” UN8 Gr7L	Plain	46.02	28.93	0.26
1502.0320000	1-1/4” UN8 Gr7L	Plain	50.80	31.78	0.37
1502.0350000	1-3/8” UN8 Gr7L	Plain	55.58	35.00	0.48
1502.0380000	1-1/2” UN8 Gr7L	Plain	60.33	38.23	0.58
1502.0410000	1-5/8” UN8 Gr7L	Plain	65.07	41.45	0.78
1502.0450000	1-3/4” UN8 Gr7L	Plain	69.85	44.68	0.96
1502.0480000	1-7/8” UN8 Gr7L	Plain	74.63	47.40	1.16
1502.0500000	2” UN8 Gr7L	Plain	79.38	51.13	1.40
1502.0570000	2-1/4” UN8 Gr7L	Plain	88.90	57.18	1.90
1502.0650000	2-1/2” UN8 Gr7L	Plain	98.43	63.63	2.56
1501.0120000	1/2” UNC Gr7L	Galvanised	22.23	12.80
1501.0160000	5/8” UNC Gr7L	Galvanised	26.97	16.03
1501.0200000	3/4” UNC Gr7L	Galvanised	31.75	19.25
1501.0220000	7/8” UNC Gr7L	Galvanised	36.53	22.48
1501.0250000	1” UNC Gr7L	Galvanised	41.28	25.70
1501.0280000	1-1/8” UN8 Gr7L	Galvanised	46.02	28.93
1501.0320000	1-1/4” UN8 Gr7L	Galvanised	50.80	31.78
1501.0350000	1-3/8” UN8 Gr7L	Galvanised	55.58	35.00
1501.0380000	1-1/2” UN8 Gr7L	Galvanised	60.33	38.23
1501.0410000	1-5/8” UN8 Gr7L	Galvanised	65.07	41.45
1501.0450000	1-3/4” UN8 Gr7L	Galvanised	69.85	44.68
1501.0480000	1-7/8” UN8 Gr7L	Galvanised	74.63	47.40
1501.0500000	2” UN8 Gr7L	Galvanised	79.38	51.13
1501.0570000	2-1/4” UN8 Gr7L	Galvanised	88.90	57.18
1501.0650000	2-1/2” UN8 Gr7L	Galvanised	98.43	63.63
1503.0120000	1/2” UNC Gr7L	Xylan Blue	22.23	12.80
1503.0160000	5/8” UNC Gr7L	Xylan Blue	26.97	16.03
1503.0200000	3/4” UNC Gr7L	Xylan Blue	31.75	19.25
1503.0220000	7/8” UNC Gr7L	Xylan Blue	36.53	22.48
1503.0250000	1” UNC Gr7L	Xylan Blue	41.28	25.70
1503.0280000	1-1/8” UN8 Gr7L	Xylan Blue	46.02	28.93
1503.0320000	1-1/4” UN8 Gr7L	Xylan Blue	50.80	31.78
1503.0350000	1-3/8” UN8 Gr7L	Xylan Blue	55.58	35.00
1503.0380000	1-1/2” UN8 Gr7L	Xylan Blue	60.33	38.23
1503.0410000	1-5/8” UN8 Gr7L	Xylan Blue	65.07	41.45
1503.0450000	1-3/4” UN8 Gr7L	Xylan Blue	69.85	44.68
1503.0480000	1-7/8” UN8 Gr7L	Xylan Blue	74.63	47.40
1503.0500000	2” UN8 Gr7L	Xylan Blue	79.38	51.13
1503.0570000	2-1/4” UN8 Gr7L	Xylan Blue	88.90	57.18
1503.0650000	2-1/2” UN8 Gr7L	Xylan Blue	98.43	63.63
