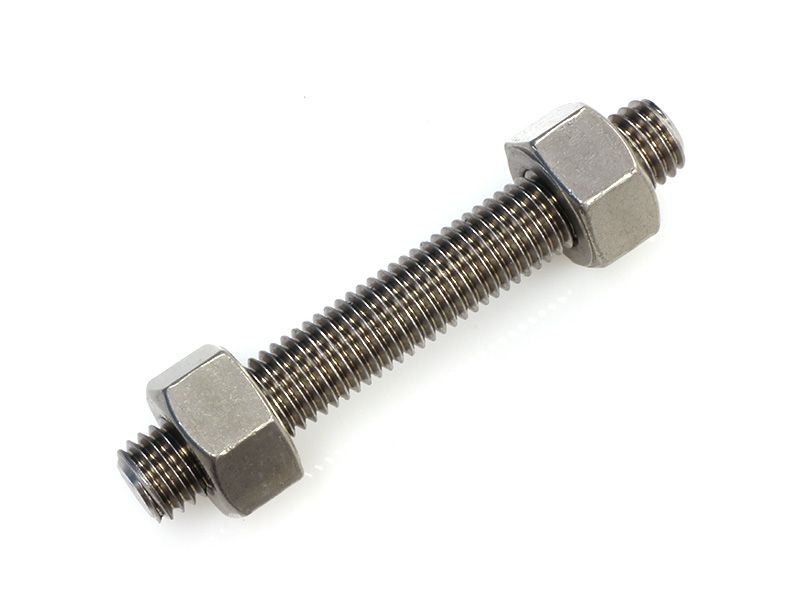

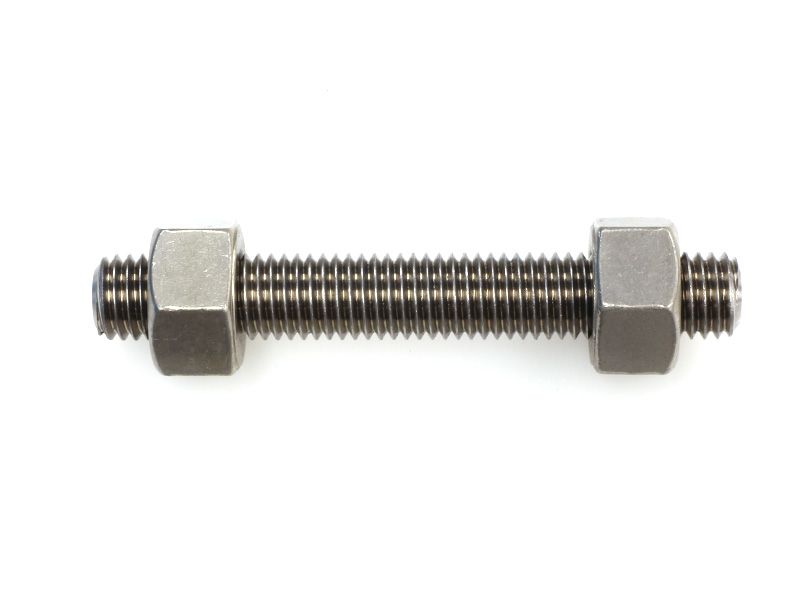

7/8" UNC B8 Class 2 Stud Bolt Kit A193/A194

  • Home
  • 7/8" B8 Stud Bolt Kit 304 Stainless

7/8" B8 Stud Bolt Kit 304 Stainless

  • Class 2 AISI 304 strain hardened studs.
  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2x Gr8 stainless heavy hex nuts.
  • ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
SKU 6B8SBNUC222
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge 7/8"
Thread Type UNC
Bolt / Stud Property ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties ASTM A194 Gr 8
Material / Finish Stainless AISI 304 Steel
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] Weight [ kg ]
1340.0220075 7/8” x 75 mm AISI 304 795 MPa 550 MPa 0.45
1340.0220080 7/8” x 80 mm AISI 304 795 MPa 550 MPa 0.463
1340.0220090 7/8” x 90 mm AISI 304 795 MPa 550 MPa 0.488
1340.0220095 7/8” x 95 mm AISI 304 795 MPa 550 MPa 0.501
1340.0220100 7/8” x 100 mm AISI 304 795 MPa 550 MPa 0.514
1340.0220110 7/8” x 110 mm AISI 304 795 MPa 550 MPa 0.539
1340.0220115 7/8” x 115 mm AISI 304 795 MPa 550 MPa 0.552
1340.0220120 7/8” x 120 mm AISI 304 795 MPa 550 MPa 0.564
1340.0220125 7/8” x 125 mm AISI 304 795 MPa 550 MPa 0.577
1340.0220130 7/8” x 130 mm AISI 304 795 MPa 550 MPa 0.59
1340.0220140 7/8” x 140 mm AISI 304 795 MPa 550 MPa 0.615
1340.0220145 7/8” x 145 mm AISI 304 795 MPa 550 MPa 0.628
1340.0220150 7/8” x 150 mm AISI 304 795 MPa 550 MPa 0.641
1340.0220160 7/8” x 160 mm AISI 304 795 MPa 550 MPa 0.666
1340.0220165 7/8” x 165 mm AISI 304 795 MPa 550 MPa 0.679
1340.0220170 7/8” x 170 mm AISI 304 795 MPa 550 MPa 0.691
1340.0220180 7/8” x 180 mm AISI 304 795 MPa 550 MPa 0.717
1340.0220185 7/8” x 185 mm AISI 304 795 MPa 550 MPa 0.729
1340.0220190 7/8” x 190 mm AISI 304 795 MPa 550 MPa 0.742
1340.0220195 7/8” x 195 mm AISI 304 795 MPa 550 MPa 0.755
1340.0220200 7/8” x 200 mm AISI 304 795 MPa 550 MPa 0.767
1340.0220210 7/8” x 210 mm AISI 304 795 MPa 550 MPa 0.793
1340.0220215 7/8” x 215 mm AISI 304 795 MPa 550 MPa 0.805
1340.0220220 7/8” x 220 mm AISI 304 795 MPa 550 MPa 0.818
1340.0220230 7/8” x 230 mm AISI 304 795 MPa 550 MPa 0.844
1340.0220235 7/8” x 235 mm AISI 304 795 MPa 550 MPa 0.856
1340.0220240 7/8” x 240 mm AISI 304 795 MPa 550 MPa 0.869
1340.0220250 7/8” x 250 mm AISI 304 795 MPa 550 MPa 0.894
1340.0220255 7/8” x 255 mm AISI 304 795 MPa 550 MPa 0.907
1340.0220260 7/8” x 260 mm AISI 304 795 MPa 550 MPa 0.92
1340.0220265 7/8” x 265 mm AISI 304 795 MPa 550 MPa 0.932
1340.0220275 7/8” x 275 mm AISI 304 795 MPa 550 MPa 0.958
1340.0220280 7/8” x 280 mm AISI 304 795 MPa 550 MPa 0.97
1340.0220285 7/8” x 285 mm AISI 304 795 MPa 550 MPa 0.983
1340.0220290 7/8” x 290 mm AISI 304 795 MPa 550 MPa 0.996
1340.0220300 7/8” x 300 mm AISI 304 795 MPa 550 MPa 1.021
1340.0220305 7/8” x 305 mm AISI 304 795 MPa 550 MPa 1.034
1340.0220310 7/8” x 310 mm AISI 304 795 MPa 550 MPa 1.047
1340.0220320 7/8” x 320 mm AISI 304 795 MPa 550 MPa 1.072
1340.0220325 7/8” x 325 mm AISI 304 795 MPa 550 MPa 1.085
1340.0220330 7/8” x 330 mm AISI 304 795 MPa 550 MPa 1.097
1340.0220335 7/8” x 335 mm AISI 304 795 MPa 550 MPa 1.11
1340.0220345 7/8” x 345 mm AISI 304 795 MPa 550 MPa 1.135
1340.0220350 7/8” x 350 mm AISI 304 795 MPa 550 MPa 1.148
1340.0220355 7/8” x 355 mm AISI 304 795 MPa 550 MPa 1.161
1340.0220360 7/8” x 360 mm AISI 304 795 MPa 550 MPa 1.173
1340.0220370 7/8” x 370 mm AISI 304 795 MPa 550 MPa 1.199
1340.0220375 7/8” x 375 mm AISI 304 795 MPa 550 MPa 1.211
1340.0220380 7/8” x 380 mm AISI 304 795 MPa 550 MPa 1.224
1340.0220385 7/8” x 385 mm AISI 304 795 MPa 550 MPa 1.237
1340.0220395 7/8” x 395 mm AISI 304 795 MPa 550 MPa 1.262
1340.0220400 7/8” x 400 mm AISI 304 795 MPa 550 MPa 1.275
1340.0220405 7/8” x 405 mm AISI 304 795 MPa 550 MPa 1.288
1340.0220415 7/8” x 415 mm AISI 304 795 MPa 550 MPa 1.313
1340.0220420 7/8” x 420 mm AISI 304 795 MPa 550 MPa 1.326
1340.0220425 7/8” x 425 mm AISI 304 795 MPa 550 MPa 1.338
1340.0220430 7/8” x 430 mm AISI 304 795 MPa 550 MPa 1.351
1340.0220440 7/8” x 440 mm AISI 304 795 MPa 550 MPa 1.376
1340.0220445 7/8” x 445 mm AISI 304 795 MPa 550 MPa 1.389
1340.0220450 7/8” x 450 mm AISI 304 795 MPa 550 MPa 1.402
1340.0220455 7/8” x 455 mm AISI 304 795 MPa 550 MPa 1.414
1340.0220465 7/8” x 465 mm AISI 304 795 MPa 550 MPa 1.44
1340.0220470 7/8” x 470 mm AISI 304 795 MPa 550 MPa 1.452
1340.0220475 7/8” x 475 mm AISI 304 795 MPa 550 MPa 1.465
1340.0220485 7/8” x 485 mm AISI 304 795 MPa 550 MPa 1.491
1340.0220490 7/8” x 490 mm AISI 304 795 MPa 550 MPa 1.503
1340.0220495 7/8” x 495 mm AISI 304 795 MPa 550 MPa 1.516
1340.0220500 7/8” x 500 mm AISI 304 795 MPa 550 MPa 1.529
1340.0220510 7/8” x 510 mm AISI 304 795 MPa 550 MPa 1.554
