5/8" UNC L7 Stud Bolt Kit A320/A194

Skip to the beginning of the images gallery

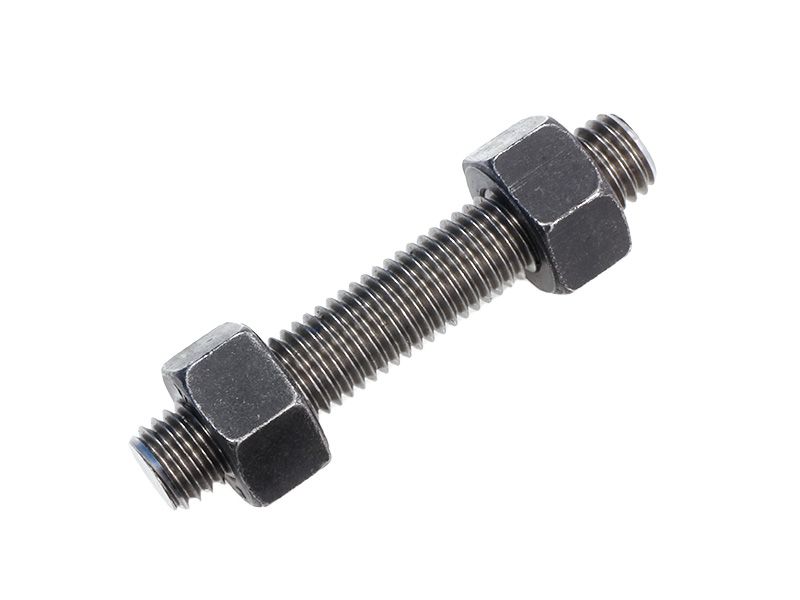

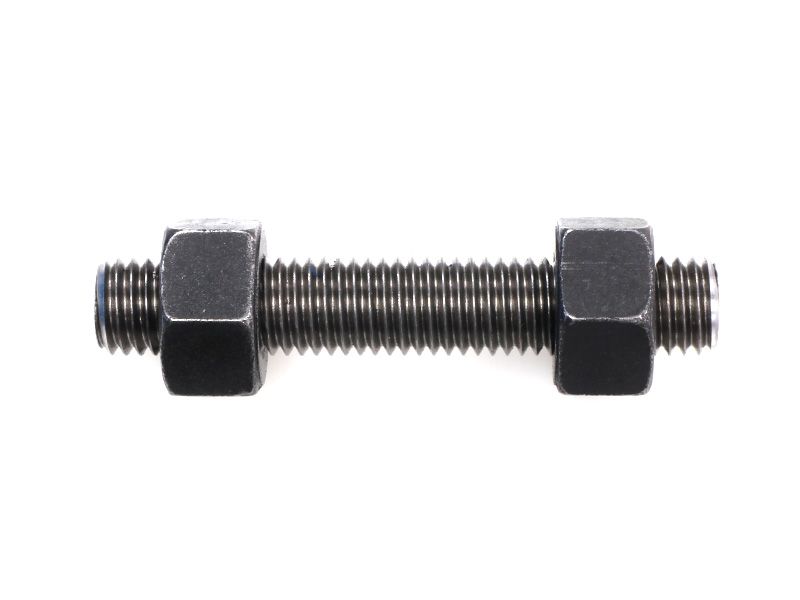

5/8" Plain L7 Stud Bolt Kit

L7 stud bolts are commonly sold as plain (unplated) bare metal finish however we offer surface coatings which have benefits for corrosion protection, lubrication and or wear resistant properties.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x 7L grade heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6L7SBNUU16

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
5/8” x 50 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $5.40
5/8” x 60 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $5.60
5/8” x 65 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $5.70
5/8” x 80 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.15
5/8” x 95 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.50
5/8” x 100 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.65
5/8” x 115 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.00
5/8” x 120 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.10
5/8” x 125 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.25
5/8” x 130 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.35
5/8” x 140 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.65
5/8” x 145 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.75
5/8” x 160 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.10
5/8” x 165 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.20
5/8” x 170 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.35
5/8” x 180 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.60
5/8” x 185 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.75
5/8” x 190 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.85
5/8” x 195 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $8.95
5/8” x 200 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.05
5/8” x 210 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.35
5/8” x 215 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.50
5/8” x 220 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.60
5/8” x 230 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.85
5/8” x 235 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $9.95
5/8” x 240 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $10.05
5/8” x 250 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $10.35
5/8” x 255 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 260 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 265 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 275 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 280 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 285 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 290 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 300 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 305 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 310 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 320 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 325 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 330 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 335 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 345 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 350 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $0.00
5/8” x 150 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $7.85
5/8” x 70 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $5.90
5/8” x 75 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.00
5/8” x 110 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.85
5/8” x 90 mm UNC L7 Studbolt A320, 7L A194 Nuts Plain From $6.35

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	5/8"
Thread Type	UNC
Bolt / Stud Property	ASTM A320 L7
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1300.0160050	5/8” x 50mm UNC	Plain	860 MPa	725 MPa
1300.0160060	5/8” x 60mm UNC	Plain	860 MPa	725 MPa
1300.0160065	5/8” x 65mm UNC	Plain	860 MPa	725 MPa
1300.0160080	5/8” x 80mm UNC	Plain	860 MPa	725 MPa
1300.0160095	5/8” x 95mm UNC	Plain	860 MPa	725 MPa
1300.0160100	5/8” x 100mm UNC	Plain	860 MPa	725 MPa
1300.0160115	5/8” x 115mm UNC	Plain	860 MPa	725 MPa
1300.0160120	5/8” x 120mm UNC	Plain	860 MPa	725 MPa
1300.0160125	5/8” x 125mm UNC	Plain	860 MPa	725 MPa
1300.0160130	5/8” x 130mm UNC	Plain	860 MPa	725 MPa
1300.0160140	5/8” x 140mm UNC	Plain	860 MPa	725 MPa
1300.0160145	5/8” x 145mm UNC	Plain	860 MPa	725 MPa
1300.0160160	5/8” x 160mm UNC	Plain	860 MPa	725 MPa
1300.0160165	5/8” x 165mm UNC	Plain	860 MPa	725 MPa
1300.0160170	5/8” x 170mm UNC	Plain	860 MPa	725 MPa
1300.0160180	5/8” x 180mm UNC	Plain	860 MPa	725 MPa
1300.0160185	5/8” x 185mm UNC	Plain	860 MPa	725 MPa
1300.0160190	5/8” x 190mm UNC	Plain	860 MPa	725 MPa
1300.0160195	5/8” x 195mm UNC	Plain	860 MPa	725 MPa
1300.0160200	5/8” x 200mm UNC	Plain	860 MPa	725 MPa
1300.0160210	5/8” x 210mm UNC	Plain	860 MPa	725 MPa
1300.0160215	5/8” x 215mm UNC	Plain	860 MPa	725 MPa
1300.0160220	5/8” x 220mm UNC	Plain	860 MPa	725 MPa
1300.0160230	5/8” x 230mm UNC	Plain	860 MPa	725 MPa
1300.0160235	5/8” x 235mm UNC	Plain	860 MPa	725 MPa
1300.0160240	5/8” x 240mm UNC	Plain	860 MPa	725 MPa
1300.0160250	5/8” x 250mm UNC	Plain	860 MPa	725 MPa
1300.0160255	5/8” x 255mm UNC	Plain	860 MPa	725 MPa
1300.0160260	5/8” x 260mm UNC	Plain	860 MPa	725 MPa
1300.0160265	5/8” x 265mm UNC	Plain	860 MPa	725 MPa
1300.0160275	5/8” x 275mm UNC	Plain	860 MPa	725 MPa
1300.0160280	5/8” x 280mm UNC	Plain	860 MPa	725 MPa
1300.0160285	5/8” x 285mm UNC	Plain	860 MPa	725 MPa
1300.0160290	5/8” x 290mm UNC	Plain	860 MPa	725 MPa
1300.0160300	5/8” x 300mm UNC	Plain	860 MPa	725 MPa
1300.0160305	5/8” x 305mm UNC	Plain	860 MPa	725 MPa
1300.0160310	5/8” x 310mm UNC	Plain	860 MPa	725 MPa
1300.0160320	5/8” x 320mm UNC	Plain	860 MPa	725 MPa
1300.0160325	5/8” x 325mm UNC	Plain	860 MPa	725 MPa
1300.0160330	5/8” x 330mm UNC	Plain	860 MPa	725 MPa
1300.0160335	5/8” x 335mm UNC	Plain	860 MPa	725 MPa
1300.0160345	5/8” x 345mm UNC	Plain	860 MPa	725 MPa
1300.0160350	5/8” x 350mm UNC	Plain	860 MPa	725 MPa
1300.0160150	5/8” x 150mm UNC	Plain	860 MPa	725 MPa
1300.0160070	5/8” x 70mm UNC	Plain	860 MPa	725 MPa
1300.0160075	5/8” x 75mm UNC	Plain	860 MPa	725 MPa
1300.0160110	5/8” x 110mm UNC	Plain	860 MPa	725 MPa
1300.0160090	5/8” x 90mm UNC	Plain	860 MPa	725 MPa
