5/8" B8 CL2 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

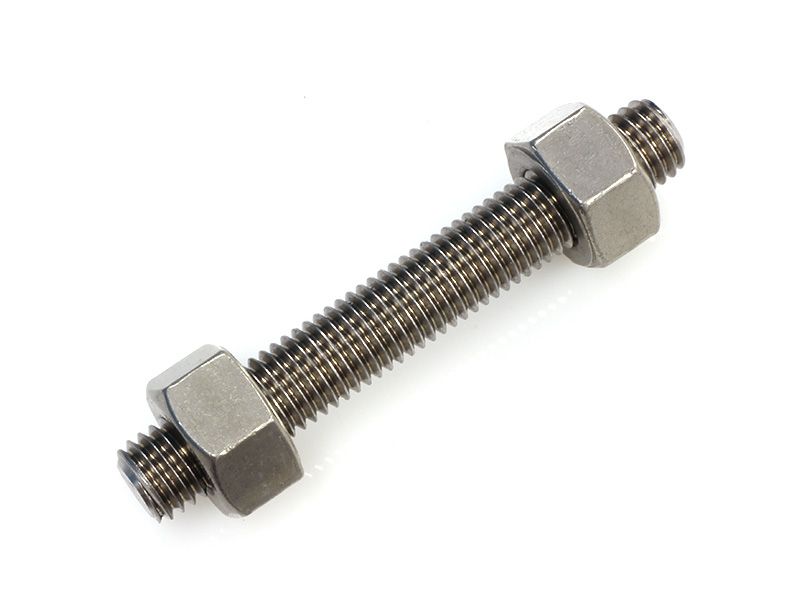

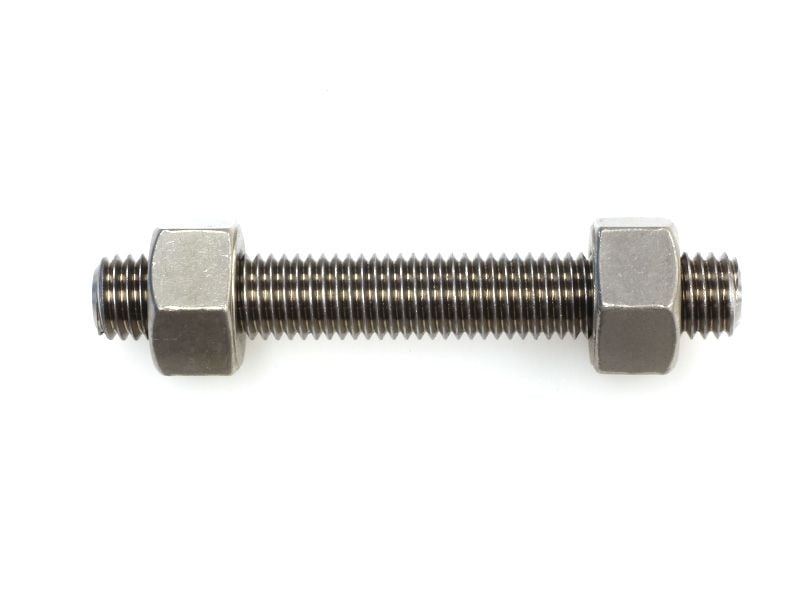

5/8" B8 Stud Bolt Kit 304 Stainless

Class 2 AISI 304 strain hardened studs.
Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x Gr8 stainless heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B8SBNUC216

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
5/8” x 50mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $9.75
5/8” x 60mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $10.10
5/8” x 65mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $10.35
5/8” x 70mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $10.55
5/8” x 75mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $10.75
5/8” x 80mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $10.95
5/8” x 90mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $11.40
5/8” x 95mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $11.55
5/8” x 100mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $11.80
5/8” x 110mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $12.20
5/8” x 115mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $12.40
5/8” x 120mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $12.60
5/8” x 125mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $12.85
5/8” x 130mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $13.05
5/8” x 140mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $13.40
5/8” x 145mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $13.60
5/8” x 150mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $13.85
5/8” x 160mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $14.25
5/8” x 165mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $14.45
5/8” x 170mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $14.70
5/8” x 180mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.10
5/8” x 185mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.30
5/8” x 190mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.50
5/8” x 195mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.70
5/8” x 200mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.90
5/8” x 210mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.30
5/8” x 215mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.55
5/8” x 220mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.70
5/8” x 230mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.10
5/8” x 235mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.35
5/8” x 240mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.55
5/8” x 250mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.95
5/8” x 255mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.15
5/8” x 260mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.35
5/8” x 265mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.60
5/8” x 275mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.95
5/8” x 280mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.20
5/8” x 285mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.35
5/8” x 290mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.60
5/8” x 300mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.00
5/8” x 305mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.20
5/8” x 310mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.40
5/8” x 320mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.85
5/8” x 325mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.05
5/8” x 330mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.25
5/8” x 335mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.40
5/8” x 345mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.90
5/8” x 350mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $22.05

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	5/8"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties	ASTM A194 Gr 8
Material / Finish	Stainless AISI 304 Steel
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1340.0160050	5/8” x 50mm	AISI 304	860 MPa	690 MPa	0.163
1340.0160060	5/8” x 60mm	AISI 304	860 MPa	690 MPa	0.176
1340.0160065	5/8” x 65mm	AISI 304	860 MPa	690 MPa	0.182
1340.0160070	5/8” x 70mm	AISI 304	860 MPa	690 MPa	0.188
1340.0160075	5/8” x 75mm	AISI 304	860 MPa	690 MPa	0.195
1340.0160080	5/8” x 80mm	AISI 304	860 MPa	690 MPa	0.201
1340.0160090	5/8” x 90mm	AISI 304	860 MPa	690 MPa	0.214
1340.0160095	5/8” x 95mm	AISI 304	860 MPa	690 MPa	0.22
1340.0160100	5/8” x 100mm	AISI 304	860 MPa	690 MPa	0.226
1340.0160110	5/8” x 110mm	AISI 304	860 MPa	690 MPa	0.239
1340.0160115	5/8” x 115mm	AISI 304	860 MPa	690 MPa	0.245
1340.0160120	5/8” x 120mm	AISI 304	860 MPa	690 MPa	0.252
1340.0160125	5/8” x 125mm	AISI 304	860 MPa	690 MPa	0.258
1340.0160130	5/8” x 130mm	AISI 304	860 MPa	690 MPa	0.264
1340.0160140	5/8” x 140mm	AISI 304	860 MPa	690 MPa	0.277
1340.0160145	5/8” x 145mm	AISI 304	860 MPa	690 MPa	0.283
1340.0160150	5/8” x 150mm	AISI 304	860 MPa	690 MPa	0.289
1340.0160160	5/8” x 160mm	AISI 304	860 MPa	690 MPa	0.302
1340.0160165	5/8” x 165mm	AISI 304	860 MPa	690 MPa	0.308
1340.0160170	5/8” x 170mm	AISI 304	860 MPa	690 MPa	0.315
1340.0160180	5/8” x 180mm	AISI 304	860 MPa	690 MPa	0.327
1340.0160185	5/8” x 185mm	AISI 304	860 MPa	690 MPa	0.334
1340.0160190	5/8” x 190mm	AISI 304	860 MPa	690 MPa	0.34
1340.0160195	5/8” x 195mm	AISI 304	860 MPa	690 MPa	0.346
1340.0160200	5/8” x 200mm	AISI 304	860 MPa	690 MPa	0.353
1340.0160210	5/8” x 210mm	AISI 304	860 MPa	690 MPa	0.365
1340.0160215	5/8” x 215mm	AISI 304	860 MPa	690 MPa	0.372
1340.0160220	5/8” x 220mm	AISI 304	860 MPa	690 MPa	0.378
1340.0160230	5/8” x 230mm	AISI 304	860 MPa	690 MPa	0.391
1340.0160235	5/8” x 235mm	AISI 304	860 MPa	690 MPa	0.397
1340.0160240	5/8” x 240mm	AISI 304	860 MPa	690 MPa	0.403
1340.0160250	5/8” x 250mm	AISI 304	860 MPa	690 MPa	0.416
1340.0160255	5/8” x 255mm	AISI 304	860 MPa	690 MPa	0.422
1340.0160260	5/8” x 260mm	AISI 304	860 MPa	690 MPa	0.428
1340.0160265	5/8” x 265mm	AISI 304	860 MPa	690 MPa	0.435
1340.0160275	5/8” x 275mm	AISI 304	860 MPa	690 MPa	0.447
1340.0160280	5/8” x 280mm	AISI 304	860 MPa	690 MPa	0.454
1340.0160285	5/8” x 285mm	AISI 304	860 MPa	690 MPa	0.46
1340.0160290	5/8” x 290mm	AISI 304	860 MPa	690 MPa	0.466
1340.0160300	5/8” x 300mm	AISI 304	860 MPa	690 MPa	0.479
1340.0160305	5/8” x 305mm	AISI 304	860 MPa	690 MPa	0.485
1340.0160310	5/8” x 310mm	AISI 304	860 MPa	690 MPa	0.504
1340.0160320	5/8” x 320mm	AISI 304	860 MPa	690 MPa	0.504
1340.0160325	5/8” x 325mm	AISI 304	860 MPa	690 MPa	0.511
1340.0160330	5/8” x 330mm	AISI 304	860 MPa	690 MPa	0.517
1340.0160335	5/8” x 335mm	AISI 304	860 MPa	690 MPa	0.523
1340.0160345	5/8” x 345mm	AISI 304	860 MPa	690 MPa	0.536
1340.0160350	5/8” x 350mm	AISI 304	860 MPa	690 MPa	0.542

Documents

5/8" UNC B8 Class 2 Stud Bolt Kit A193/A194

5/8" B8 Stud Bolt Kit 304 Stainless
