5/8" B16 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

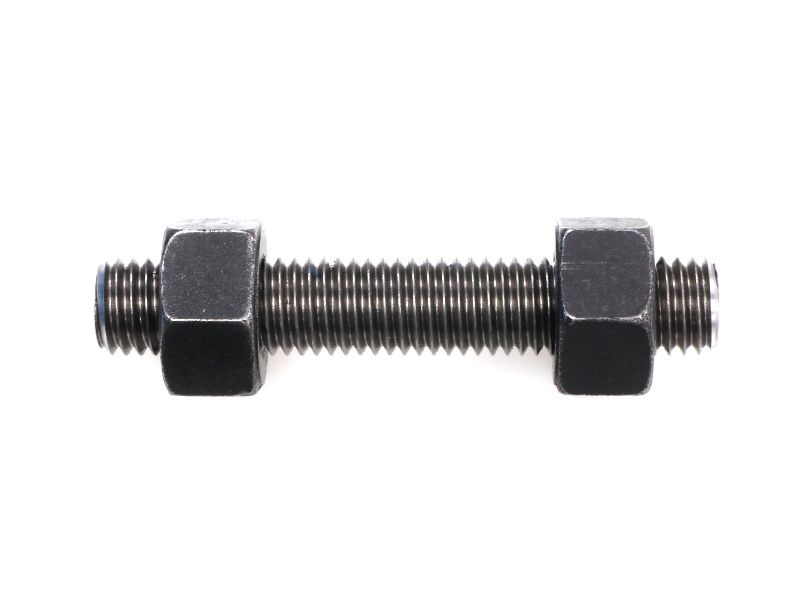

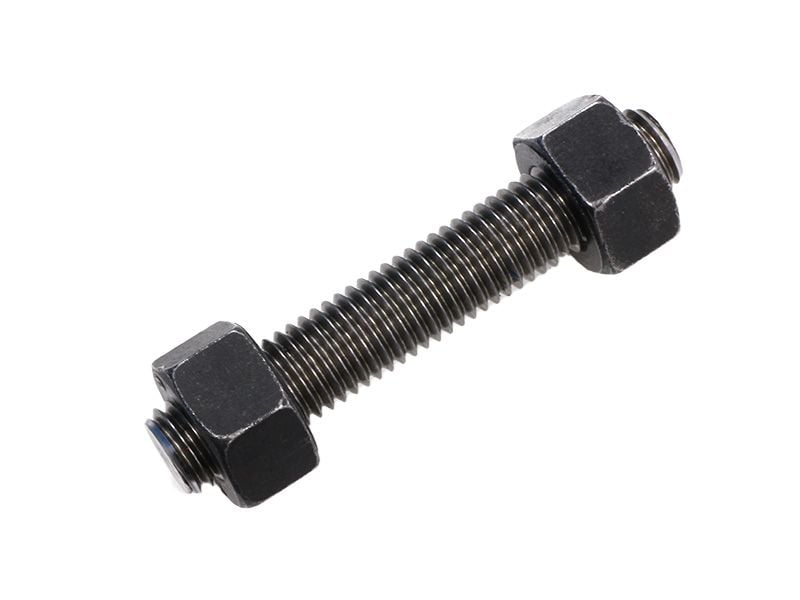

5/8" Plain B16, 7L Stud Bolt Kit

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B16SBNUU16

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
5/8” x 50mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.15
5/8” x 60mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.35
5/8” x 65mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.45
5/8” x 70mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.55
5/8” x 75mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.70
5/8” x 80mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $6.80
5/8” x 90mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.00
5/8” x 95mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.10
5/8” x 100mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.25
5/8” x 110mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.45
5/8” x 115mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.60
5/8” x 120mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.70
5/8” x 125mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.80
5/8” x 130mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $7.90
5/8” x 140mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.10
5/8” x 145mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.20
5/8” x 150mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.35
5/8” x 160mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.60
5/8” x 165mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.70
5/8” x 170mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.80
5/8” x 180mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.00
5/8” x 185mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.10
5/8” x 190mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.20
5/8” x 195mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.35
5/8” x 200mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.50
5/8” x 210mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.70
5/8” x 215mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.80
5/8” x 220mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.90
5/8” x 230mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.10
5/8” x 235mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.25
5/8” x 240mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.35
5/8” x 250mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.55
5/8” x 255mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.70
5/8” x 260mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.80
5/8” x 265mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.90
5/8” x 275mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.15
5/8” x 280mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.25
5/8” x 285mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.35
5/8” x 290mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.45
5/8” x 300mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.70
5/8” x 305mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.80
5/8” x 310mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.95
5/8” x 320mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.15
5/8” x 325mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.25
5/8” x 330mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.35
5/8” x 335mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.45
5/8” x 345mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.65
5/8” x 350mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.85

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	5/8"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B16
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1320.0160050	5/8” x 50mm	Plain	860 MPa	725 MPa	0.163
1320.0160060	5/8” x 60mm	Plain	860 MPa	725 MPa	0.176
1320.0160065	5/8” x 65mm	Plain	860 MPa	725 MPa	0.182
1320.0160070	5/8” x 70mm	Plain	860 MPa	725 MPa	0.188
1320.0160075	5/8” x 75mm	Plain	860 MPa	725 MPa	0.195
1320.0160080	5/8” x 80mm	Plain	860 MPa	725 MPa	0.201
1320.0160090	5/8” x 90mm	Plain	860 MPa	725 MPa	0.214
1320.0160095	5/8” x 95mm	Plain	860 MPa	725 MPa	0.22
1320.0160100	5/8” x 100mm	Plain	860 MPa	725 MPa	0.226
1320.0160110	5/8” x 110mm	Plain	860 MPa	725 MPa	0.239
1320.0160115	5/8” x 115mm	Plain	860 MPa	725 MPa	0.245
1320.0160120	5/8” x 120mm	Plain	860 MPa	725 MPa	0.252
1320.0160125	5/8” x 125mm	Plain	860 MPa	725 MPa	0.258
1320.0160130	5/8” x 130mm	Plain	860 MPa	725 MPa	0.264
1320.0160140	5/8” x 140mm	Plain	860 MPa	725 MPa	0.277
1320.0160145	5/8” x 145mm	Plain	860 MPa	725 MPa	0.283
1320.0160150	5/8” x 150mm	Plain	860 MPa	725 MPa	0.289
1320.0160160	5/8” x 160mm	Plain	860 MPa	725 MPa	0.302
1320.0160165	5/8” x 165mm	Plain	860 MPa	725 MPa	0.308
1320.0160170	5/8” x 170mm	Plain	860 MPa	725 MPa	0.315
1320.0160180	5/8” x 180mm	Plain	860 MPa	725 MPa	0.327
1320.0160185	5/8” x 185mm	Plain	860 MPa	725 MPa	0.334
1320.0160190	5/8” x 190mm	Plain	860 MPa	725 MPa	0.34
1320.0160195	5/8” x 195mm	Plain	860 MPa	725 MPa	0.346
1320.0160200	5/8” x 200mm	Plain	860 MPa	725 MPa	0.353
1320.0160210	5/8” x 210mm	Plain	860 MPa	725 MPa	0.365
1320.0160215	5/8” x 215mm	Plain	860 MPa	725 MPa	0.372
1320.0160220	5/8” x 220mm	Plain	860 MPa	725 MPa	0.378
1320.0160230	5/8” x 230mm	Plain	860 MPa	725 MPa	0.391
1320.0160235	5/8” x 235mm	Plain	860 MPa	725 MPa	0.397
1320.0160240	5/8” x 240mm	Plain	860 MPa	725 MPa	0.403
1320.0160250	5/8” x 250mm	Plain	860 MPa	725 MPa	0.416
1320.0160255	5/8” x 255mm	Plain	860 MPa	725 MPa	0.422
1320.0160260	5/8” x 260mm	Plain	860 MPa	725 MPa	0.428
1320.0160265	5/8” x 265mm	Plain	860 MPa	725 MPa	0.435
1320.0160275	5/8” x 275mm	Plain	860 MPa	725 MPa	0.447
1320.0160280	5/8” x 280mm	Plain	860 MPa	725 MPa	0.454
1320.0160285	5/8” x 285mm	Plain	860 MPa	725 MPa	0.46
1320.0160290	5/8” x 290mm	Plain	860 MPa	725 MPa	0.466
1320.0160300	5/8” x 300mm	Plain	860 MPa	725 MPa	0.479
1320.0160305	5/8” x 305mm	Plain	860 MPa	725 MPa	0.485
1320.0160310	5/8” x 310mm	Plain	860 MPa	725 MPa	0.504
1320.0160320	5/8” x 320mm	Plain	860 MPa	725 MPa	0.504
1320.0160325	5/8” x 325mm	Plain	860 MPa	725 MPa	0.511
1320.0160330	5/8” x 330mm	Plain	860 MPa	725 MPa	0.517
1320.0160335	5/8” x 335mm	Plain	860 MPa	725 MPa	0.523
1320.0160345	5/8” x 345mm	Plain	860 MPa	725 MPa	0.536
1320.0160350	5/8” x 350mm	Plain	860 MPa	725 MPa	0.542

Documents

5/8" UNC B16/7L Stud Bolt Kit A193/A194

5/8" Plain B16, 7L Stud Bolt Kit
