3/4" B8 CL2 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

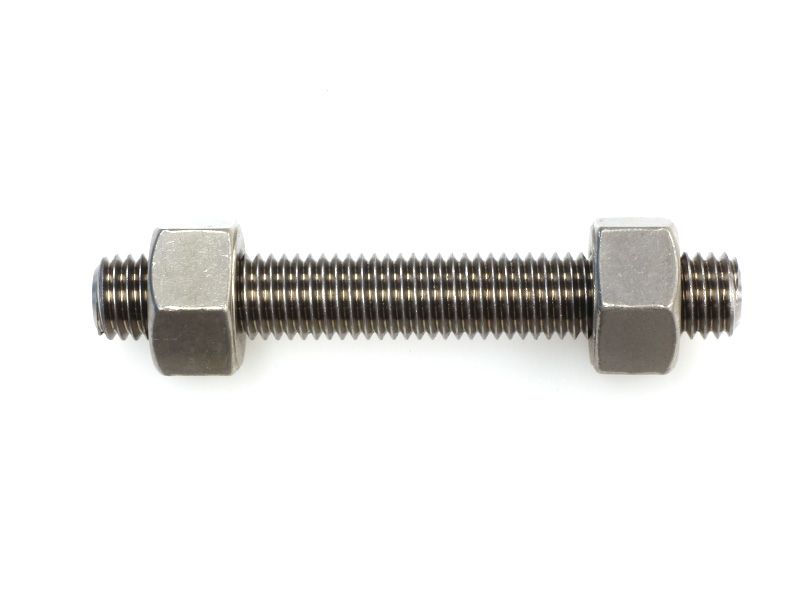

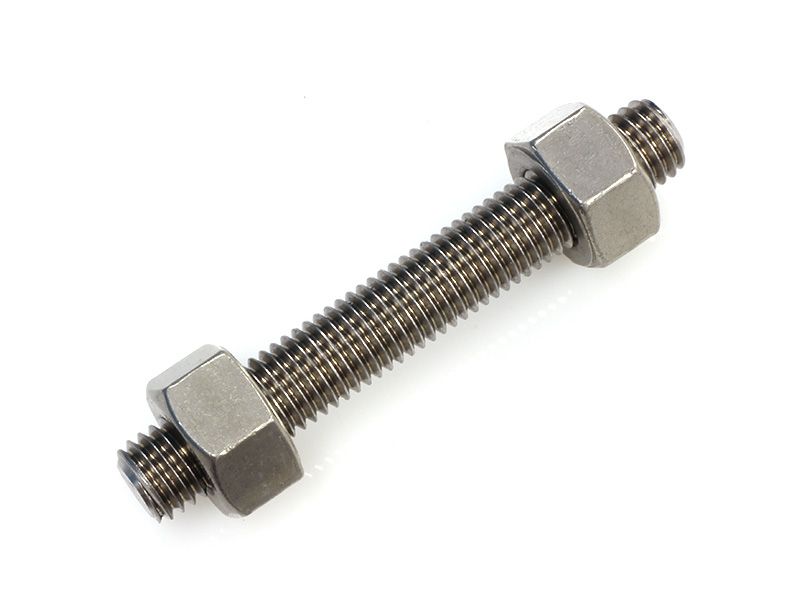

3/4" B8 Stud Bolt Kit 304 Stainless

Class 2 AISI 304 strain hardened studs.
Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x Gr8 stainless heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B8SBNUC220

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
3/4” x 50mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $14.30
3/4” x 60mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $14.85
3/4” x 65mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.05
3/4” x 70mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.35
3/4” x 75mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.60
3/4” x 80mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $15.85
3/4” x 90mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.40
3/4” x 95mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.60
3/4” x 100mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $16.85
3/4” x 110mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.40
3/4” x 115mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.65
3/4” x 120mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $17.85
3/4” x 125mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.20
3/4” x 130mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.45
3/4” x 140mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $18.90
3/4” x 145mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.15
3/4” x 150mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.45
3/4” x 160mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $19.90
3/4” x 165mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.15
3/4” x 170mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $20.50
3/4” x 180mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.00
3/4” x 185mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.20
3/4” x 190mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.40
3/4” x 195mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $21.75
3/4” x 200mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $22.00
3/4” x 210mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $22.45
3/4” x 215mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $22.70
3/4” x 220mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $23.05
3/4” x 230mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $23.45
3/4” x 235mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $23.80
3/4” x 240mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $24.05
3/4” x 250mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $24.50
3/4” x 255mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $24.80
3/4” x 260mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $25.05
3/4” x 265mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $25.30
3/4” x 275mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $25.85
3/4” x 280mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $26.05
3/4” x 285mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $26.30
3/4” x 290mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $26.60
3/4” x 300mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $27.10
3/4” x 305mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $27.30
3/4” x 310mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $27.60
3/4” x 320mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $28.10
3/4” x 325mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $28.40
3/4” x 330mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $28.65
3/4” x 335mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $28.90
3/4” x 345mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $29.40
3/4” x 350mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $29.60

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	3/4"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties	ASTM A194 Gr 8
Material / Finish	Stainless AISI 304 Steel
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1340.0200050	3/4” x 50mm	AISI 304	860 MPa	690 MPa	0.273
1340.0200060	3/4” x 60mm	AISI 304	860 MPa	690 MPa	0.291
1340.0200065	3/4” x 65mm	AISI 304	860 MPa	690 MPa	0.3
1340.0200070	3/4” x 70mm	AISI 304	860 MPa	690 MPa	0.31
1340.0200075	3/4” x 75mm	AISI 304	860 MPa	690 MPa	0.319
1340.0200080	3/4” x 80mm	AISI 304	860 MPa	690 MPa	0.328
1340.0200090	3/4” x 90mm	AISI 304	860 MPa	690 MPa	0.347
1340.0200095	3/4” x 95mm	AISI 304	860 MPa	690 MPa	0.356
1340.0200100	3/4” x 100mm	AISI 304	860 MPa	690 MPa	0.365
1340.0200110	3/4” x 110mm	AISI 304	860 MPa	690 MPa	0.384
1340.0200115	3/4” x 115mm	AISI 304	860 MPa	690 MPa	0.393
1340.0200120	3/4” x 120mm	AISI 304	860 MPa	690 MPa	0.402
1340.0200125	3/4” x 125mm	AISI 304	860 MPa	690 MPa	0.412
1340.0200130	3/4” x 130mm	AISI 304	860 MPa	690 MPa	0.421
1340.0200140	3/4” x 140mm	AISI 304	860 MPa	690 MPa	0.44
1340.0200145	3/4” x 145mm	AISI 304	860 MPa	690 MPa	0.449
1340.0200150	3/4” x 150mm	AISI 304	860 MPa	690 MPa	0.458
1340.0200160	3/4” x 160mm	AISI 304	860 MPa	690 MPa	0.477
1340.0200165	3/4” x 165mm	AISI 304	860 MPa	690 MPa	0.486
1340.0200170	3/4” x 170mm	AISI 304	860 MPa	690 MPa	0.495
1340.0200180	3/4” x 180mm	AISI 304	860 MPa	690 MPa	0.514
1340.0200185	3/4” x 185mm	AISI 304	860 MPa	690 MPa	0.523
1340.0200190	3/4” x 190mm	AISI 304	860 MPa	690 MPa	0.532
1340.0200195	3/4” x 195mm	AISI 304	860 MPa	690 MPa	0.541
1340.0200200	3/4” x 200mm	AISI 304	860 MPa	690 MPa	0.551
1340.0200210	3/4” x 210mm	AISI 304	860 MPa	690 MPa	0.569
1340.0200215	3/4” x 215mm	AISI 304	860 MPa	690 MPa	0.579
1340.0200220	3/4” x 220mm	AISI 304	860 MPa	690 MPa	0.588
1340.0200230	3/4” x 230mm	AISI 304	860 MPa	690 MPa	0.606
1340.0200235	3/4” x 235mm	AISI 304	860 MPa	690 MPa	0.616
1340.0200240	3/4” x 240mm	AISI 304	860 MPa	690 MPa	0.625
1340.0200250	3/4” x 250mm	AISI 304	860 MPa	690 MPa	0.643
1340.0200255	3/4” x 255mm	AISI 304	860 MPa	690 MPa	0.653
1340.0200260	3/4” x 260mm	AISI 304	860 MPa	690 MPa	0.662
1340.0200265	3/4” x 265mm	AISI 304	860 MPa	690 MPa	0.671
1340.0200275	3/4” x 275mm	AISI 304	860 MPa	690 MPa	0.69
1340.0200280	3/4” x 280mm	AISI 304	860 MPa	690 MPa	0.699
1340.0200285	3/4” x 285mm	AISI 304	860 MPa	690 MPa	0.708
1340.0200290	3/4” x 290mm	AISI 304	860 MPa	690 MPa	0.718
1340.0200300	3/4” x 300mm	AISI 304	860 MPa	690 MPa	0.736
1340.0200305	3/4” x 305mm	AISI 304	860 MPa	690 MPa	0.745
1340.0200310	3/4” x 310mm	AISI 304	860 MPa	690 MPa	0.773
1340.0200320	3/4” x 320mm	AISI 304	860 MPa	690 MPa	0.773
1340.0200325	3/4” x 325mm	AISI 304	860 MPa	690 MPa	0.782
1340.0200330	3/4” x 330mm	AISI 304	860 MPa	690 MPa	0.792
1340.0200335	3/4” x 335mm	AISI 304	860 MPa	690 MPa	0.801
1340.0200345	3/4” x 345mm	AISI 304	860 MPa	690 MPa	0.82
1340.0200350	3/4” x 350mm	AISI 304	860 MPa	690 MPa	0.829

Documents

3/4" UNC B8 Class 2 Stud Bolt Kit A193/A194

3/4" B8 Stud Bolt Kit 304 Stainless
