3/4" B16 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

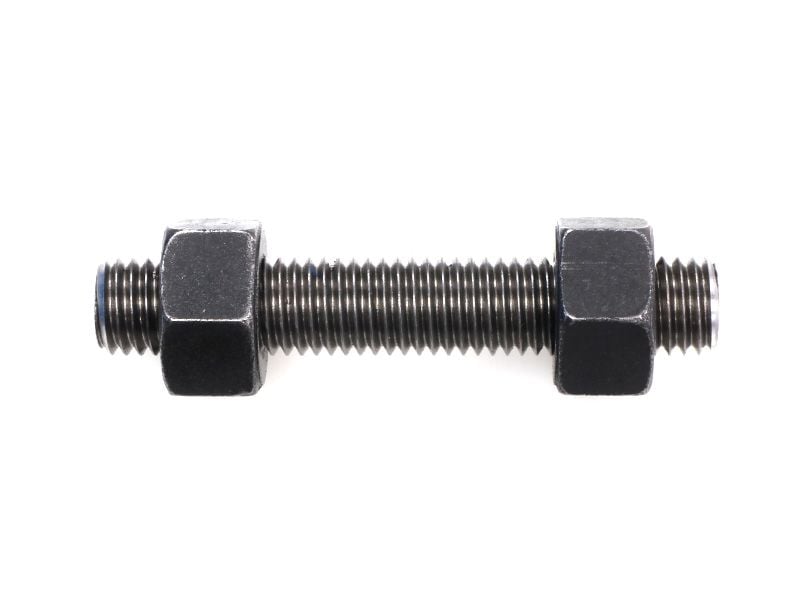

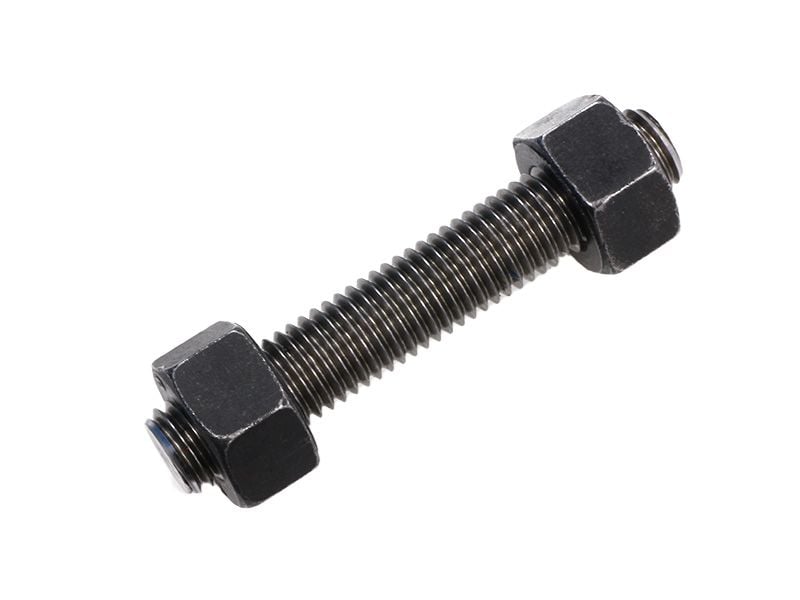

3/4" Plain B16, 7L Stud Bolt Kit

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B16SBNUU20

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
3/4” x 50mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $8.80
3/4” x 60mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.15
3/4” x 65mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.40
3/4” x 70mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.60
3/4” x 75mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.75
3/4” x 80mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $9.95
3/4” x 90mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.30
3/4” x 95mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.50
3/4” x 100mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $10.70
3/4” x 110mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.10
3/4” x 115mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.25
3/4” x 120mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.45
3/4” x 125mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.60
3/4” x 130mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $11.80
3/4” x 140mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.20
3/4” x 145mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.40
3/4” x 150mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $12.55
3/4” x 160mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $13.00
3/4” x 165mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $13.15
3/4” x 170mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $13.30
3/4” x 180mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $13.65
3/4” x 185mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $13.95
3/4” x 190mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $14.10
3/4” x 195mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $14.25
3/4” x 200mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $14.45
3/4” x 210mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $14.80
3/4” x 215mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $15.05
3/4” x 220mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $15.20
3/4” x 230mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $15.60
3/4” x 235mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $15.75
3/4” x 240mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $15.95
3/4” x 250mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $16.30
3/4” x 255mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $16.55
3/4” x 260mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $16.70
3/4” x 265mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $16.90
3/4” x 275mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $17.30
3/4” x 280mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $17.50
3/4” x 285mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $17.65
3/4” x 290mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $17.80
3/4” x 300mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $18.20
3/4” x 305mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $18.45
3/4” x 310mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $18.60
3/4” x 320mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $18.95
3/4” x 325mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $19.15
3/4” x 330mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $19.30
3/4” x 335mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $19.55
3/4” x 345mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $19.95
3/4” x 350mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $20.10

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	3/4"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B16
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1320.0200050	3/4” x 50mm	Plain	860 MPa	725 MPa	0.273
1320.0200060	3/4” x 60mm	Plain	860 MPa	725 MPa	0.291
1320.0200065	3/4” x 65mm	Plain	860 MPa	725 MPa	0.3
1320.0200070	3/4” x 70mm	Plain	860 MPa	725 MPa	0.31
1320.0200075	3/4” x 75mm	Plain	860 MPa	725 MPa	0.319
1320.0200080	3/4” x 80mm	Plain	860 MPa	725 MPa	0.328
1320.0200090	3/4” x 90mm	Plain	860 MPa	725 MPa	0.347
1320.0200095	3/4” x 95mm	Plain	860 MPa	725 MPa	0.356
1320.0200100	3/4” x 100mm	Plain	860 MPa	725 MPa	0.365
1320.0200110	3/4” x 110mm	Plain	860 MPa	725 MPa	0.384
1320.0200115	3/4” x 115mm	Plain	860 MPa	725 MPa	0.393
1320.0200120	3/4” x 120mm	Plain	860 MPa	725 MPa	0.402
1320.0200125	3/4” x 125mm	Plain	860 MPa	725 MPa	0.412
1320.0200130	3/4” x 130mm	Plain	860 MPa	725 MPa	0.421
1320.0200140	3/4” x 140mm	Plain	860 MPa	725 MPa	0.44
1320.0200145	3/4” x 145mm	Plain	860 MPa	725 MPa	0.449
1320.0200150	3/4” x 150mm	Plain	860 MPa	725 MPa	0.458
1320.0200160	3/4” x 160mm	Plain	860 MPa	725 MPa	0.477
1320.0200165	3/4” x 165mm	Plain	860 MPa	725 MPa	0.486
1320.0200170	3/4” x 170mm	Plain	860 MPa	725 MPa	0.495
1320.0200180	3/4” x 180mm	Plain	860 MPa	725 MPa	0.514
1320.0200185	3/4” x 185mm	Plain	860 MPa	725 MPa	0.523
1320.0200190	3/4” x 190mm	Plain	860 MPa	725 MPa	0.532
1320.0200195	3/4” x 195mm	Plain	860 MPa	725 MPa	0.541
1320.0200200	3/4” x 200mm	Plain	860 MPa	725 MPa	0.551
1320.0200210	3/4” x 210mm	Plain	860 MPa	725 MPa	0.569
1320.0200215	3/4” x 215mm	Plain	860 MPa	725 MPa	0.579
1320.0200220	3/4” x 220mm	Plain	860 MPa	725 MPa	0.588
1320.0200230	3/4” x 230mm	Plain	860 MPa	725 MPa	0.606
1320.0200235	3/4” x 235mm	Plain	860 MPa	725 MPa	0.616
1320.0200240	3/4” x 240mm	Plain	860 MPa	725 MPa	0.625
1320.0200250	3/4” x 250mm	Plain	860 MPa	725 MPa	0.643
1320.0200255	3/4” x 255mm	Plain	860 MPa	725 MPa	0.653
1320.0200260	3/4” x 260mm	Plain	860 MPa	725 MPa	0.662
1320.0200265	3/4” x 265mm	Plain	860 MPa	725 MPa	0.671
1320.0200275	3/4” x 275mm	Plain	860 MPa	725 MPa	0.69
1320.0200280	3/4” x 280mm	Plain	860 MPa	725 MPa	0.699
1320.0200285	3/4” x 285mm	Plain	860 MPa	725 MPa	0.708
1320.0200290	3/4” x 290mm	Plain	860 MPa	725 MPa	0.718
1320.0200300	3/4” x 300mm	Plain	860 MPa	725 MPa	0.736
1320.0200305	3/4” x 305mm	Plain	860 MPa	725 MPa	0.745
1320.0200310	3/4” x 310mm	Plain	860 MPa	725 MPa	0.773
1320.0200320	3/4” x 320mm	Plain	860 MPa	725 MPa	0.773
1320.0200325	3/4” x 325mm	Plain	860 MPa	725 MPa	0.782
1320.0200330	3/4” x 330mm	Plain	860 MPa	725 MPa	0.792
1320.0200335	3/4” x 335mm	Plain	860 MPa	725 MPa	0.801
1320.0200345	3/4” x 345mm	Plain	860 MPa	725 MPa	0.82
1320.0200350	3/4” x 350mm	Plain	860 MPa	725 MPa	0.829

Documents

3/4" UNC B16/7L Stud Bolt Kit A193/A194

3/4" Plain B16, 7L Stud Bolt Kit
