2" L7 Inorganic Zinc 'Esso Spec' Stud Bolts

Skip to the beginning of the images gallery

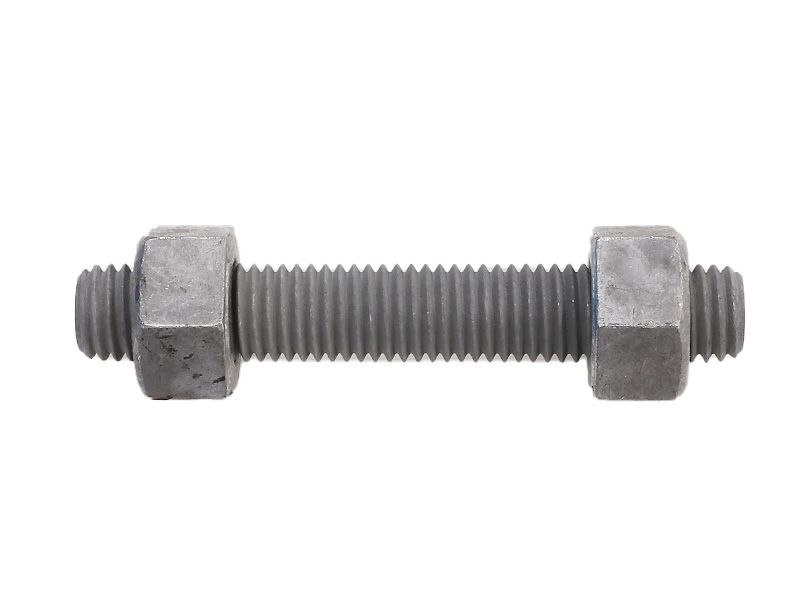

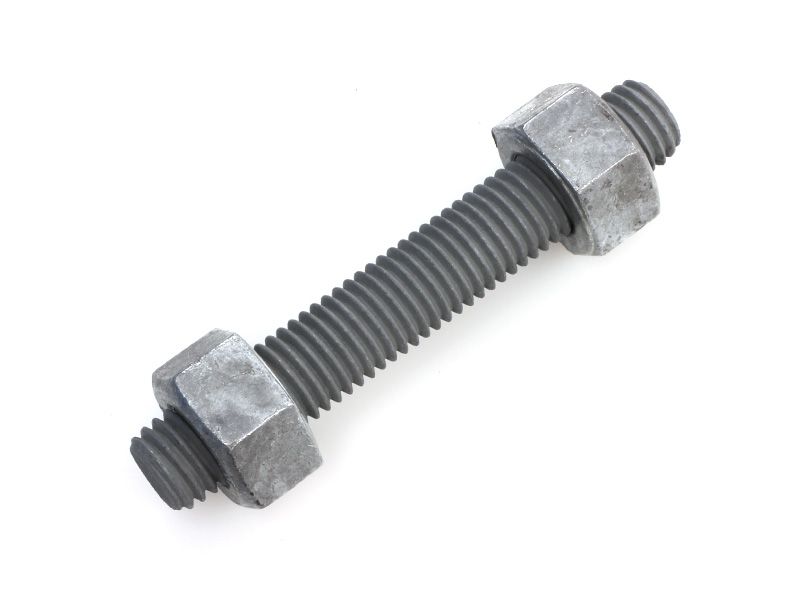

2" Inorganic Zinc Silicate L7 Stud Bolt Kit

Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.

Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6L7SBN8IZS50

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
2” x 355mm UN8 L7 Studbolt A320, 7L A194 IZS From $237.55
2” x 360mm UN8 L7 Studbolt A320, 7L A194 IZS From $239.50
2” x 370mm UN8 L7 Studbolt A320, 7L A194 IZS From $243.30
2” x 375mm UN8 L7 Studbolt A320, 7L A194 IZS From $245.25
2” x 380mm UN8 L7 Studbolt A320, 7L A194 IZS From $247.05
2” x 385mm UN8 L7 Studbolt A320, 7L A194 IZS From $249.05
2” x 395mm UN8 L7 Studbolt A320, 7L A194 IZS From $252.85
2” x 400mm UN8 L7 Studbolt A320, 7L A194 IZS From $254.75
2” x 405mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 415mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 420mm UN8 L7 Studbolt A320, 7L A194 IZS From $262.40
2” x 425mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 430mm UN8 L7 Studbolt A320, 7L A194 IZS From $266.20
2” x 440mm UN8 L7 Studbolt A320, 7L A194 IZS From $269.95
2” x 445mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 450mm UN8 L7 Studbolt A320, 7L A194 IZS From $273.75
2” x 455mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 465mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 470mm UN8 L7 Studbolt A320, 7L A194 IZS From $281.35
2” x 475mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 485mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 490mm UN8 L7 Studbolt A320, 7L A194 IZS From $288.95
2” x 495mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
2” x 500mm UN8 L7 Studbolt A320, 7L A194 IZS From $292.80
2” x 510mm UN8 L7 Studbolt A320, 7L A194 IZS From $296.55

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	2"
Thread Type	UN8
Bolt / Stud Property	ASTM A320 L7
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Inorganic Zinc Silicate (IZS)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1302.0500355	2” x 355mm UN8	IZS	860 MPa	725 MPa
1302.0500360	2” x 360mm UN8	IZS	860 MPa	725 MPa
1302.0500370	2” x 370mm UN8	IZS	860 MPa	725 MPa
1302.0500375	2” x 375mm UN8	IZS	860 MPa	725 MPa
1302.0500380	2” x 380mm UN8	IZS	860 MPa	725 MPa
1302.0500385	2” x 385mm UN8	IZS	860 MPa	725 MPa
1302.0500395	2” x 395mm UN8	IZS	860 MPa	725 MPa
1302.0500400	2” x 400mm UN8	IZS	860 MPa	725 MPa
1302.0500405	2” x 405mm UN8	IZS	860 MPa	725 MPa
1302.0500415	2” x 415mm UN8	IZS	860 MPa	725 MPa
1302.0500420	2” x 420mm UN8	IZS	860 MPa	725 MPa
1302.0500425	2” x 425mm UN8	IZS	860 MPa	725 MPa
1302.0500430	2” x 430mm UN8	IZS	860 MPa	725 MPa
1302.0500440	2” x 440mm UN8	IZS	860 MPa	725 MPa
1302.0500445	2” x 445mm UN8	IZS	860 MPa	725 MPa
1302.0500450	2” x 450mm UN8	IZS	860 MPa	725 MPa
1302.0500455	2” x 455mm UN8	IZS	860 MPa	725 MPa
1302.0500465	2” x 465mm UN8	IZS	860 MPa	725 MPa
1302.0500470	2” x 470mm UN8	IZS	860 MPa	725 MPa
1302.0500475	2” x 475mm UN8	IZS	860 MPa	725 MPa
1302.0500485	2” x 485mm UN8	IZS	860 MPa	725 MPa
1302.0500490	2” x 490mm UN8	IZS	860 MPa	725 MPa
1302.0500495	2” x 495mm UN8	IZS	860 MPa	725 MPa
1302.0500500	2” x 500mm UN8	IZS	860 MPa	725 MPa
1302.0500510	2” x 510mm UN8	IZS	860 MPa	725 MPa

Documents

2" UN8 IZS L7/Gr7 Stud Bolt Kit A320/A194

2" Inorganic Zinc Silicate L7 Stud Bolt Kit
