1" B8 CL2 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

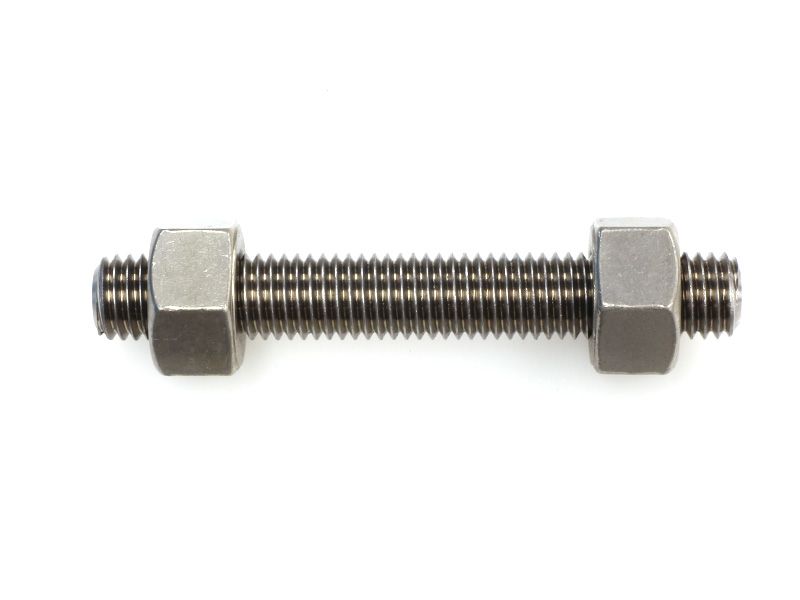

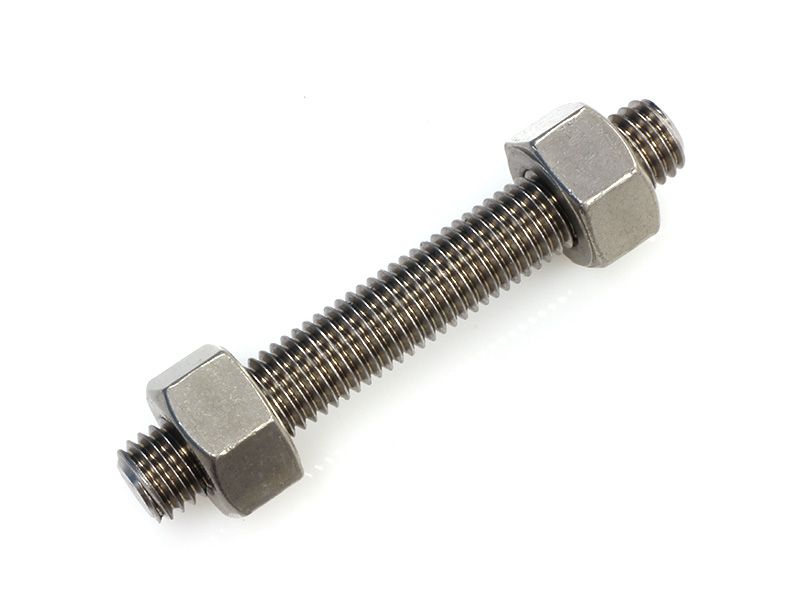

1" B8 Stud Bolt Kit 304 Stainless

Class 2 AISI 304 strain hardened studs.
Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x Gr8 stainless heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B8SBNUC225

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1” x 75mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $29.70
1” x 80mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $30.10
1” x 90mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $31.05
1” x 95mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $31.50
1” x 100mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $31.95
1” x 110mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $32.85
1” x 115mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $33.30
1” x 120mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $33.70
1” x 125mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $34.20
1” x 130mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $34.65
1” x 140mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $35.55
1” x 145mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $36.00
1” x 150mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $36.45
1” x 160mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $37.35
1” x 165mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $37.85
1” x 170mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $38.25
1” x 180mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $39.15
1” x 185mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $39.65
1” x 190mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $40.05
1” x 195mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $40.50
1” x 200mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $40.95
1” x 210mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $41.90
1” x 215mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $42.35
1” x 220mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $42.75
1” x 230mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $43.65
1” x 235mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $44.15
1” x 240mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $44.55
1” x 250mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $45.55
1” x 255mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $45.95
1” x 260mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $46.45
1” x 265mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $46.85
1” x 275mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $47.75
1” x 280mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $48.20
1” x 285mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $48.65
1” x 290mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $49.15
1” x 300mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $50.05
1” x 305mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $50.45
1” x 310mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $50.95
1” x 320mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $51.85
1” x 325mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $52.25
1” x 330mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $52.75
1” x 335mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $53.20
1” x 345mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $54.10
1” x 350mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $54.55
1” x 355mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $54.95
1” x 360mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $55.45
1” x 370mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $56.40
1” x 375mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $56.80
1” x 380mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $57.25
1” x 385mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $57.70
1” x 395mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $58.60
1” x 400mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $59.05
1” x 405mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $59.55
1” x 415mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $60.40
1” x 420mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $60.90
1” x 425mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $61.30
1” x 430mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $61.80
1” x 440mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $62.65
1” x 445mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $63.20
1” x 450mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $63.60
1” x 455mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $64.10
1” x 465mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $64.90
1” x 470mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $65.40
1” x 475mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $65.85
1” x 485mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $66.75
1” x 490mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $67.20
1” x 495mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $67.70
1” x 500mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $68.10
1” x 510mm UNC B8 Studbolt A193 CL2, Gr8 A194 Nuts, Stainless AISI 304 From $69.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	1"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties	ASTM A194 Gr 8
Material / Finish	Stainless AISI 304 Steel
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1340.0250075	1” x 75 mm	AISI 304	795 MPa	550 MPa	0.63
1340.0250080	1” x 80 mm	AISI 304	795 MPa	550 MPa	0.646
1340.0250090	1” x 90 mm	AISI 304	795 MPa	550 MPa	0.68
1340.0250095	1” x 95 mm	AISI 304	795 MPa	550 MPa	0.696
1340.0250100	1” x 100 mm	AISI 304	795 MPa	550 MPa	0.713
1340.0250110	1” x 110 mm	AISI 304	795 MPa	550 MPa	0.746
1340.0250115	1” x 115 mm	AISI 304	795 MPa	550 MPa	0.763
1340.0250120	1” x 120 mm	AISI 304	795 MPa	550 MPa	0.78
1340.0250125	1” x 125 mm	AISI 304	795 MPa	550 MPa	0.796
1340.0250130	1” x 130 mm	AISI 304	795 MPa	550 MPa	0.813
1340.0250140	1” x 140 mm	AISI 304	795 MPa	550 MPa	0.846
1340.0250145	1” x 145 mm	AISI 304	795 MPa	550 MPa	0.863
1340.0250150	1” x 150 mm	AISI 304	795 MPa	550 MPa	0.88
1340.0250160	1” x 160 mm	AISI 304	795 MPa	550 MPa	0.913
1340.0250165	1” x 165 mm	AISI 304	795 MPa	550 MPa	0.929
1340.0250170	1” x 170 mm	AISI 304	795 MPa	550 MPa	0.946
1340.0250180	1” x 180 mm	AISI 304	795 MPa	550 MPa	0.979
1340.0250185	1” x 185 mm	AISI 304	795 MPa	550 MPa	0.996
1340.0250190	1” x 190 mm	AISI 304	795 MPa	550 MPa	1.013
1340.0250195	1” x 195 mm	AISI 304	795 MPa	550 MPa	1.029
1340.0250200	1” x 200 mm	AISI 304	795 MPa	550 MPa	1.046
1340.0250210	1” x 210 mm	AISI 304	795 MPa	550 MPa	1.079
1340.0250215	1” x 215 mm	AISI 304	795 MPa	550 MPa	1.096
1340.0250220	1” x 220 mm	AISI 304	795 MPa	550 MPa	1.113
1340.0250230	1” x 230 mm	AISI 304	795 MPa	550 MPa	1.146
1340.0250235	1” x 235 mm	AISI 304	795 MPa	550 MPa	1.163
1340.0250240	1” x 240 mm	AISI 304	795 MPa	550 MPa	1.179
1340.0250250	1” x 250 mm	AISI 304	795 MPa	550 MPa	1.213
1340.0250255	1” x 255 mm	AISI 304	795 MPa	550 MPa	1.229
1340.0250260	1” x 260 mm	AISI 304	795 MPa	550 MPa	1.246
1340.0250265	1” x 265 mm	AISI 304	795 MPa	550 MPa	1.262
1340.0250275	1” x 275 mm	AISI 304	795 MPa	550 MPa	1.296
1340.0250280	1” x 280 mm	AISI 304	795 MPa	550 MPa	1.312
1340.0250285	1” x 285 mm	AISI 304	795 MPa	550 MPa	1.329
1340.0250290	1” x 290 mm	AISI 304	795 MPa	550 MPa	1.346
1340.0250300	1” x 300 mm	AISI 304	795 MPa	550 MPa	1.379
1340.0250305	1” x 305 mm	AISI 304	795 MPa	550 MPa	1.396
1340.0250310	1” x 310 mm	AISI 304	795 MPa	550 MPa	1.412
1340.0250320	1” x 320 mm	AISI 304	795 MPa	550 MPa	1.446
1340.0250325	1” x 325 mm	AISI 304	795 MPa	550 MPa	1.462
1340.0250330	1” x 330 mm	AISI 304	795 MPa	550 MPa	1.479
1340.0250335	1” x 335 mm	AISI 304	795 MPa	550 MPa	1.496
1340.0250345	1” x 345 mm	AISI 304	795 MPa	550 MPa	1.529
1340.0250350	1” x 350 mm	AISI 304	795 MPa	550 MPa	1.546
1340.0250355	1” x 355 mm	AISI 304	795 MPa	550 MPa	1.562
1340.0250360	1” x 360 mm	AISI 304	795 MPa	550 MPa	1.579
1340.0250370	1” x 370 mm	AISI 304	795 MPa	550 MPa	1.612
1340.0250375	1” x 375 mm	AISI 304	795 MPa	550 MPa	1.629
1340.0250380	1” x 380 mm	AISI 304	795 MPa	550 MPa	1.645
1340.0250385	1” x 385 mm	AISI 304	795 MPa	550 MPa	1.662
1340.0250395	1” x 395 mm	AISI 304	795 MPa	550 MPa	1.695
1340.0250400	1” x 400 mm	AISI 304	795 MPa	550 MPa	1.712
1340.0250405	1” x 405 mm	AISI 304	795 MPa	550 MPa	1.729
1340.0250415	1” x 415 mm	AISI 304	795 MPa	550 MPa	1.762
1340.0250420	1” x 420 mm	AISI 304	795 MPa	550 MPa	1.779
1340.0250425	1” x 425 mm	AISI 304	795 MPa	550 MPa	1.795
1340.0250430	1” x 430 mm	AISI 304	795 MPa	550 MPa	1.812
1340.0250440	1” x 440 mm	AISI 304	795 MPa	550 MPa	1.845
1340.0250445	1” x 445 mm	AISI 304	795 MPa	550 MPa	1.862
1340.0250450	1” x 450 mm	AISI 304	795 MPa	550 MPa	1.879
1340.0250455	1” x 455 mm	AISI 304	795 MPa	550 MPa	1.895
1340.0250465	1” x 465 mm	AISI 304	795 MPa	550 MPa	1.928
1340.0250470	1” x 470 mm	AISI 304	795 MPa	550 MPa	1.945
1340.0250475	1” x 475 mm	AISI 304	795 MPa	550 MPa	1.962
1340.0250485	1” x 485 mm	AISI 304	795 MPa	550 MPa	1.995
1340.0250490	1” x 490 mm	AISI 304	795 MPa	550 MPa	2.012
1340.0250495	1” x 495 mm	AISI 304	795 MPa	550 MPa	2.028
1340.0250500	1” x 500 mm	AISI 304	795 MPa	550 MPa	2.045
1340.0250510	1” x 510 mm	AISI 304	795 MPa	550 MPa	2.078

Documents

1" UNC B8 Class 2 Stud Bolt Kit A193/A194

1" B8 Stud Bolt Kit 304 Stainless
