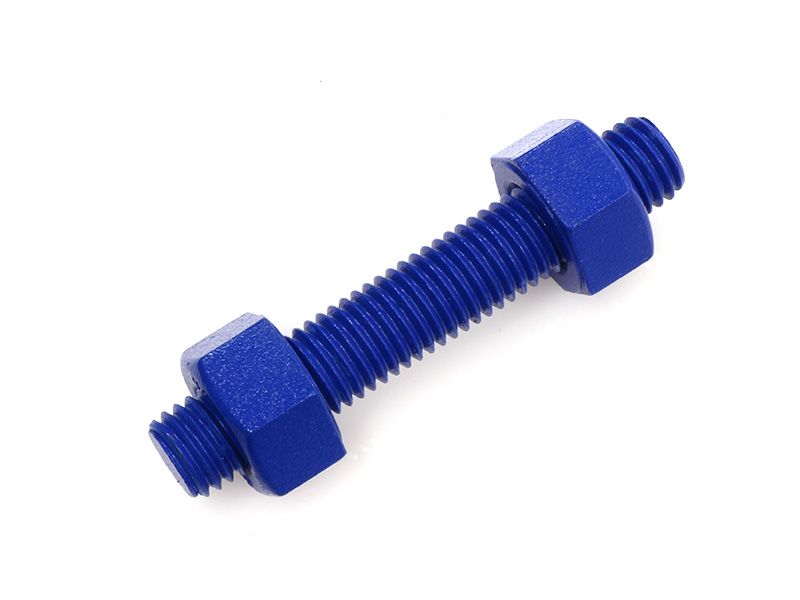

1" Xylan B7, 2H Stud Bolt Kit

Xylan blue is a fluoropolymer (PTFE) coating designed to provide corrosion protection, lubrication, wear resistance and non-stick properties in a variety industries and applications.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6B7SBNUXB25

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1” x 75mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $0.00
1” x 80mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $0.00
1” x 90mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $19.80
1” x 95mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $20.20
1” x 100mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $20.60
1” x 110mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $21.35
1” x 115mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $21.80
1” x 120mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $22.15
1” x 125mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $22.55
1” x 130mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $22.95
1” x 140mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $23.75
1” x 145mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $24.15
1” x 150mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $24.55
1” x 160mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $25.35
1” x 165mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $25.70
1” x 170mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $26.10
1” x 180mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $26.90
1” x 185mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $27.35
1” x 190mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $27.70
1” x 195mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $28.10
1” x 200mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $28.50
1” x 210mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $29.25
1” x 215mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $29.70
1” x 220mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $30.10
1” x 230mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $30.90
1” x 235mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $31.25
1” x 240mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $31.65
1” x 250mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $32.45
1” x 255mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $32.85
1” x 260mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $33.25
1” x 265mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $33.65
1” x 275mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $34.45
1” x 280mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $34.80
1” x 285mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $35.25
1” x 290mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $35.60
1” x 300mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $36.40
1” x 305mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $36.80
1” x 310mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $37.20
1” x 320mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $38.00
1” x 325mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $38.45
1” x 330mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $38.80
1” x 335mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $39.15
1” x 345mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $39.95
1” x 350mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $40.40
1” x 355mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $40.80
1” x 360mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $41.20
1” x 370mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $42.00
1” x 375mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $42.35
1” x 380mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $42.70
1” x 385mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $43.15
1” x 395mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $44.00
1” x 400mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $44.35
1” x 405mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $44.75
1” x 415mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $45.55
1” x 420mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $45.90
1” x 425mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $46.30
1” x 430mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $46.70
1” x 440mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $47.55
1” x 445mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $47.90
1” x 450mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $48.30
1” x 455mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $48.70
1” x 465mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $49.45
1” x 470mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $49.85
1” x 475mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $50.25
1” x 485mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $51.10
1” x 490mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $51.45
1” x 495mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $51.90
1” x 500mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $52.25
1” x 510mm UNC B7 Studbolt A193, 2H A194 Xylan Blue From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	1"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B7
Nut Properties	ASTM A194 Gr 2H
Material / Finish	Xylan Blue (PTFE)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1283.0250075	1” x 75mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250080	1” x 80mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250090	1” x 90mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250095	1” x 95mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250100	1” x 100mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250110	1” x 110mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250115	1” x 115mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250120	1” x 120mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250125	1” x 125mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250130	1” x 130mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250140	1” x 140mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250145	1” x 145mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250150	1” x 150mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250160	1” x 160mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250165	1” x 165mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250170	1” x 170mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250180	1” x 180mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250185	1” x 185mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250190	1” x 190mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250195	1” x 195mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250200	1” x 200mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250210	1” x 210mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250215	1” x 215mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250220	1” x 220mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250230	1” x 230mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250235	1” x 235mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250240	1” x 240mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250250	1” x 250mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250255	1” x 255mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250260	1” x 260mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250265	1” x 265mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250275	1” x 275mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250280	1” x 280mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250285	1” x 285mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250290	1” x 290mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250300	1” x 300mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250305	1” x 305mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250310	1” x 310mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250320	1” x 320mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250325	1” x 325mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250330	1” x 330mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250335	1” x 335mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250345	1” x 345mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250350	1” x 350mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250355	1” x 355mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250360	1” x 360mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250370	1” x 370mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250375	1” x 375mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250380	1” x 380mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250385	1” x 385mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250395	1” x 395mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250400	1” x 400mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250405	1” x 405mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250415	1” x 415mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250420	1” x 420mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250425	1” x 425mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250430	1” x 430mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250440	1” x 440mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250445	1” x 445mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250450	1” x 450mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250455	1” x 455mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250465	1” x 465mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250470	1” x 470mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250475	1” x 475mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250485	1” x 485mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250490	1” x 490mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250495	1” x 495mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250500	1” x 500mm UNC	Xylan Blue	860 MPa	720 MPa
1283.0250510	1” x 510mm UNC	Xylan Blue	860 MPa	720 MPa
