1" B16 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

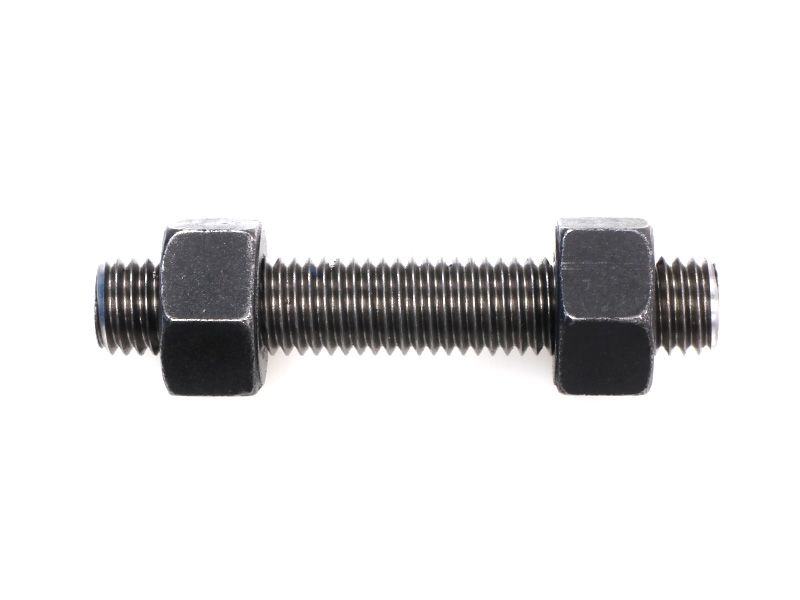

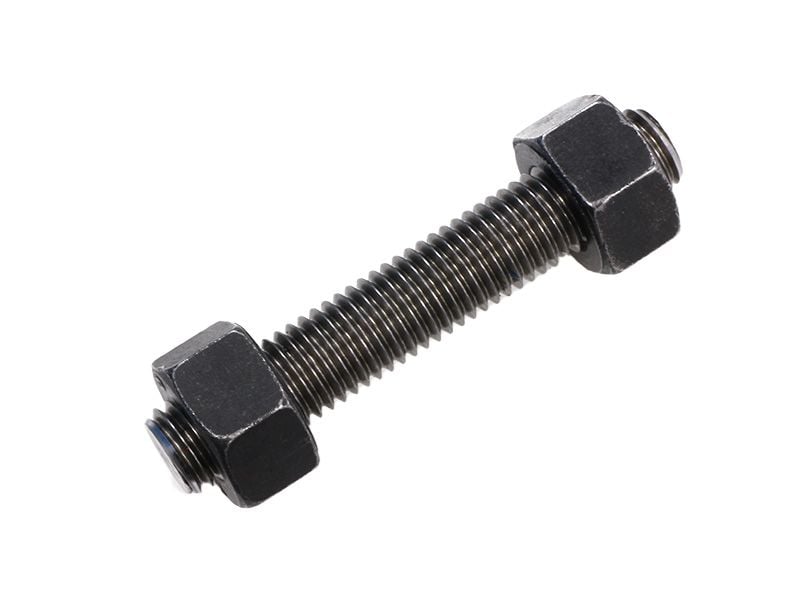

1" Plain B16, 7L Stud Bolt Kit

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B16SBNUU25

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1” x 75mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $20.05
1” x 80mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $20.35
1” x 90mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $21.10
1” x 95mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $21.45
1” x 100mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $21.90
1” x 110mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $22.50
1” x 115mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $23.00
1” x 120mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $23.30
1” x 125mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $23.70
1” x 130mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $24.05
1” x 140mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $24.80
1” x 145mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $25.10
1” x 150mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $25.45
1” x 160mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $26.20
1” x 165mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $26.60
1” x 170mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $26.95
1” x 180mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $27.70
1” x 185mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $28.05
1” x 190mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $28.40
1” x 195mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $28.80
1” x 200mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $29.15
1” x 210mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $29.85
1” x 215mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $30.30
1” x 220mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $30.60
1” x 230mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $31.35
1” x 235mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $31.70
1” x 240mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $32.10
1” x 250mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $32.75
1” x 255mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $33.20
1” x 260mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $33.55
1” x 265mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $33.90
1” x 275mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $34.65
1” x 280mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $35.00
1” x 285mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $35.35
1” x 290mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $35.75
1” x 300mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $36.45
1” x 305mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $36.85
1” x 310mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $37.15
1” x 320mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $37.90
1” x 325mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $38.25
1” x 330mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $38.65
1” x 335mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $39.00
1” x 345mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $39.75
1” x 350mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $40.05
1” x 355mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $40.55
1” x 360mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $40.85
1” x 370mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $41.60
1” x 375mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $41.95
1” x 380mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $42.30
1” x 385mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $42.70
1” x 395mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $43.40
1” x 400mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $43.75
1” x 405mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $44.15
1” x 415mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $44.85
1” x 420mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $45.25
1” x 425mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $45.55
1” x 430mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $45.95
1” x 440mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $46.65
1” x 445mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $47.05
1” x 450mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $47.40
1” x 455mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $47.85
1” x 465mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $48.50
1” x 470mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $48.90
1” x 475mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $49.25
1” x 485mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $50.00
1” x 490mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $50.30
1” x 495mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $50.70
1” x 500mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $51.10
1” x 510mm UNC B16 Studbolt A193, Gr7 A194 Nuts Plain From $51.75

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	1"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B16
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1320.0250075	1” x 75mm	Plain	860 MPa	725 MPa	0.63
1320.0250080	1” x 80mm	Plain	860 MPa	725 MPa	0.646
1320.0250090	1” x 90mm	Plain	860 MPa	725 MPa	0.68
1320.0250095	1” x 95mm	Plain	860 MPa	725 MPa	0.696
1320.0250100	1” x 100mm	Plain	860 MPa	725 MPa	0.713
1320.0250110	1” x 110mm	Plain	860 MPa	725 MPa	0.746
1320.0250115	1” x 115mm	Plain	860 MPa	725 MPa	0.763
1320.0250120	1” x 120mm	Plain	860 MPa	725 MPa	0.78
1320.0250125	1” x 125mm	Plain	860 MPa	725 MPa	0.796
1320.0250130	1” x 130mm	Plain	860 MPa	725 MPa	0.813
1320.0250140	1” x 140mm	Plain	860 MPa	725 MPa	0.846
1320.0250145	1” x 145mm	Plain	860 MPa	725 MPa	0.863
1320.0250150	1” x 150mm	Plain	860 MPa	725 MPa	0.88
1320.0250160	1” x 160mm	Plain	860 MPa	725 MPa	0.913
1320.0250165	1” x 165mm	Plain	860 MPa	725 MPa	0.929
1320.0250170	1” x 170mm	Plain	860 MPa	725 MPa	0.946
1320.0250180	1” x 180mm	Plain	860 MPa	725 MPa	0.979
1320.0250185	1” x 185mm	Plain	860 MPa	725 MPa	0.996
1320.0250190	1” x 190mm	Plain	860 MPa	725 MPa	1.013
1320.0250195	1” x 195mm	Plain	860 MPa	725 MPa	1.029
1320.0250200	1” x 200mm	Plain	860 MPa	725 MPa	1.046
1320.0250210	1” x 210mm	Plain	860 MPa	725 MPa	1.079
1320.0250215	1” x 215mm	Plain	860 MPa	725 MPa	1.096
1320.0250220	1” x 220mm	Plain	860 MPa	725 MPa	1.113
1320.0250230	1” x 230mm	Plain	860 MPa	725 MPa	1.146
1320.0250235	1” x 235mm	Plain	860 MPa	725 MPa	1.163
1320.0250240	1” x 240mm	Plain	860 MPa	725 MPa	1.179
1320.0250250	1” x 250mm	Plain	860 MPa	725 MPa	1.213
1320.0250255	1” x 255mm	Plain	860 MPa	725 MPa	1.229
1320.0250260	1” x 260mm	Plain	860 MPa	725 MPa	1.246
1320.0250265	1” x 265mm	Plain	860 MPa	725 MPa	1.262
1320.0250275	1” x 275mm	Plain	860 MPa	725 MPa	1.296
1320.0250280	1” x 280mm	Plain	860 MPa	725 MPa	1.312
1320.0250285	1” x 285mm	Plain	860 MPa	725 MPa	1.329
1320.0250290	1” x 290mm	Plain	860 MPa	725 MPa	1.346
1320.0250300	1” x 300mm	Plain	860 MPa	725 MPa	1.379
1320.0250305	1” x 305mm	Plain	860 MPa	725 MPa	1.396
1320.0250310	1” x 310mm	Plain	860 MPa	725 MPa	1.412
1320.0250320	1” x 320mm	Plain	860 MPa	725 MPa	1.446
1320.0250325	1” x 325mm	Plain	860 MPa	725 MPa	1.462
1320.0250330	1” x 330mm	Plain	860 MPa	725 MPa	1.479
1320.0250335	1” x 335mm	Plain	860 MPa	725 MPa	1.496
1320.0250345	1” x 345mm	Plain	860 MPa	725 MPa	1.529
1320.0250350	1” x 350mm	Plain	860 MPa	725 MPa	1.546
1320.0250355	1” x 355mm	Plain	860 MPa	725 MPa	1.562
1320.0250360	1” x 360mm	Plain	860 MPa	725 MPa	1.579
1320.0250370	1” x 370mm	Plain	860 MPa	725 MPa	1.612
1320.0250375	1” x 375mm	Plain	860 MPa	725 MPa	1.629
1320.0250380	1” x 380mm	Plain	860 MPa	725 MPa	1.645
1320.0250385	1” x 385mm	Plain	860 MPa	725 MPa	1.662
1320.0250395	1” x 395mm	Plain	860 MPa	725 MPa	1.695
1320.0250400	1” x 400mm	Plain	860 MPa	725 MPa	1.712
1320.0250405	1” x 405mm	Plain	860 MPa	725 MPa	1.729
1320.0250415	1” x 415mm	Plain	860 MPa	725 MPa	1.762
1320.0250420	1” x 420mm	Plain	860 MPa	725 MPa	1.779
1320.0250425	1” x 425mm	Plain	860 MPa	725 MPa	1.795
1320.0250430	1” x 430mm	Plain	860 MPa	725 MPa	1.812
1320.0250440	1” x 440mm	Plain	860 MPa	725 MPa	1.845
1320.0250445	1” x 445mm	Plain	860 MPa	725 MPa	1.862
1320.0250450	1” x 450mm	Plain	860 MPa	725 MPa	1.879
1320.0250455	1” x 455mm	Plain	860 MPa	725 MPa	1.895
1320.0250465	1” x 465mm	Plain	860 MPa	725 MPa	1.928
1320.0250470	1” x 470mm	Plain	860 MPa	725 MPa	1.945
1320.0250475	1” x 475mm	Plain	860 MPa	725 MPa	1.962
1320.0250485	1” x 485mm	Plain	860 MPa	725 MPa	1.995
1320.0250490	1” x 490mm	Plain	860 MPa	725 MPa	2.012
1320.0250495	1” x 495mm	Plain	860 MPa	725 MPa	2.028
1320.0250500	1” x 500mm	Plain	860 MPa	725 MPa	2.045
1320.0250510	1” x 510mm	Plain	860 MPa	725 MPa	2.078

Documents

1" UNC B16/7L Stud Bolt Kit A193/A194

1" Plain B16, 7L Stud Bolt Kit
