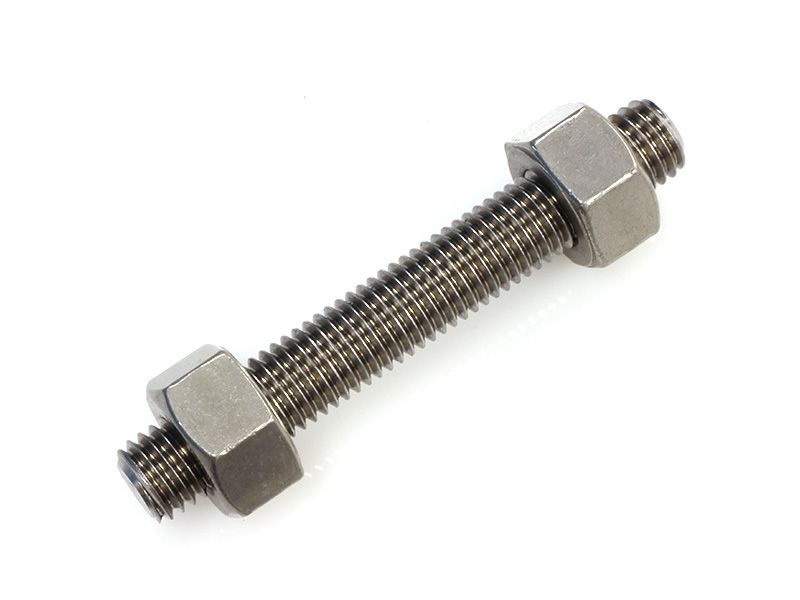

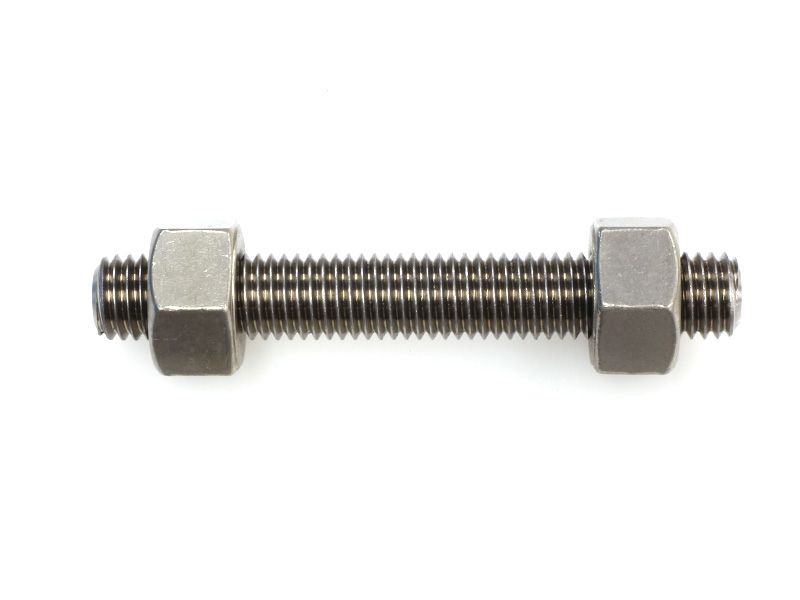

1-5/8" UN8 B8M Class 2 Stud Bolt Kit A193/A194

  • Home
  • 1-5/8" B8M Stud Bolt Kit 316 Stainless

1-5/8" B8M Stud Bolt Kit 316 Stainless

  • Class 2 AISI 316 strain hardened studs.
  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2x Gr8M stainless heavy hex nuts.
  • ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
SKU 6B8MSBN8C241
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge 1-5/8"
Thread Type UN8
Bolt / Stud Property ASTM A193 B8M Class 2 (AISI 316) Strain Hardened
Nut Properties ASTM A194 Gr 8M
Material / Finish Stainless AISI 316 Steel
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] Weight [ kg ]
1360.0410150 1-5/8” x 150mm AISI 316 - - 2.972
1360.0410160 1-5/8” x 160mm AISI 316 - - 3.066
1360.0410165 1-5/8” x 165mm AISI 316 - - 3.113
1360.0410170 1-5/8” x 170mm AISI 316 - - 3.160
1360.0410180 1-5/8” x 180mm AISI 316 - - 3.254
1360.0410185 1-5/8” x 185mm AISI 316 - - 3.301
1360.0410190 1-5/8” x 190mm AISI 316 - - 3.348
1360.0410195 1-5/8” x 195mm AISI 316 - - 3.395
1360.0410200 1-5/8” x 200mm AISI 316 - - 3.442
1360.0410210 1-5/8” x 210mm AISI 316 - - 3.536
1360.0410215 1-5/8” x 215mm AISI 316 - - 3.583
1360.0410220 1-5/8” x 220mm AISI 316 - - 3.630
1360.0410230 1-5/8” x 230mm AISI 316 - - 3.724
1360.0410235 1-5/8” x 235mm AISI 316 - - 3.771
1360.0410240 1-5/8” x 240mm AISI 316 - - 3.819
1360.0410250 1-5/8” x 250mm AISI 316 - - 3.913
1360.0410255 1-5/8” x 255mm AISI 316 - - 3.960
1360.0410260 1-5/8” x 260mm AISI 316 - - 4.007
1360.0410265 1-5/8” x 265mm AISI 316 - - 4.054
1360.0410275 1-5/8” x 275mm AISI 316 - - 4.148
1360.0410280 1-5/8” x 280mm AISI 316 - - 4.195
1360.0410285 1-5/8” x 285mm AISI 316 - - 4.242
1360.0410290 1-5/8” x 290mm AISI 316 - - 4.289
1360.0410300 1-5/8” x 300mm AISI 316 - - 4.383
1360.0410305 1-5/8” x 305mm AISI 316 - - 4.430
1360.0410310 1-5/8” x 310mm AISI 316 - - 4.477
1360.0410320 1-5/8” x 320mm AISI 316 - - 4.571
1360.0410325 1-5/8” x 325mm AISI 316 - - 4.618
1360.0410330 1-5/8” x 330mm AISI 316 - - 4.665
1360.0410335 1-5/8” x 335mm AISI 316 - - 4.713
1360.0410345 1-5/8” x 345mm AISI 316 - - 4.807
1360.0410350 1-5/8” x 350mm AISI 316 - - 4.854
1360.0410375 1-5/8” x 375mm AISI 316 - - 5.089
1360.0410380 1-5/8” x 380mm AISI 316 - - 5.136
1360.0410385 1-5/8” x 385mm AISI 316 - - 5.183
1360.0410355 1-5/8” x 355mm AISI 316 - - 4.901
1360.0410360 1-5/8” x 360mm AISI 316 - - 4.948
1360.0410370 1-5/8” x 370mm AISI 316 - - 5.042
1360.0410395 1-5/8” x 395mm AISI 316 - - 5.277
1360.0410400 1-5/8” x 400mm AISI 316 - - 5.324
1360.0410405 1-5/8” x 405mm AISI 316 - - 5.371
1360.0410415 1-5/8” x 415mm AISI 316 - - 5.465
1360.0410420 1-5/8” x 420mm AISI 316 - - 5.512
1360.0410425 1-5/8” x 425mm AISI 316 - - 5.559
1360.0410430 1-5/8” x 430mm AISI 316 - - 5.607
1360.0410440 1-5/8” x 440mm AISI 316 - - 5.701
1360.0410445 1-5/8” x 445mm AISI 316 - - 5.748
1360.0410450 1-5/8” x 450mm AISI 316 - - 5.795
1360.0410455 1-5/8” x 455mm AISI 316 - - 5.842
1360.0410465 1-5/8” x 465mm AISI 316 - - 5.936
1360.0410470 1-5/8” x 470mm AISI 316 - - 5.983
1360.0410475 1-5/8” x 475mm AISI 316 - - 6.030
1360.0410485 1-5/8” x 485mm AISI 316 - - 6.124
1360.0410490 1-5/8” x 490mm AISI 316 - - 6.171
1360.0410495 1-5/8” x 495mm AISI 316 - - 6.218
1360.0410500 1-5/8” x 500mm AISI 316 - - 6.265
1360.0410510 1-5/8” x 510mm AISI 316 - - 6.359
