1-3/4" UN8 B8 Class 2 Stud Bolt Kit A193/A194

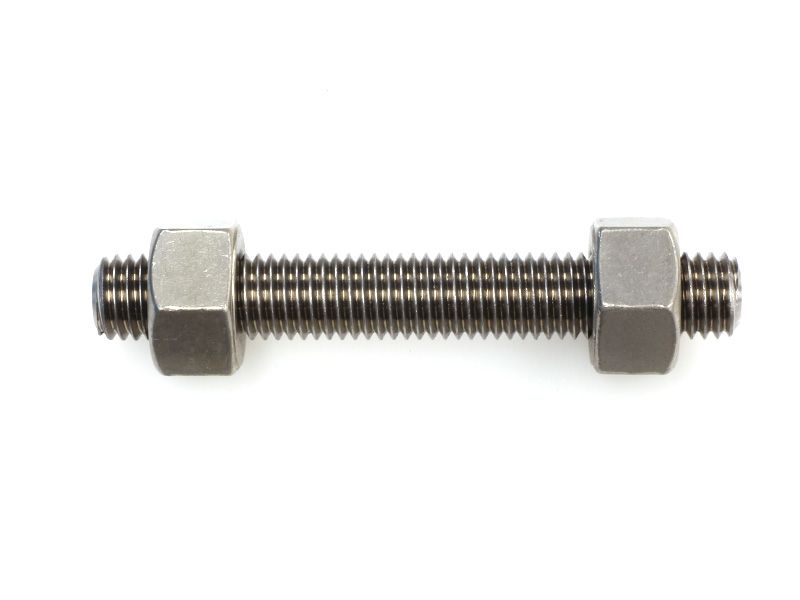

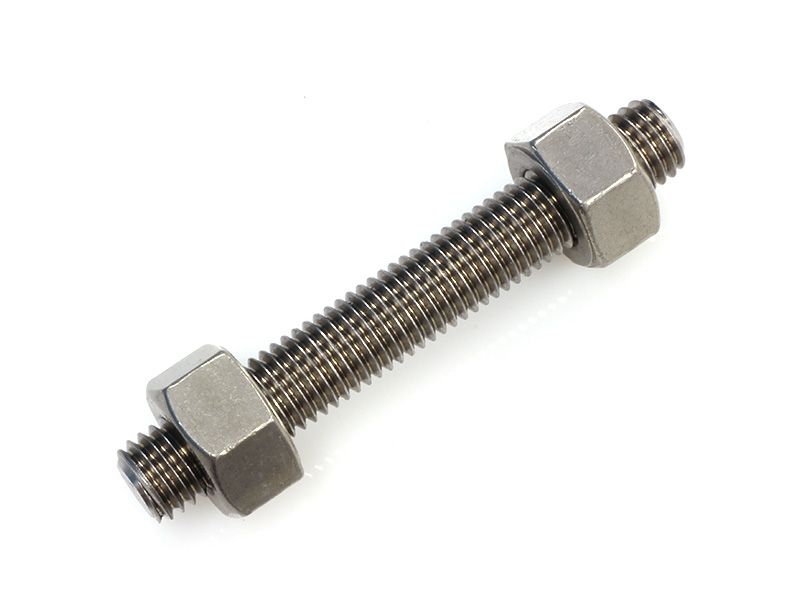

1-3/4" B8 Stud Bolt Kit 304 Stainless
- Class 2 AISI 304 strain hardened studs.
- Stud lengths are measured first leading thread to last leading thread.
- All kits are supplied with 2x Gr8 stainless heavy hex nuts.
- ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | 7 - 10 DAYS. Lead times may vary depending on quantity. |
|---|---|
| Diameter / Gauge | 1-3/4" |
| Thread Type | UN8 |
| Bolt / Stud Property | ASTM A193 B8 Class 2 (AISI 304) Strain Hardened |
| Nut Properties | ASTM A194 Gr 8 |
| Material / Finish | Stainless AISI 304 Steel |
| Use for | Petrochemical |
Technical Information
| SKU | Dia. x Length | Finish | Tensile, min [ MPa ] | Yield, min [ MPa ] | Weight [ kg ] |
|---|---|---|---|---|---|
| 1340.0450150 | 1-3/4” x 150mm | AISI 304 | 655 MPa | 515 MPa | 3.572 |
| 1340.0450160 | 1-3/4” x 160mm | AISI 304 | 655 MPa | 515 MPa | 3.682 |
| 1340.0450165 | 1-3/4” x 165mm | AISI 304 | 655 MPa | 515 MPa | 3.737 |
| 1340.0450170 | 1-3/4” x 170mm | AISI 304 | 655 MPa | 515 MPa | 3.792 |
| 1340.0450180 | 1-3/4” x 180mm | AISI 304 | 655 MPa | 515 MPa | 3.902 |
| 1340.0450185 | 1-3/4” x 185mm | AISI 304 | 655 MPa | 515 MPa | 3.957 |
| 1340.0450190 | 1-3/4” x 190mm | AISI 304 | 655 MPa | 515 MPa | 4.012 |
| 1340.0450195 | 1-3/4” x 195mm | AISI 304 | 655 MPa | 515 MPa | 4.067 |
| 1340.0450200 | 1-3/4” x 200mm | AISI 304 | 655 MPa | 515 MPa | 4.123 |
| 1340.0450210 | 1-3/4” x 210mm | AISI 304 | 655 MPa | 515 MPa | 4.233 |
| 1340.0450215 | 1-3/4” x 215mm | AISI 304 | 655 MPa | 515 MPa | 4.288 |
| 1340.0450220 | 1-3/4” x 220mm | AISI 304 | 655 MPa | 515 MPa | 4.343 |
| 1340.0450230 | 1-3/4” x 230mm | AISI 304 | 655 MPa | 515 MPa | 4.453 |
| 1340.0450235 | 1-3/4” x 235mm | AISI 304 | 655 MPa | 515 MPa | 4.508 |
| 1340.0450240 | 1-3/4” x 240mm | AISI 304 | 655 MPa | 515 MPa | 4.563 |
| 1340.0450250 | 1-3/4” x 250mm | AISI 304 | 655 MPa | 515 MPa | 4.673 |
| 1340.0450255 | 1-3/4” x 255mm | AISI 304 | 655 MPa | 515 MPa | 4.728 |
| 1340.0450260 | 1-3/4” x 260mm | AISI 304 | 655 MPa | 515 MPa | 4.783 |
| 1340.0450265 | 1-3/4” x 265mm | AISI 304 | 655 MPa | 515 MPa | 4.838 |
| 1340.0450275 | 1-3/4” x 275mm | AISI 304 | 655 MPa | 515 MPa | 4.948 |
| 1340.0450280 | 1-3/4” x 280mm | AISI 304 | 655 MPa | 515 MPa | 5.004 |
| 1340.0450285 | 1-3/4” x 285mm | AISI 304 | 655 MPa | 515 MPa | 5.059 |
| 1340.0450290 | 1-3/4” x 290mm | AISI 304 | 655 MPa | 515 MPa | 5.114 |
| 1340.0450300 | 1-3/4” x 300mm | AISI 304 | 655 MPa | 515 MPa | 5.224 |
| 1340.0450305 | 1-3/4” x 305mm | AISI 304 | 655 MPa | 515 MPa | 5.279 |
| 1340.0450310 | 1-3/4” x 310mm | AISI 304 | 655 MPa | 515 MPa | 5.334 |
| 1340.0450320 | 1-3/4” x 320mm | AISI 304 | 655 MPa | 515 MPa | 5.444 |
| 1340.0450325 | 1-3/4” x 325mm | AISI 304 | 655 MPa | 515 MPa | 5.499 |
| 1340.0450330 | 1-3/4” x 330mm | AISI 304 | 655 MPa | 515 MPa | 5.554 |
| 1340.0450335 | 1-3/4” x 335mm | AISI 304 | 655 MPa | 515 MPa | 5.609 |
| 1340.0450345 | 1-3/4” x 345mm | AISI 304 | 655 MPa | 515 MPa | 5.719 |
| 1340.0450350 | 1-3/4” x 350mm | AISI 304 | 655 MPa | 515 MPa | 5.774 |
| 1340.0450355 | 1-3/4” x 355mm | AISI 304 | 655 MPa | 515 MPa | 5.830 |
| 1340.0450360 | 1-3/4” x 360mm | AISI 304 | 655 MPa | 515 MPa | 5.885 |
| 1340.0450370 | 1-3/4” x 370mm | AISI 304 | 655 MPa | 515 MPa | 5.995 |
| 1340.0450375 | 1-3/4” x 375mm | AISI 304 | 655 MPa | 515 MPa | 6.050 |
| 1340.0450380 | 1-3/4” x 380mm | AISI 304 | 655 MPa | 515 MPa | 6.105 |
| 1340.0450385 | 1-3/4” x 385mm | AISI 304 | 655 MPa | 515 MPa | 6.160 |
| 1340.0450395 | 1-3/4” x 395mm | AISI 304 | 655 MPa | 515 MPa | 6.270 |
| 1340.0450400 | 1-3/4” x 400mm | AISI 304 | 655 MPa | 515 MPa | 6.325 |
| 1340.0450405 | 1-3/4” x 405mm | AISI 304 | 655 MPa | 515 MPa | 6.380 |
| 1340.0450415 | 1-3/4” x 415mm | AISI 304 | 655 MPa | 515 MPa | 6.490 |
| 1340.0450420 | 1-3/4” x 420mm | AISI 304 | 655 MPa | 515 MPa | 6.545 |
| 1340.0450425 | 1-3/4” x 425mm | AISI 304 | 655 MPa | 515 MPa | 6.600 |
| 1340.0450430 | 1-3/4” x 430mm | AISI 304 | 655 MPa | 515 MPa | 6.655 |
| 1340.0450440 | 1-3/4” x 440mm | AISI 304 | 655 MPa | 515 MPa | 6.766 |
| 1340.0450445 | 1-3/4” x 445mm | AISI 304 | 655 MPa | 515 MPa | 6.821 |
| 1340.0450450 | 1-3/4” x 450mm | AISI 304 | 655 MPa | 515 MPa | 6.876 |
| 1340.0450455 | 1-3/4” x 455mm | AISI 304 | 655 MPa | 515 MPa | 6.931 |
| 1340.0450465 | 1-3/4” x 465mm | AISI 304 | 655 MPa | 515 MPa | 7.041 |
| 1340.0450470 | 1-3/4” x 470mm | AISI 304 | 655 MPa | 515 MPa | 7.096 |
| 1340.0450475 | 1-3/4” x 475mm | AISI 304 | 655 MPa | 515 MPa | 7.151 |
| 1340.0450485 | 1-3/4” x 485mm | AISI 304 | 655 MPa | 515 MPa | 7.261 |
| 1340.0450490 | 1-3/4” x 490mm | AISI 304 | 655 MPa | 515 MPa | 7.316 |
| 1340.0450495 | 1-3/4” x 495mm | AISI 304 | 655 MPa | 515 MPa | 7.371 |
| 1340.0450500 | 1-3/4” x 500mm | AISI 304 | 655 MPa | 515 MPa | 7.426 |
| 1340.0450510 | 1-3/4” x 510mm | AISI 304 | 655 MPa | 515 MPa | 7.536 |
