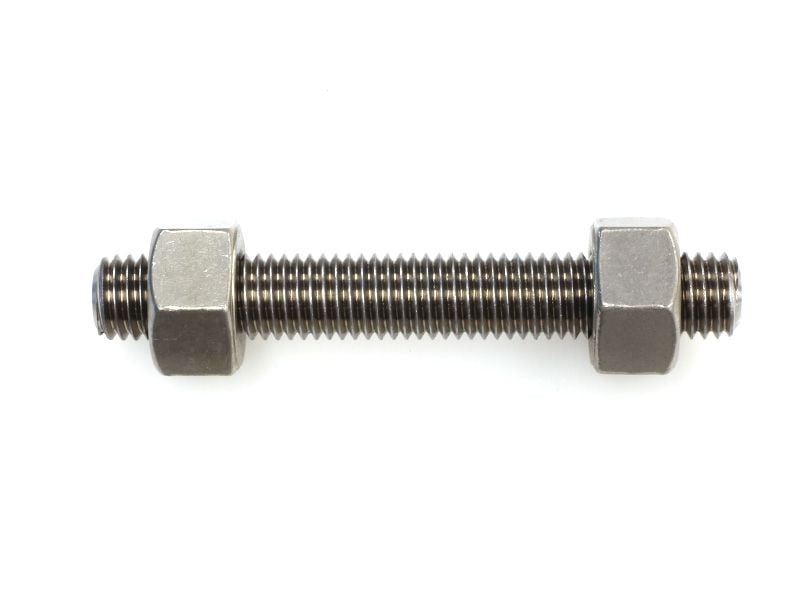

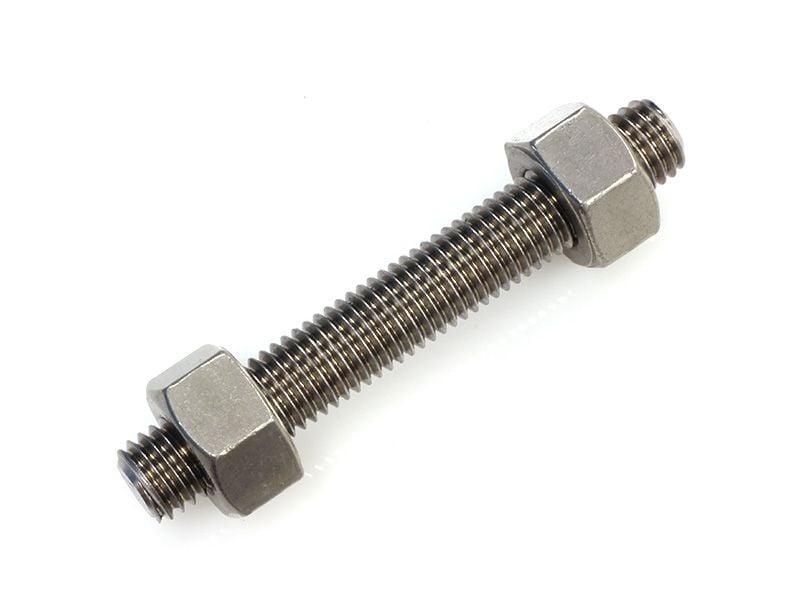

1/2" UNC B8M Class 2 Stud Bolt Kit A193/A194

  • Home
  • 1/2" B8M Stud Bolt Kit 316 Stainless

1/2" B8M Stud Bolt Kit 316 Stainless

  • Class 2 AISI 316 strain hardened studs.
  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2x Gr8M stainless heavy hex nuts.
  • ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
SKU 6B8MSBNUC212
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge 1/2"
Thread Type UNC
Bolt / Stud Property ASTM A193 B8M Class 2 (AISI 316) Strain Hardened
Nut Properties ASTM A194 Gr 8M
Material / Finish Stainless AISI 316 Steel
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] Weight [ kg ]
1360.0120050 1/2” x 50 mm AISI 316 760 MPa 655 MPa 0.1
1360.0120060 1/2” x 60 mm AISI 316 760 MPa 655 MPa 0.108
1360.0120065 1/2” x 65 mm AISI 316 760 MPa 655 MPa 0.112
1360.0120070 1/2” x 70 mm AISI 316 760 MPa 655 MPa 0.116
1360.0120075 1/2” x 75 mm AISI 316 760 MPa 655 MPa 0.12
1360.0120080 1/2” x 80 mm AISI 316 760 MPa 655 MPa 0.124
1360.0120090 1/2” x 90 mm AISI 316 760 MPa 655 MPa 0.132
1360.0120095 1/2” x 95 mm AISI 316 760 MPa 655 MPa 0.136
1360.0120100 1/2” x 100 mm AISI 316 760 MPa 655 MPa 0.14
1360.0120110 1/2” x 110 mm AISI 316 760 MPa 655 MPa 0.148
1360.0120115 1/2” x 115 mm AISI 316 760 MPa 655 MPa 0.152
1360.0120120 1/2” x 120 mm AISI 316 760 MPa 655 MPa 0.156
1360.0120125 1/2” x 125 mm AISI 316 760 MPa 655 MPa 0.16
1360.0120130 1/2” x 130 mm AISI 316 760 MPa 655 MPa 0.164
1360.0120140 1/2” x 140 mm AISI 316 760 MPa 655 MPa 0.172
1360.0120145 1/2” x 145 mm AISI 316 760 MPa 655 MPa 0.176
1360.0120150 1/2” x 150 mm AISI 316 760 MPa 655 MPa 0.18
1360.0120160 1/2” x 160 mm AISI 316 760 MPa 655 MPa 0.188
1360.0120165 1/2” x 165 mm AISI 316 760 MPa 655 MPa 0.192
1360.0120170 1/2” x 170 mm AISI 316 760 MPa 655 MPa 0.196
1360.0120180 1/2” x 180 mm AISI 316 760 MPa 655 MPa 0.204
1360.0120185 1/2” x 185 mm AISI 316 760 MPa 655 MPa 0.208
1360.0120190 1/2” x 190 mm AISI 316 760 MPa 655 MPa 0.212
1360.0120195 1/2” x 195 mm AISI 316 760 MPa 655 MPa 0.216
1360.0120200 1/2” x 200 mm AISI 316 760 MPa 655 MPa 0.22
1360.0120210 1/2” x 210 mm AISI 316 760 MPa 655 MPa 0.228
1360.0120215 1/2” x 215 mm AISI 316 760 MPa 655 MPa 0.232
1360.0120220 1/2” x 220 mm AISI 316 760 MPa 655 MPa 0.236
1360.0120230 1/2” x 230 mm AISI 316 760 MPa 655 MPa 0.244
1360.0120235 1/2” x 235 mm AISI 316 760 MPa 655 MPa 0.248
1360.0120240 1/2” x 240 mm AISI 316 760 MPa 655 MPa 0.252
1360.0120250 1/2” x 250 mm AISI 316 760 MPa 655 MPa 0.26
1360.0120255 1/2” x 255 mm AISI 316 760 MPa 655 MPa 0.264
1360.0120260 1/2” x 260 mm AISI 316 760 MPa 655 MPa 0.268
1360.0120265 1/2” x 265 mm AISI 316 760 MPa 655 MPa 0.272
1360.0120275 1/2” x 275 mm AISI 316 760 MPa 655 MPa 0.28
1360.0120280 1/2” x 280 mm AISI 316 760 MPa 655 MPa 0.284
1360.0120285 1/2” x 285 mm AISI 316 760 MPa 655 MPa 0.288
1360.0120290 1/2” x 290 mm AISI 316 760 MPa 655 MPa 0.292
1360.0120300 1/2” x 300 mm AISI 316 760 MPa 655 MPa 0.3
1360.0120305 1/2” x 305 mm AISI 316 760 MPa 655 MPa 0.303
1360.0120310 1/2” x 310 mm AISI 316 760 MPa 655 MPa 0.315
1360.0120320 1/2” x 320 mm AISI 316 760 MPa 655 MPa 0.315
1360.0120325 1/2” x 325 mm AISI 316 760 MPa 655 MPa 0.319
1360.0120330 1/2” x 330 mm AISI 316 760 MPa 655 MPa 0.323
1360.0120335 1/2” x 335 mm AISI 316 760 MPa 655 MPa 0.327
1360.0120345 1/2” x 345 mm AISI 316 760 MPa 655 MPa 0.335
1360.0120350 1/2” x 350 mm AISI 316 760 MPa 655 MPa 0.339
