1-1/4" UN8 B8 Class 2 Stud Bolt Kit A193/A194

  • Home
  • 1-1/4" B8 Stud Bolt Kit 304 Stainless

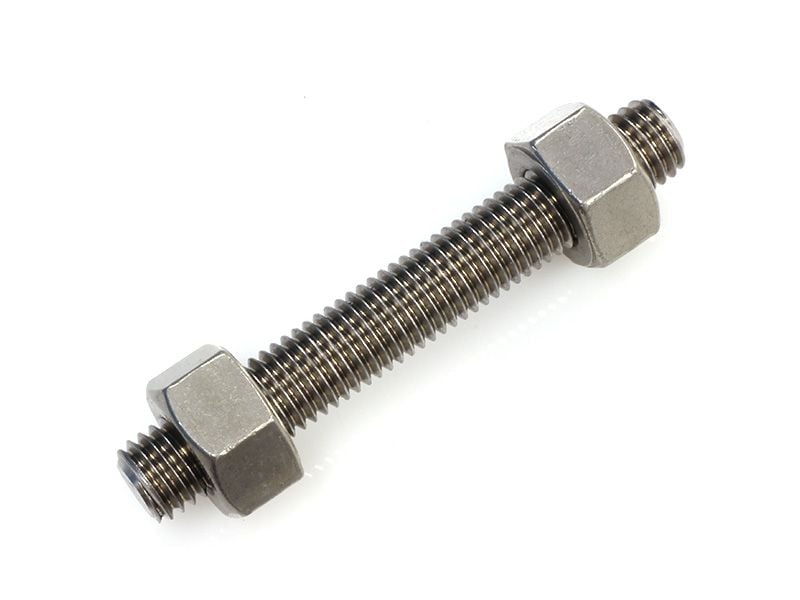

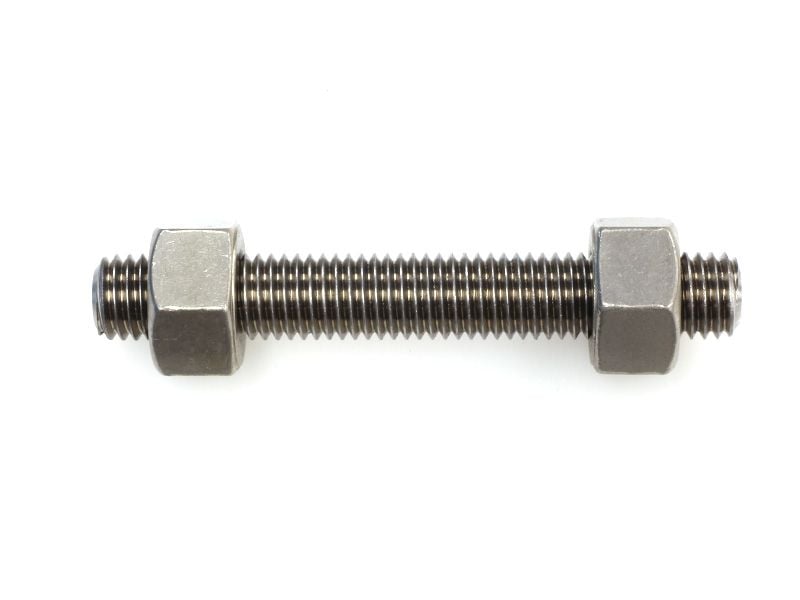

1-1/4" B8 Stud Bolt Kit 304 Stainless

  • Class 2 AISI 304 strain hardened studs.
  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2x Gr8 stainless heavy hex nuts.
  • ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
SKU 6B8SBN8C232
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge 1-1/4"
Thread Type UN8
Bolt / Stud Property ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties ASTM A194 Gr 8
Material / Finish Stainless AISI 304 Steel
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] Weight [ kg ]
1340.0320075 1-1/4” x 75mm AISI 304 725 MPa 450 MPa 1.144
1340.0320080 1-1/4” x 80mm AISI 304 725 MPa 450 MPa 1.171
1340.0320090 1-1/4” x 90mm AISI 304 725 MPa 450 MPa 1.225
1340.0320095 1-1/4” x 95mm AISI 304 725 MPa 450 MPa 1.252
1340.0320100 1-1/4” x 100mm AISI 304 725 MPa 450 MPa 1.279
1340.0320110 1-1/4” x 110mm AISI 304 725 MPa 450 MPa 1.333
1340.0320115 1-1/4” x 115mm AISI 304 725 MPa 450 MPa 1.360
1340.0320120 1-1/4” x 120mm AISI 304 725 MPa 450 MPa 1.387
1340.0320125 1-1/4” x 125mm AISI 304 725 MPa 450 MPa 1.414
1340.0320130 1-1/4” x 130mm AISI 304 725 MPa 450 MPa 1.441
1340.0320140 1-1/4” x 140mm AISI 304 725 MPa 450 MPa 1.495
1340.0320145 1-1/4” x 145mm AISI 304 725 MPa 450 MPa 1.522
1340.0320150 1-1/4” x 150mm AISI 304 725 MPa 450 MPa 1.549
1340.0320160 1-1/4” x 160mm AISI 304 725 MPa 450 MPa 1.603
1340.0320165 1-1/4” x 165mm AISI 304 725 MPa 450 MPa 1.630
1340.0320170 1-1/4” x 170mm AISI 304 725 MPa 450 MPa 1.657
1340.0320180 1-1/4” x 180mm AISI 304 725 MPa 450 MPa 1.710
1340.0320185 1-1/4” x 185mm AISI 304 725 MPa 450 MPa 1.737
1340.0320190 1-1/4” x 190mm AISI 304 725 MPa 450 MPa 1.764
1340.0320195 1-1/4” x 195mm AISI 304 725 MPa 450 MPa 1.791
1340.0320200 1-1/4” x 200mm AISI 304 725 MPa 450 MPa 1.818
1340.0320210 1-1/4” x 210mm AISI 304 725 MPa 450 MPa 1.872
1340.0320215 1-1/4” x 215mm AISI 304 725 MPa 450 MPa 1.899
1340.0320220 1-1/4” x 220mm AISI 304 725 MPa 450 MPa 1.926
1340.0320230 1-1/4” x 230mm AISI 304 725 MPa 450 MPa 1.980
1340.0320235 1-1/4” x 235mm AISI 304 725 MPa 450 MPa 2.007
1340.0320240 1-1/4” x 240mm AISI 304 725 MPa 450 MPa 2.034
1340.0320250 1-1/4” x 250mm AISI 304 725 MPa 450 MPa 2.088
1340.0320255 1-1/4” x 255mm AISI 304 725 MPa 450 MPa 2.115
1340.0320260 1-1/4” x 260mm AISI 304 725 MPa 450 MPa 2.142
1340.0320265 1-1/4” x 265mm AISI 304 725 MPa 450 MPa 2.169
1340.0320275 1-1/4” x 275mm AISI 304 725 MPa 450 MPa 2.223
1340.0320280 1-1/4” x 280mm AISI 304 725 MPa 450 MPa 2.250
1340.0320285 1-1/4” x 285mm AISI 304 725 MPa 450 MPa 2.277
1340.0320290 1-1/4” x 290mm AISI 304 725 MPa 450 MPa 2.304
1340.0320300 1-1/4” x 300mm AISI 304 725 MPa 450 MPa 2.357
1340.0320305 1-1/4” x 305mm AISI 304 725 MPa 450 MPa 2.384
1340.0320310 1-1/4” x 310mm AISI 304 725 MPa 450 MPa 2.411
1340.0320320 1-1/4” x 320mm AISI 304 725 MPa 450 MPa 2.465
1340.0320325 1-1/4” x 325mm AISI 304 725 MPa 450 MPa 2.492
1340.0320330 1-1/4” x 330mm AISI 304 725 MPa 450 MPa 2.519
1340.0320335 1-1/4” x 335mm AISI 304 725 MPa 450 MPa 2.546
1340.0320345 1-1/4” x 345mm AISI 304 725 MPa 450 MPa 2.600
1340.0320350 1-1/4” x 350mm AISI 304 725 MPa 450 MPa 2.627
1340.0320355 1-1/4” x 355mm AISI 304 725 MPa 450 MPa 2.654
1340.0320360 1-1/4” x 360mm AISI 304 725 MPa 450 MPa 2.681
1340.0320370 1-1/4” x 370mm AISI 304 725 MPa 450 MPa 2.735
1340.0320375 1-1/4” x 375mm AISI 304 725 MPa 450 MPa 2.762
1340.0320380 1-1/4” x 380mm AISI 304 725 MPa 450 MPa 2.789
1340.0320385 1-1/4” x 385mm AISI 304 725 MPa 450 MPa 2.816
1340.0320395 1-1/4” x 395mm AISI 304 725 MPa 450 MPa 2.870
1340.0320400 1-1/4” x 400mm AISI 304 725 MPa 450 MPa 2.897
1340.0320405 1-1/4” x 405mm AISI 304 725 MPa 450 MPa 2.924
1340.0320415 1-1/4” x 415mm AISI 304 725 MPa 450 MPa 2.977
1340.0320420 1-1/4” x 420mm AISI 304 725 MPa 450 MPa 3.004
1340.0320425 1-1/4” x 425mm AISI 304 725 MPa 450 MPa 3.031
1340.0320430 1-1/4” x 430mm AISI 304 725 MPa 450 MPa 3.058
1340.0320440 1-1/4” x 440mm AISI 304 725 MPa 450 MPa 3.112
1340.0320445 1-1/4” x 445mm AISI 304 725 MPa 450 MPa 3.139
1340.0320450 1-1/4” x 450mm AISI 304 725 MPa 450 MPa 3.166
1340.0320455 1-1/4” x 455mm AISI 304 725 MPa 450 MPa 3.193
1340.0320485 1-1/4” x 485mm AISI 304 725 MPa 450 MPa 3.355
1340.0320490 1-1/4” x 490mm AISI 304 725 MPa 450 MPa 3.382
1340.0320495 1-1/4” x 495mm AISI 304 725 MPa 450 MPa 3.409
1340.0320500 1-1/4” x 500mm AISI 304 725 MPa 450 MPa 3.436
1340.0320465 1-1/4” x 465mm AISI 304 725 MPa 450 MPa 3.247
1340.0320470 1-1/4” x 470mm AISI 304 725 MPa 450 MPa 3.274
1340.0320475 1-1/4” x 475mm AISI 304 725 MPa 450 MPa 3.301
1340.0320510 1-1/4” x 510mm AISI 304 725 MPa 450 MPa 3.490
