1-1/4" B7 Inorganic Zinc 'Esso Spec' Stud Bolts

Skip to the beginning of the images gallery

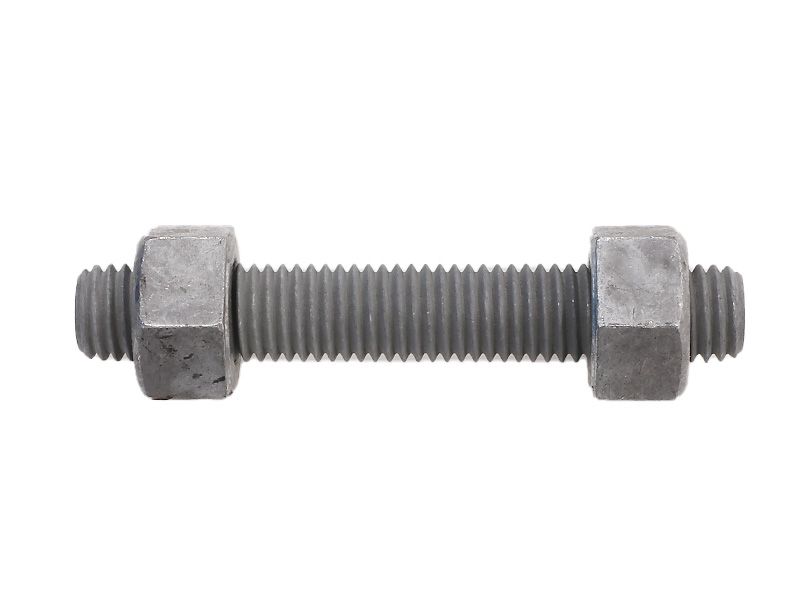

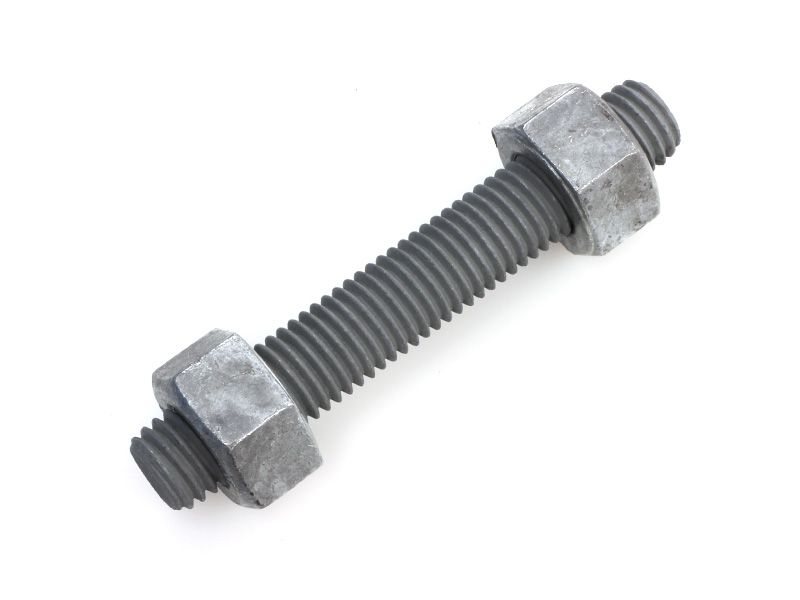

1-1/4" Inorganic Zinc Silicate B7, 2H Stud Bolt Kit

Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.

Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6B7SBN8IZS32

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1-1/4” x 75mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 80mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 90mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 95mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 100mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 110mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 115mm UN8 B7 Studbolt A193, 2H A194 IZS From $0.00
1-1/4” x 120mm UN8 B7 Studbolt A193, 2H A194 IZS From $28.40
1-1/4” x 125mm UN8 B7 Studbolt A193, 2H A194 IZS From $29.00
1-1/4” x 130mm UN8 B7 Studbolt A193, 2H A194 IZS From $29.50
1-1/4” x 140mm UN8 B7 Studbolt A193, 2H A194 IZS From $30.60
1-1/4” x 145mm UN8 B7 Studbolt A193, 2H A194 IZS From $31.25
1-1/4” x 150mm UN8 B7 Studbolt A193, 2H A194 IZS From $31.75
1-1/4” x 160mm UN8 B7 Studbolt A193, 2H A194 IZS From $32.85
1-1/4” x 165mm UN8 B7 Studbolt A193, 2H A194 IZS From $33.45
1-1/4” x 170mm UN8 B7 Studbolt A193, 2H A194 IZS From $34.00
1-1/4” x 180mm UN8 B7 Studbolt A193, 2H A194 IZS From $35.10
1-1/4” x 185mm UN8 B7 Studbolt A193, 2H A194 IZS From $35.75
1-1/4” x 190mm UN8 B7 Studbolt A193, 2H A194 IZS From $36.25
1-1/4” x 195mm UN8 B7 Studbolt A193, 2H A194 IZS From $36.85
1-1/4” x 200mm UN8 B7 Studbolt A193, 2H A194 IZS From $37.40
1-1/4” x 210mm UN8 B7 Studbolt A193, 2H A194 IZS From $38.55
1-1/4” x 215mm UN8 B7 Studbolt A193, 2H A194 IZS From $39.00
1-1/4” x 220mm UN8 B7 Studbolt A193, 2H A194 IZS From $39.65
1-1/4” x 230mm UN8 B7 Studbolt A193, 2H A194 IZS From $40.75
1-1/4” x 235mm UN8 B7 Studbolt A193, 2H A194 IZS From $41.30
1-1/4” x 240mm UN8 B7 Studbolt A193, 2H A194 IZS From $41.85
1-1/4” x 250mm UN8 B7 Studbolt A193, 2H A194 IZS From $42.95
1-1/4” x 255mm UN8 B7 Studbolt A193, 2H A194 IZS From $43.50
1-1/4” x 260mm UN8 B7 Studbolt A193, 2H A194 IZS From $44.15
1-1/4” x 265mm UN8 B7 Studbolt A193, 2H A194 IZS From $44.65
1-1/4” x 275mm UN8 B7 Studbolt A193, 2H A194 IZS From $45.75
1-1/4” x 280mm UN8 B7 Studbolt A193, 2H A194 IZS From $46.35
1-1/4” x 285mm UN8 B7 Studbolt A193, 2H A194 IZS From $46.95
1-1/4” x 290mm UN8 B7 Studbolt A193, 2H A194 IZS From $47.45
1-1/4” x 300mm UN8 B7 Studbolt A193, 2H A194 IZS From $48.55
1-1/4” x 305mm UN8 B7 Studbolt A193, 2H A194 IZS From $49.15
1-1/4” x 310mm UN8 B7 Studbolt A193, 2H A194 IZS From $49.75
1-1/4” x 320mm UN8 B7 Studbolt A193, 2H A194 IZS From $50.85
1-1/4” x 325mm UN8 B7 Studbolt A193, 2H A194 IZS From $51.35
1-1/4” x 330mm UN8 B7 Studbolt A193, 2H A194 IZS From $51.90
1-1/4” x 335mm UN8 B7 Studbolt A193, 2H A194 IZS From $52.50
1-1/4” x 345mm UN8 B7 Studbolt A193, 2H A194 IZS From $53.65
1-1/4” x 350mm UN8 B7 Studbolt A193, 2H A194 IZS From $54.15
1-1/4” x 355mm UN8 B7 Studbolt A193, 2H A194 IZS From $54.75
1-1/4” x 360mm UN8 B7 Studbolt A193, 2H A194 IZS From $55.30
1-1/4” x 370mm UN8 B7 Studbolt A193, 2H A194 IZS From $56.45
1-1/4” x 375mm UN8 B7 Studbolt A193, 2H A194 IZS From $56.95
1-1/4” x 380mm UN8 B7 Studbolt A193, 2H A194 IZS From $57.55
1-1/4” x 385mm UN8 B7 Studbolt A193, 2H A194 IZS From $58.10
1-1/4” x 395mm UN8 B7 Studbolt A193, 2H A194 IZS From $59.25
1-1/4” x 400mm UN8 B7 Studbolt A193, 2H A194 IZS From $59.75
1-1/4” x 405mm UN8 B7 Studbolt A193, 2H A194 IZS From $60.40
1-1/4” x 415mm UN8 B7 Studbolt A193, 2H A194 IZS From $61.50
1-1/4” x 420mm UN8 B7 Studbolt A193, 2H A194 IZS From $62.00
1-1/4” x 425mm UN8 B7 Studbolt A193, 2H A194 IZS From $62.65
1-1/4” x 430mm UN8 B7 Studbolt A193, 2H A194 IZS From $63.15
1-1/4” x 440mm UN8 B7 Studbolt A193, 2H A194 IZS From $64.25
1-1/4” x 445mm UN8 B7 Studbolt A193, 2H A194 IZS From $64.80
1-1/4” x 450mm UN8 B7 Studbolt A193, 2H A194 IZS From $65.40
1-1/4” x 455mm UN8 B7 Studbolt A193, 2H A194 IZS From $65.95
1-1/4” x 465mm UN8 B7 Studbolt A193, 2H A194 IZS From $67.05
1-1/4” x 470mm UN8 B7 Studbolt A193, 2H A194 IZS From $67.60
1-1/4” x 475mm UN8 B7 Studbolt A193, 2H A194 IZS From $68.15
1-1/4” x 485mm UN8 B7 Studbolt A193, 2H A194 IZS From $69.30
1-1/4” x 490mm UN8 B7 Studbolt A193, 2H A194 IZS From $69.90
1-1/4” x 495mm UN8 B7 Studbolt A193, 2H A194 IZS From $70.40
1-1/4” x 500mm UN8 B7 Studbolt A193, 2H A194 IZS From $71.05
1-1/4” x 510mm UN8 B7 Studbolt A193, 2H A194 IZS From $72.15

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	1-1/4"
Thread Type	UN8
Bolt / Stud Property	ASTM A193 B7
Nut Properties	ASTM A194 Gr 2H
Material / Finish	Inorganic Zinc Silicate (IZS)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1282.0320075	1-1/4” x 75 mm	IZS	860 MPa	720 MPa
1282.0320080	1-1/4” x 80 mm	IZS	860 MPa	720 MPa
1282.0320090	1-1/4” x 90 mm	IZS	860 MPa	720 MPa
1282.0320095	1-1/4” x 95 mm	IZS	860 MPa	720 MPa
1282.0320100	1-1/4” x 100 mm	IZS	860 MPa	720 MPa
1282.0320110	1-1/4” x 110 mm	IZS	860 MPa	720 MPa
1282.0320115	1-1/4” x 115 mm	IZS	860 MPa	720 MPa
1282.0320120	1-1/4” x 120 mm	IZS	860 MPa	720 MPa
1282.0320125	1-1/4” x 125 mm	IZS	860 MPa	720 MPa
1282.0320130	1-1/4” x 130 mm	IZS	860 MPa	720 MPa
1282.0320140	1-1/4” x 140 mm	IZS	860 MPa	720 MPa
1282.0320145	1-1/4” x 145 mm	IZS	860 MPa	720 MPa
1282.0320150	1-1/4” x 150 mm	IZS	860 MPa	720 MPa
1282.0320160	1-1/4” x 160 mm	IZS	860 MPa	720 MPa
1282.0320165	1-1/4” x 165 mm	IZS	860 MPa	720 MPa
1282.0320170	1-1/4” x 170 mm	IZS	860 MPa	720 MPa
1282.0320180	1-1/4” x 180 mm	IZS	860 MPa	720 MPa
1282.0320185	1-1/4” x 185 mm	IZS	860 MPa	720 MPa
1282.0320190	1-1/4” x 190 mm	IZS	860 MPa	720 MPa
1282.0320195	1-1/4” x 195 mm	IZS	860 MPa	720 MPa
1282.0320200	1-1/4” x 200 mm	IZS	860 MPa	720 MPa
1282.0320210	1-1/4” x 210 mm	IZS	860 MPa	720 MPa
1282.0320215	1-1/4” x 215 mm	IZS	860 MPa	720 MPa
1282.0320220	1-1/4” x 220 mm	IZS	860 MPa	720 MPa
1282.0320230	1-1/4” x 230 mm	IZS	860 MPa	720 MPa
1282.0320235	1-1/4” x 235 mm	IZS	860 MPa	720 MPa
1282.0320240	1-1/4” x 240 mm	IZS	860 MPa	720 MPa
1282.0320250	1-1/4” x 250 mm	IZS	860 MPa	720 MPa
1282.0320255	1-1/4” x 255 mm	IZS	860 MPa	720 MPa
1282.0320260	1-1/4” x 260 mm	IZS	860 MPa	720 MPa
1282.0320265	1-1/4” x 265 mm	IZS	860 MPa	720 MPa
1282.0320275	1-1/4” x 275 mm	IZS	860 MPa	720 MPa
1282.0320280	1-1/4” x 280 mm	IZS	860 MPa	720 MPa
1282.0320285	1-1/4” x 285 mm	IZS	860 MPa	720 MPa
1282.0320290	1-1/4” x 290 mm	IZS	860 MPa	720 MPa
1282.0320300	1-1/4” x 300 mm	IZS	860 MPa	720 MPa
1282.0320305	1-1/4” x 305 mm	IZS	860 MPa	720 MPa
1282.0320310	1-1/4” x 310 mm	IZS	860 MPa	720 MPa
1282.0320320	1-1/4” x 320 mm	IZS	860 MPa	720 MPa
1282.0320325	1-1/4” x 325 mm	IZS	860 MPa	720 MPa
1282.0320330	1-1/4” x 330 mm	IZS	860 MPa	720 MPa
1282.0320335	1-1/4” x 335 mm	IZS	860 MPa	720 MPa
1282.0320345	1-1/4” x 345 mm	IZS	860 MPa	720 MPa
1282.0320350	1-1/4” x 350 mm	IZS	860 MPa	720 MPa
1282.0320355	1-1/4” x 355 mm	IZS	860 MPa	720 MPa
1282.0320360	1-1/4” x 360 mm	IZS	860 MPa	720 MPa
1282.0320370	1-1/4” x 370 mm	IZS	860 MPa	720 MPa
1282.0320375	1-1/4” x 375 mm	IZS	860 MPa	720 MPa
1282.0320380	1-1/4” x 380 mm	IZS	860 MPa	720 MPa
1282.0320385	1-1/4” x 385 mm	IZS	860 MPa	720 MPa
1282.0320395	1-1/4” x 395 mm	IZS	860 MPa	720 MPa
1282.0320400	1-1/4” x 400 mm	IZS	860 MPa	720 MPa
1282.0320405	1-1/4” x 405 mm	IZS	860 MPa	720 MPa
1282.0320415	1-1/4” x 415 mm	IZS	860 MPa	720 MPa
1282.0320420	1-1/4” x 420 mm	IZS	860 MPa	720 MPa
1282.0320425	1-1/4” x 425 mm	IZS	860 MPa	720 MPa
1282.0320430	1-1/4” x 430 mm	IZS	860 MPa	720 MPa
1282.0320440	1-1/4” x 440 mm	IZS	860 MPa	720 MPa
1282.0320445	1-1/4” x 445 mm	IZS	860 MPa	720 MPa
1282.0320450	1-1/4” x 450 mm	IZS	860 MPa	720 MPa
1282.0320455	1-1/4” x 455 mm	IZS	860 MPa	720 MPa
1282.0320465	1-1/4” x 465 mm	IZS	860 MPa	720 MPa
1282.0320470	1-1/4” x 470 mm	IZS	860 MPa	720 MPa
1282.0320475	1-1/4” x 475 mm	IZS	860 MPa	720 MPa
1282.0320485	1-1/4” x 485 mm	IZS	860 MPa	720 MPa
1282.0320490	1-1/4” x 490 mm	IZS	860 MPa	720 MPa
1282.0320495	1-1/4” x 495 mm	IZS	860 MPa	720 MPa
1282.0320500	1-1/4” x 500 mm	IZS	860 MPa	720 MPa
1282.0320510	1-1/4” x 510 mm	IZS	860 MPa	720 MPa

Documents

1-1/4" UN8 IZS B7/2H Stud Bolt Kit A193/A194

1-1/4" Inorganic Zinc Silicate B7, 2H Stud Bolt Kit
