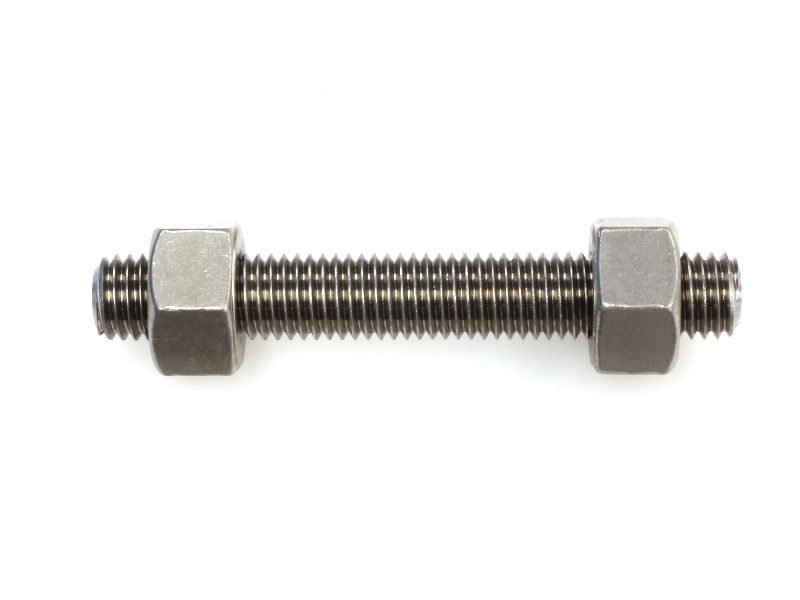

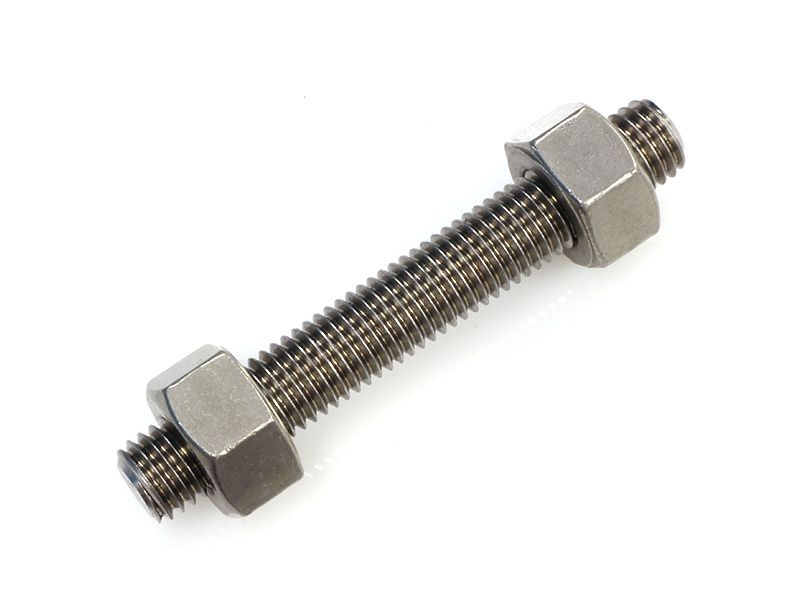

1-1/2" UN8 B8 Class 2 Stud Bolt Kit A193/A194

  • Home
  • 1-1/2" B8 Stud Bolt Kit 304 Stainless

1-1/2" B8 Stud Bolt Kit 304 Stainless

  • Class 2 AISI 304 strain hardened studs.
  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2x Gr8 stainless heavy hex nuts.
  • ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
SKU 6B8SBN8C238
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge 1-1/2"
Thread Type UN8
Bolt / Stud Property ASTM A193 B8 Class 2 (AISI 304) Strain Hardened
Nut Properties ASTM A194 Gr 8
Material / Finish Stainless AISI 304 Steel
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] Weight [ kg ]
1340.0380100 1-1/2” x 100mm AISI 304 690 MPa 345 MPa 2.001
1340.0380110 1-1/2” x 110mm AISI 304 690 MPa 345 MPa 2.085
1340.0380115 1-1/2” x 115mm AISI 304 690 MPa 345 MPa 2.127
1340.0380120 1-1/2” x 120mm AISI 304 690 MPa 345 MPa 2.169
1340.0380125 1-1/2” x 125mm AISI 304 690 MPa 345 MPa 2.211
1340.0380130 1-1/2” x 130mm AISI 304 690 MPa 345 MPa 2.253
1340.0380140 1-1/2” x 140mm AISI 304 690 MPa 345 MPa 2.337
1340.0380145 1-1/2” x 145mm AISI 304 690 MPa 345 MPa 2.379
1340.0380150 1-1/2” x 150mm AISI 304 690 MPa 345 MPa 2.421
1340.0380160 1-1/2” x 160mm AISI 304 690 MPa 345 MPa 2.506
1340.0380165 1-1/2” x 165mm AISI 304 690 MPa 345 MPa 2.548
1340.0380170 1-1/2” x 170mm AISI 304 690 MPa 345 MPa 2.590
1340.0380180 1-1/2” x 180mm AISI 304 690 MPa 345 MPa 2.674
1340.0380185 1-1/2” x 185mm AISI 304 690 MPa 345 MPa 2.716
1340.0380190 1-1/2” x 190mm AISI 304 690 MPa 345 MPa 2.758
1340.0380195 1-1/2” x 195mm AISI 304 690 MPa 345 MPa 2.800
1340.0380200 1-1/2” x 200mm AISI 304 690 MPa 345 MPa 2.842
1340.0380210 1-1/2” x 210mm AISI 304 690 MPa 345 MPa 2.926
1340.0380215 1-1/2” x 215mm AISI 304 690 MPa 345 MPa 2.968
1340.0380220 1-1/2” x 220mm AISI 304 690 MPa 345 MPa 3.010
1340.0380230 1-1/2” x 230mm AISI 304 690 MPa 345 MPa 3.094
1340.0380235 1-1/2” x 235mm AISI 304 690 MPa 345 MPa 3.136
1340.0380240 1-1/2” x 240mm AISI 304 690 MPa 345 MPa 3.178
1340.0380250 1-1/2” x 250mm AISI 304 690 MPa 345 MPa 3.262
1340.0380255 1-1/2” x 255mm AISI 304 690 MPa 345 MPa 3.305
1340.0380260 1-1/2” x 260mm AISI 304 690 MPa 345 MPa 3.347
1340.0380265 1-1/2” x 265mm AISI 304 690 MPa 345 MPa 3.389
1340.0380275 1-1/2” x 275mm AISI 304 690 MPa 345 MPa 3.473
1340.0380280 1-1/2” x 280mm AISI 304 690 MPa 345 MPa 3.515
1340.0380285 1-1/2” x 285mm AISI 304 690 MPa 345 MPa 3.557
1340.0380290 1-1/2” x 290mm AISI 304 690 MPa 345 MPa 3.599
1340.0380300 1-1/2” x 300mm AISI 304 690 MPa 345 MPa 3.683
1340.0380305 1-1/2” x 305mm AISI 304 690 MPa 345 MPa 3.725
1340.0380310 1-1/2” x 310mm AISI 304 690 MPa 345 MPa 3.767
1340.0380320 1-1/2” x 320mm AISI 304 690 MPa 345 MPa 3.851
1340.0380325 1-1/2” x 325mm AISI 304 690 MPa 345 MPa 3.893
1340.0380330 1-1/2” x 330mm AISI 304 690 MPa 345 MPa 3.935
1340.0380335 1-1/2” x 335mm AISI 304 690 MPa 345 MPa 3.977
1340.0380345 1-1/2” x 345mm AISI 304 690 MPa 345 MPa 4.061
1340.0380350 1-1/2” x 350mm AISI 304 690 MPa 345 MPa 4.103
1340.0380355 1-1/2” x 355mm AISI 304 690 MPa 345 MPa 4.146
1340.0380360 1-1/2” x 360mm AISI 304 690 MPa 345 MPa 4.188
1340.0380370 1-1/2” x 370mm AISI 304 690 MPa 345 MPa 4.272
1340.0380375 1-1/2” x 375mm AISI 304 690 MPa 345 MPa 4.314
1340.0380380 1-1/2” x 380mm AISI 304 690 MPa 345 MPa 4.356
1340.0380385 1-1/2” x 385mm AISI 304 690 MPa 345 MPa 4.398
1340.0380395 1-1/2” x 395mm AISI 304 690 MPa 345 MPa 4.482
1340.0380400 1-1/2” x 400mm AISI 304 690 MPa 345 MPa 4.524
1340.0380405 1-1/2” x 405mm AISI 304 690 MPa 345 MPa 4.566
1340.0380415 1-1/2” x 415mm AISI 304 690 MPa 345 MPa 4.650
1340.0380420 1-1/2” x 420mm AISI 304 690 MPa 345 MPa 4.692
1340.0380425 1-1/2” x 425mm AISI 304 690 MPa 345 MPa 4.734
1340.0380430 1-1/2” x 430mm AISI 304 690 MPa 345 MPa 4.776
1340.0380440 1-1/2” x 440mm AISI 304 690 MPa 345 MPa 4.860
1340.0380445 1-1/2” x 445mm AISI 304 690 MPa 345 MPa 4.902
1340.0380450 1-1/2” x 450mm AISI 304 690 MPa 345 MPa 4.944
1340.0380455 1-1/2” x 455mm AISI 304 690 MPa 345 MPa 4.986
1340.0380465 1-1/2” x 465mm AISI 304 690 MPa 345 MPa 5.071
1340.0380470 1-1/2” x 470mm AISI 304 690 MPa 345 MPa 5.113
1340.0380475 1-1/2” x 475mm AISI 304 690 MPa 345 MPa 5.155
1340.0380485 1-1/2” x 485mm AISI 304 690 MPa 345 MPa 5.239
1340.0380490 1-1/2” x 490mm AISI 304 690 MPa 345 MPa 5.281
1340.0380495 1-1/2” x 495mm AISI 304 690 MPa 345 MPa 5.323
1340.0380500 1-1/2” x 500mm AISI 304 690 MPa 345 MPa 5.365
1340.0380510 1-1/2” x 510mm AISI 304 690 MPa 345 MPa 5.449
