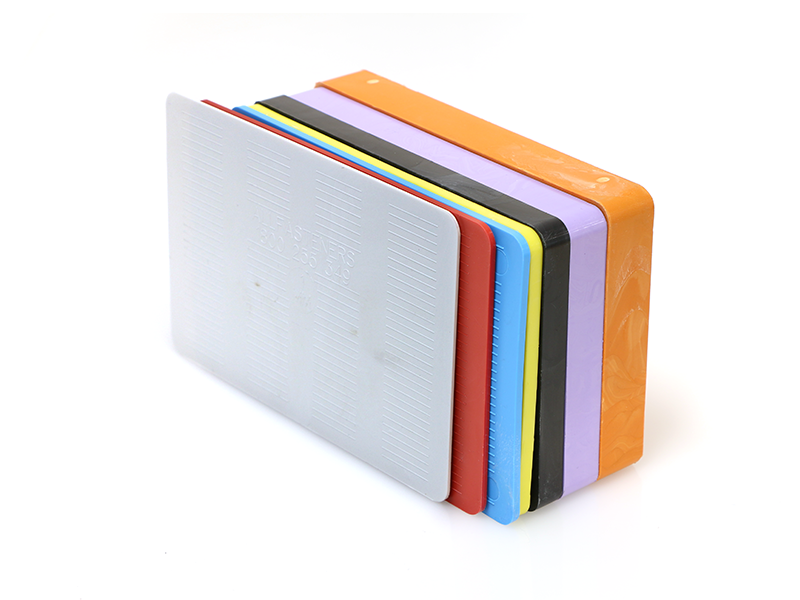

100 x 150mm Pre Cast Panel Shims AS 3850.1:2015
100 x 150mm Pre Cast Panel Shims AS 3850.1:2015
These plastic panel shims are designed to be used under concrete precast or tilt-up panels to gain alignment. This can be achieved with little fuss as shims are colour coded and have a non skid surface. Made from the same polypropylene material as our plastic window packers suitable or precast panels, leveling window and door frames or packing studs in cladding or stumping applications.
Designed and tested to meet working load limit of 20 tonnes. Both full size panel and half size precast panel shims meet the requirements of AS 3850.1:2015 and are made in Australia.
- 100mm x 150mm
- Thickness: 1mm, 2mm, 3mm, 5mm, 10mm, 15mm, 20mm
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|
Technical Information
| SKU | Thickness | Size | Size | Description |
|---|---|---|---|---|
| 11PS100150-1 | 1.0mm White | 100 x 150mm | 100 x 150mm | 1.0mm White Panel Shims |
| 11PS100150-2 | 2.0mm Red | 100 x 150mm | 100 x 150mm | 2.0mm Red Panel Shims |
| 11PS100150-3 | 3.0mm Blue | 100 x 150mm | 100 x 150mm | 3.0mm Blue Panel Shims |
| 11PS100150-5 | 5.0mm Yellow | 100 x 150mm | 100 x 150mm | 5.0mm Yellow Panel Shims |
| 11PS100150-10 | 10.0mm Black | 100 x 150mm | 100 x 150mm | 10.0mm Black Panel Shims |
| 11PS100150-15 | 15.0mm Purple | 100 x 150mm | 100 x 150mm | 15.0mm Purple Panel Shims |
| 11PS100150-20 | 20.0mm Orange | 100 x 150mm | 100 x 150mm | 20.0mm Orange Panel Shims |
Documents
